GTS Technical Manual
14. March 2014 Edition: V1.00/2014 5-21
Copyright © 2014, Diversey Care
05.17.11 vacuum unit & squeegee - shackle - 30_45_V1.00.fm
5.4 Vacuum unit & squeegee
5.4.3 Removing of shackle

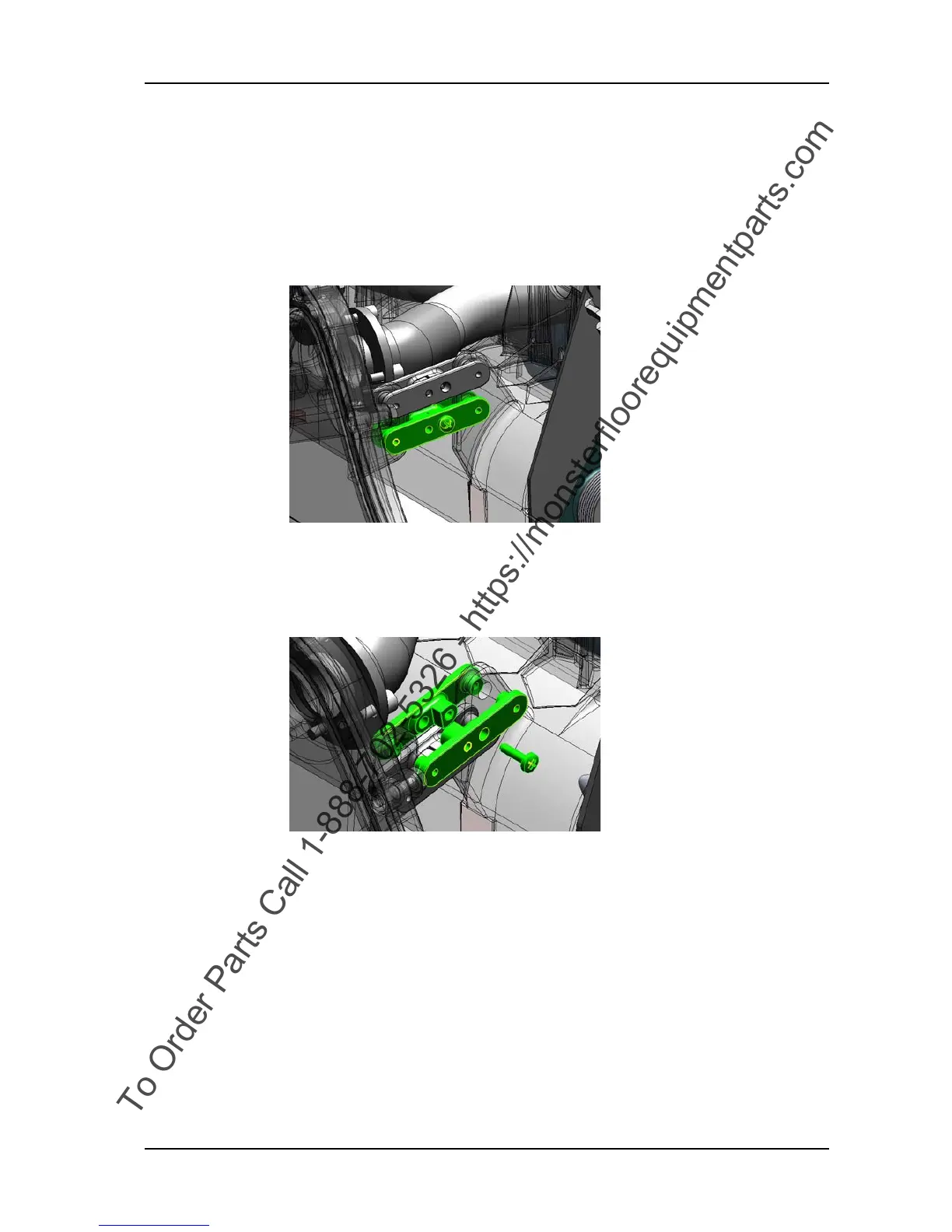

Picture 32: Shackle
• Open fresh water tank according to chapter REMOVING OF FRESH
WATER TANK ASSEMBLY.
• Remove brush cover according to chapter REMOVING OF BRUSH
MOTOR BELT.
Picture 33: Remove shackle
• Remove the 4 screws (30:05/111, 45:06/111) from the shackles
(30:05/110, 45:06/110).
• Remove the 8 shackles from the brush chassis (30:04/125,
45:05/125) and squeegee body (30:05/119, 45:06/119).
