5.3 Brush & Motor
5.3.3 Removing of brush motor

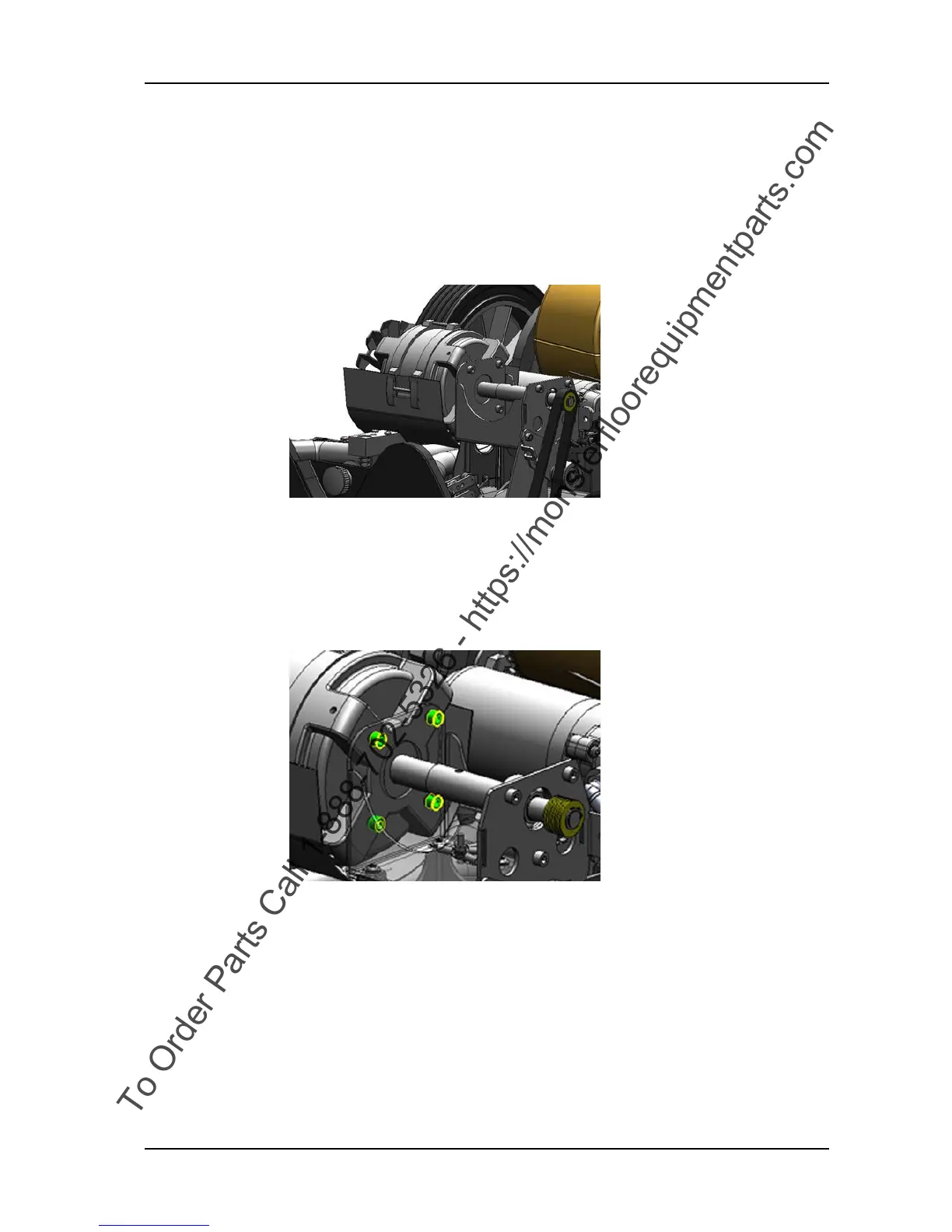

Picture 21: Brush motor
• Open fresh water tank according to chapter REMOVING OF FRESH
WATER TANK ASSEMBLY.
• Remove brush motor belt according to chapter REMOVING OF
BRUSH MOTOR BELT.
• Remove the 4 fixation screws (30:04/105, 45:05/105) of the
brush motor (30:04/117, 45:05/117).
Picture 22: Remove brush motor
• Disconnect brush motor plug.
• Remove the motor by pulling it out of the axle (30:04/111,
45:05/111).
