GTS
Technical Manual
14. March 2014
Edition: V1.00/2014
5-29
Copyright © 2014, Diversey Care
05.72.28 m
angetic va
lve & water o
utlet - pump
- 30_45_V1.0
0.fm
5.5
Magnetic valve &
water outlet
5.5.2
Mounting of pump

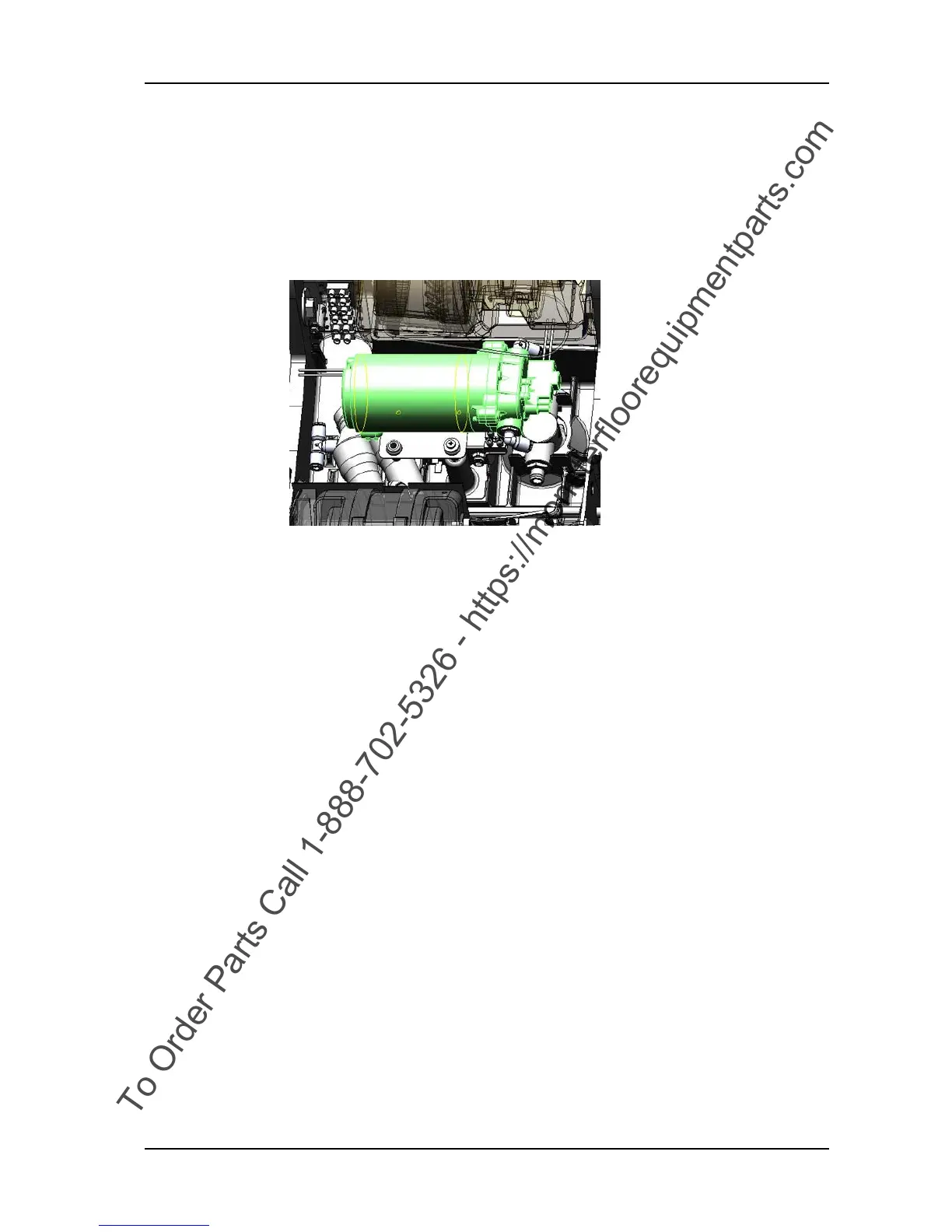

Picture 43: Pump
•
Mount the two hoses onto the fast
connectors of the pump.
•
Connect the cables of the pump.
•
Position the pump onto the chassis.
•
Mount the 3 washers and screws onto the pump.
•
Close fresh water tank according to chapter MO
UNTING OF
FRESH WATER TANK ASSEMBLY.
To Order Parts Call 1-888-702-5326 - https://monsterfloorequipmentparts.com
47
49
Table of Contents
Default Chapter
2
Table of Contents
2
1 Forward
5
Target
5
Summary
6
2 Elementary
7
Health & Safety
8
Esd
8
3 General
10
General Information
11
Part Reference
11
Consumable Supplies
11
Direction Description
11
Power Source
11
Required Material
12
Tools
12
Material
12
4 Technical Data
14
Machine Range
14
Technical Information
15
Machine Profile
15
Technical Data
15
Dimensions and Weights
16
Brush System
17
Suction Power
17
Accessories
17
5 Mechanical
19
Handle
20
Removing of Housing
20
Mounting of Housing
21
Removing of Microswitch
22
Mounting of Microswitch
24
Removing of Switching Bow
25
Mounting of Switching Bow
26
Tank Cover and Tank
27
Removing of Fresh Water Tank Assembly
27
Mounting of Fresh Water Tank Assembly
29
Brush & Motor
31
Removing of Brush Motor Belt
31
Mounting of Brush Motor Belt
32
Removing of Brush Motor
33
Mounting of Brush Motor
34
Removing of Brush Pulley
35
Mounting of Brush Pulley
36
Adjusting of Brush Height
37
Vacuum Unit & Squeegee
38
Removing of Vacuum Motor
38
Mounting of Vacuum Motor
39
Removing of Shackle
40
Mounting of Shackle
41
Removing of Squeegee
42
Mounting of Squeegee
43
Removing of Brush Level Adjustment
44
Mounting of Brush Level Adjustment
46
Magnetic Valve & Water Outlet
47
Removing of Pump
47
Mounting of Pump
48
Removing of Fresh Water Filter
49
Mounting of Fresh Water Filter
50
Removing of Bypass Valve
51
Mounting of Bypass Valve
52
Removing of Valve Unit
53
Mounting of Valve Unit
54
6 Electrical
55
System Architecture
56
Motor Circuit
56
Main Cord & Cable Inlet Inbox
57
Removing of Rockingswitch
57
Mounting of Rockingswitch
58
Rockingswitch Connections
59
Contactor
61
Removing of Contactor
61
Mounting of Contactor
62
Contactor Connections K1/K2
63
Contactor Connections K1
64
Contactor Connections K2
65
Electrical Schematics
66
7 Additional Information
67
Available GTS Newsletter/Instructions
68
8 Revision
69
9 Appendix
71
10 Notes
74
