GTS Technical Manual
14. March 2014 Edition: V1.00/2014 5-28
Copyright © 2014, Diversey Care
05.72.28 mangetic valve & water outlet - pump - 30_45_V1.00.fm
5.5 Magnetic valve & water outlet
5.5.1 Removing of pump

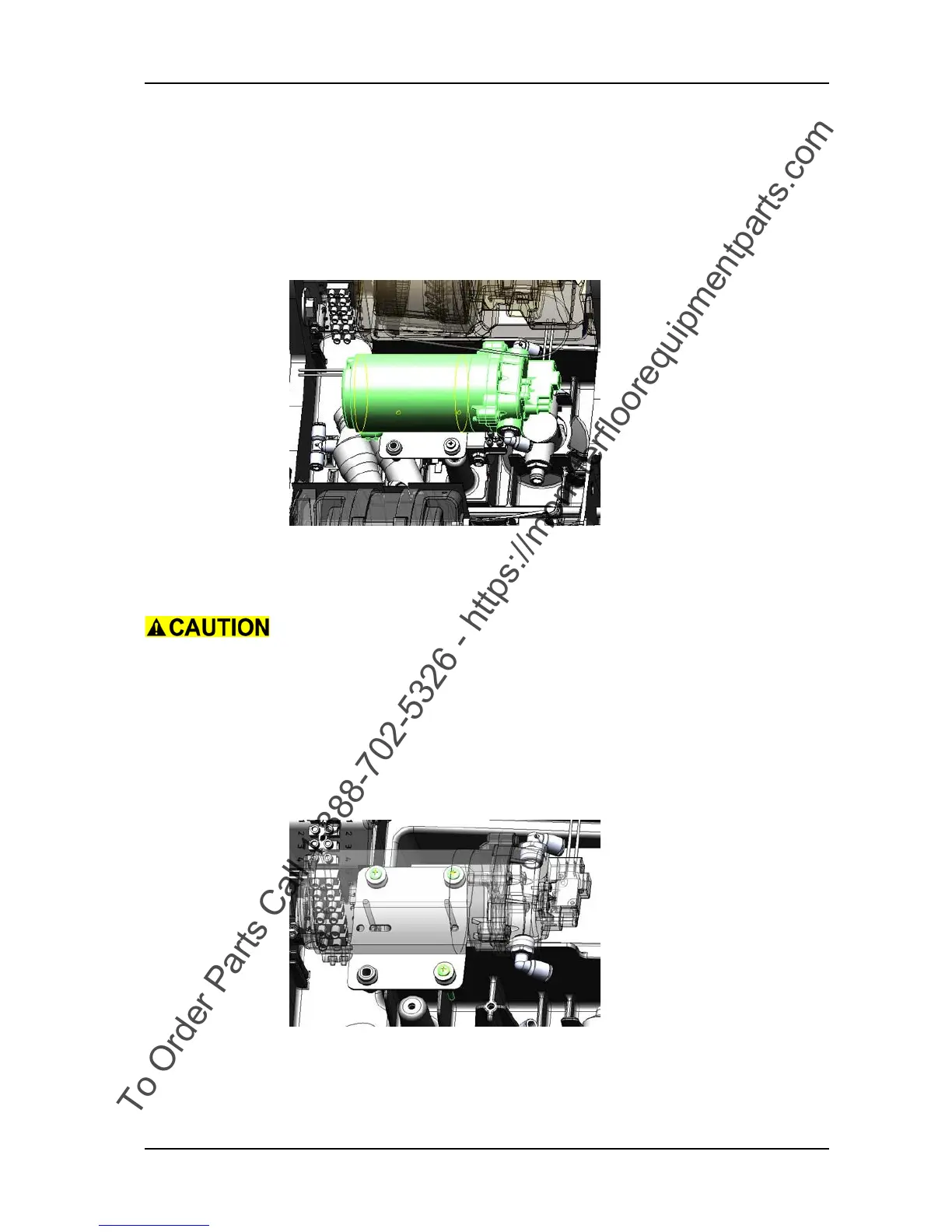

Picture 41: Pump
• Open fresh water tank according to chapter REMOVING OF FRESH
WATER TANK ASSEMBLY.
Ensure that no water is in the fresh water system before you
disconnect the hoses.
Remarks
For a better access to the pump, remove the vacuum motor.
• Remove the 3 screws (30:06/110, 45:07/110) and washers
(30:06/127, 45:07/127) from the pump (30:06/101, 45:07/
101).
Picture 42: Remove pump
• Lift out the pump.
• Disconnect the cables of the pump.
• Remove the two hoses (30:06/116, 45:07/116) and (30:06/117,
45:07/117) from the fast connectors of the pump.
