5.5 Magnetic valve & water outlet
5.5.5 Removing of bypass valve

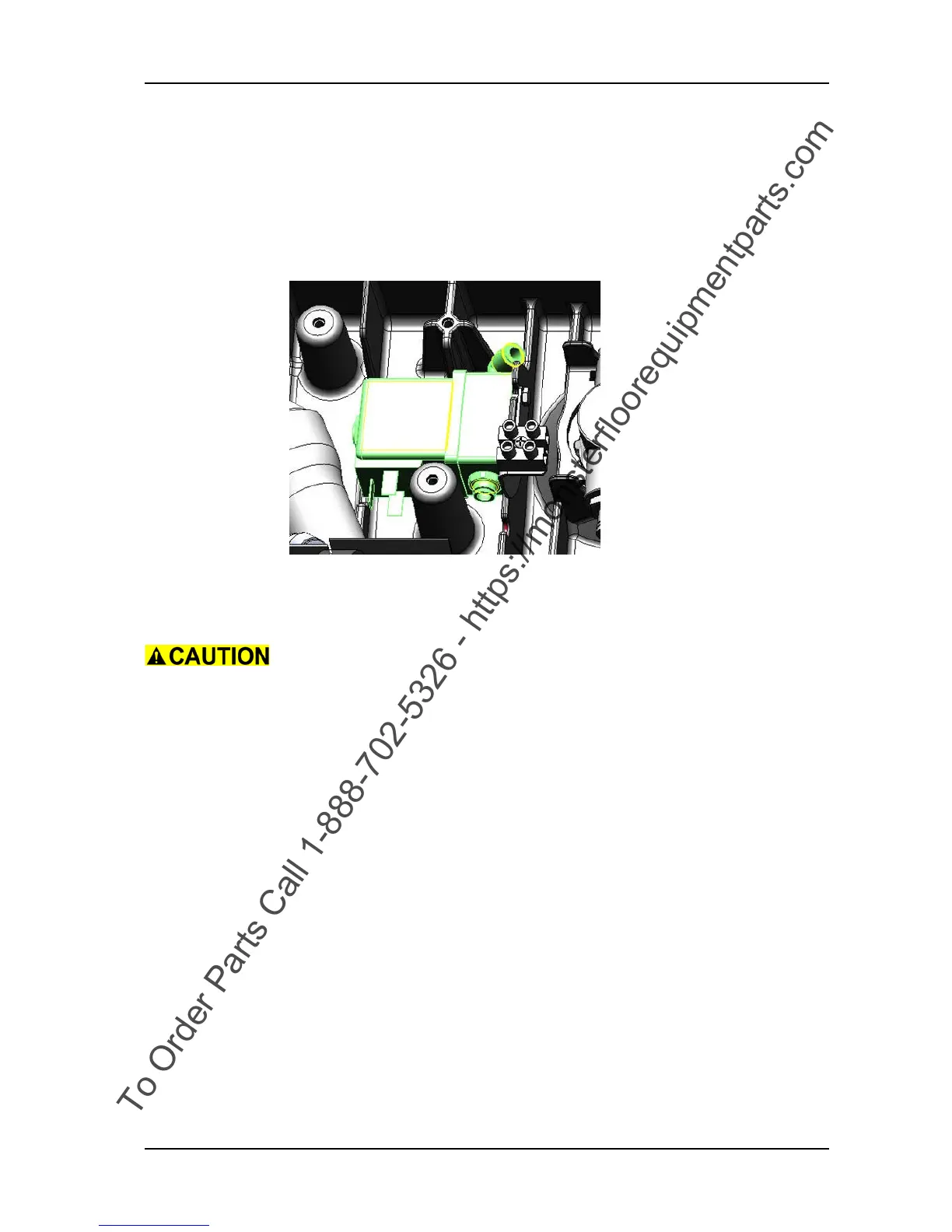

Picture 46: Bypass valve
• Open fresh water tank according to chapter REMOVING OF FRESH
WATER TANK ASSEMBLY.
Ensure that no water is in the fresh water system before you
disconnect the hoses.
Remarks
For a better access to the bypass valve, remove the vacuum motor.
• Remove the pump according to chapter REMOVING OF PUMP.
• Loosen the two fixation screws (30:05/128, 45:06/128) from
the bypass valve (30:06/104, 45:07/104).
• Lift out the bypass valve.
Remarks
The connection block for the vacuum motor is mounted on the screws
of the bypass valve.
• Remove the two hoses (30:06/119, 45:07/119) and (30:06/120,
45:07/120) from the fast connectors of the bypass valve.
• Remove the cable from the magnetic valve.
