GTS Technical Manual
14. March 2014 Edition: V1.00/2014 5-33
Copyright © 2014, Diversey Care
05.72.26 mangetic valve & water outlet - bypass valve - 30_45_V1.00.fm
5.5 Magnetic valve & water outlet
5.5.6 Mounting of bypass valve

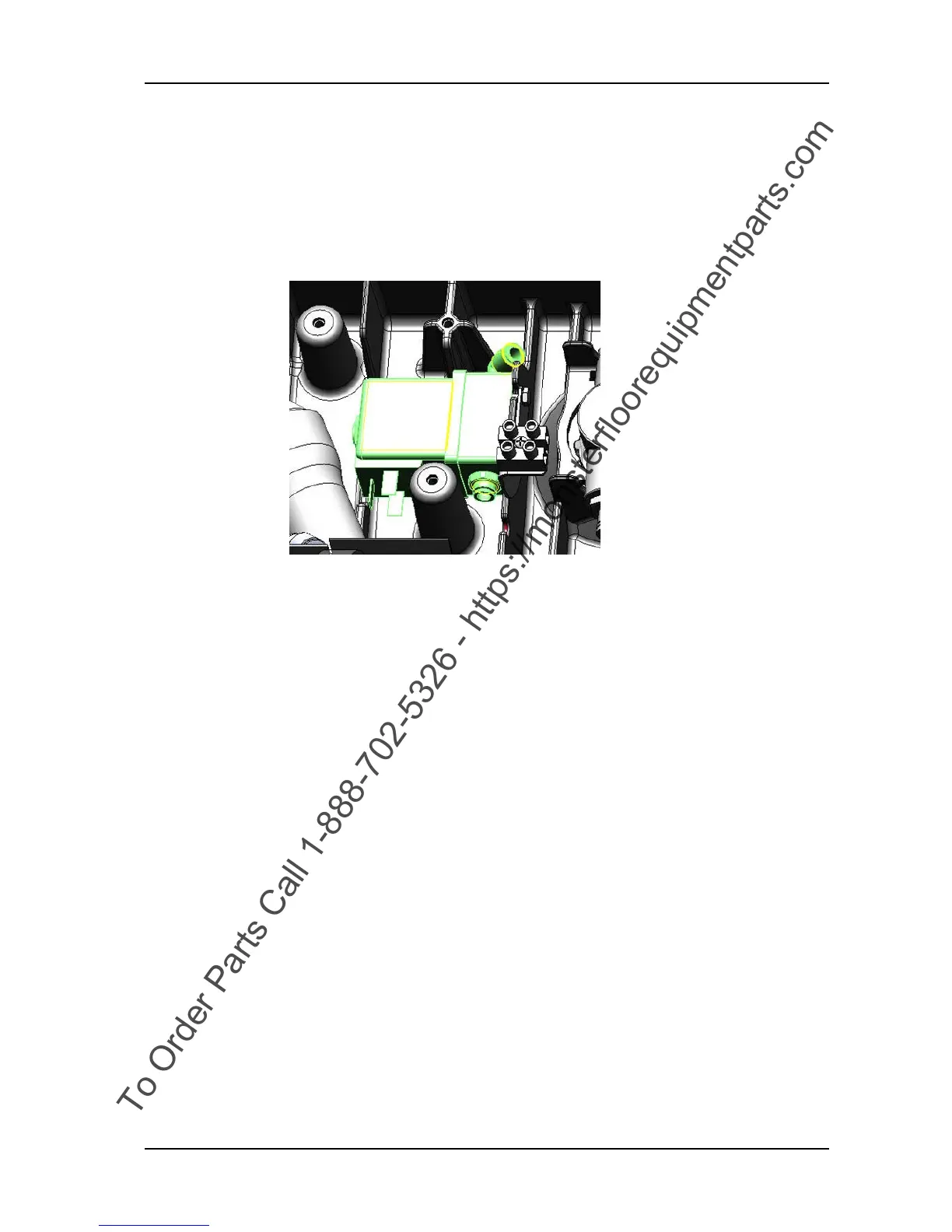

Picture 47: Bypass valve
• Mount the cable from the magnetic valve.
• Mount the two hose onto the fast connectors of the bypass valve.
• Place the bypass valve into the chassis.
• Tighten the two fixation screws of the bypass valve.
• Mount the pump according to chapter MOUNTING OF PUMP.
• Close fresh water tank according to chapter MOUNTING OF
FRESH WATER TANK ASSEMBLY.
