GTS Technical Manual
14. March 2014 Edition: V1.00/2014 5-25
Copyright © 2014, Diversey Care
05.17.13 vacuum unit & squeegee - brush level adjustment - 30_45_V1.00.fm
5.4 Vacuum unit & squeegee
5.4.7 Removing of brush level adjustment

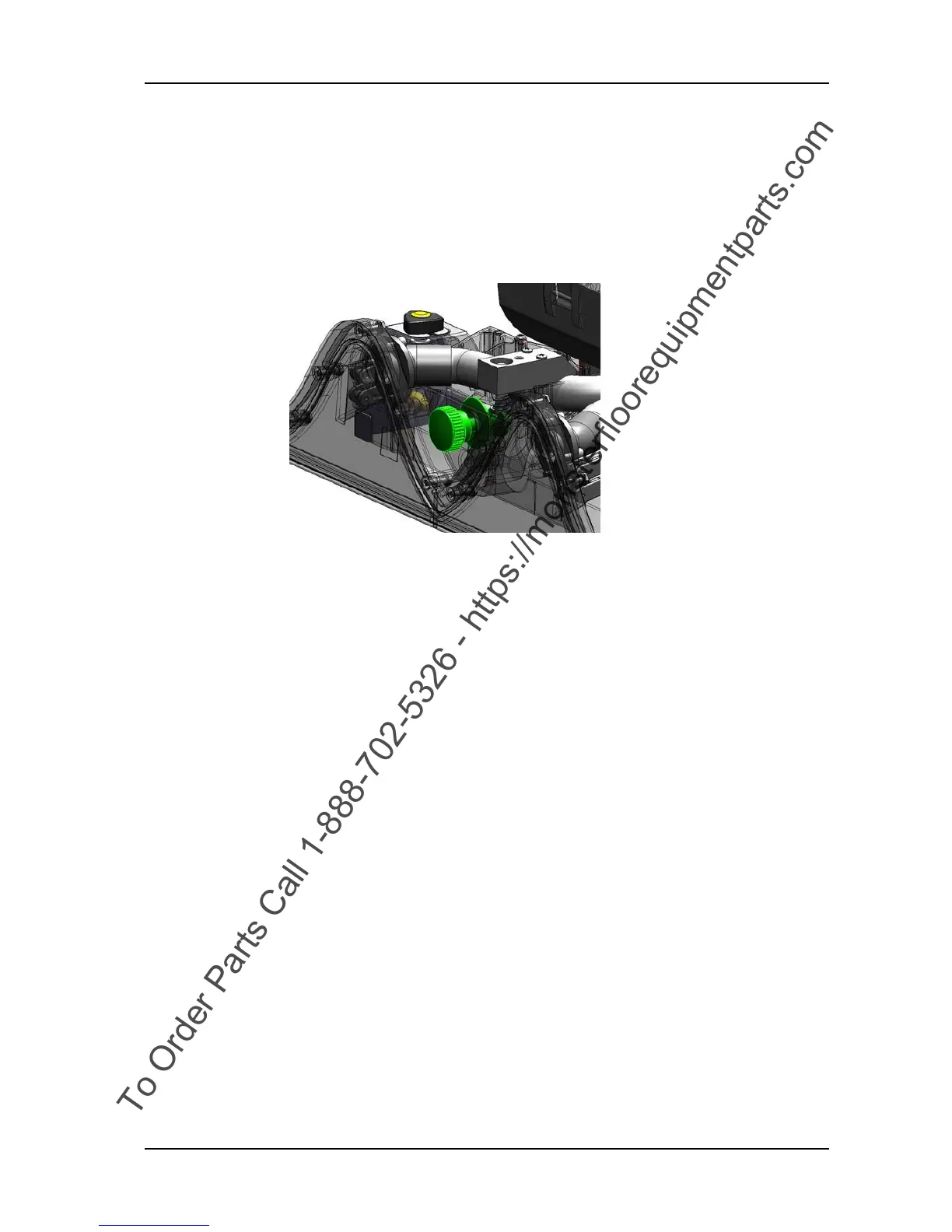

Picture 38: Brush adjustment
• Open fresh water tank according to chapter REMOVING OF FRESH
WATER TANK ASSEMBLY.
• Remove brush cover according to chapter REMOVING OF BRUSH
MOTOR BELT.
• Remove the screw (30:05/112, 45:06/112) and the washer
(30:05/113, 45:06/113).
• Pull of the adjustment plate (30:05/114, 45:06/114) from the
axle (30:05/117, 45:06/117).
• Remove the retaining ring (30:05/115, 45:06/115).
• Remove the disc (30:05/116, 45:06/116) together with the label
(30:05/123, 45:06/123).
• Remove the axle together with the star knob (30:05/121, 45:06/
121).
