GTS Technical Manual
14. March 2014 Edition: V1.00/2014 5-16
Copyright © 2014, Diversey Care
05.58.32 brush & motor - brush pulley - 30_45_V1.00.fm
5.3 Brush & Motor
5.3.5 Removing of brush pulley

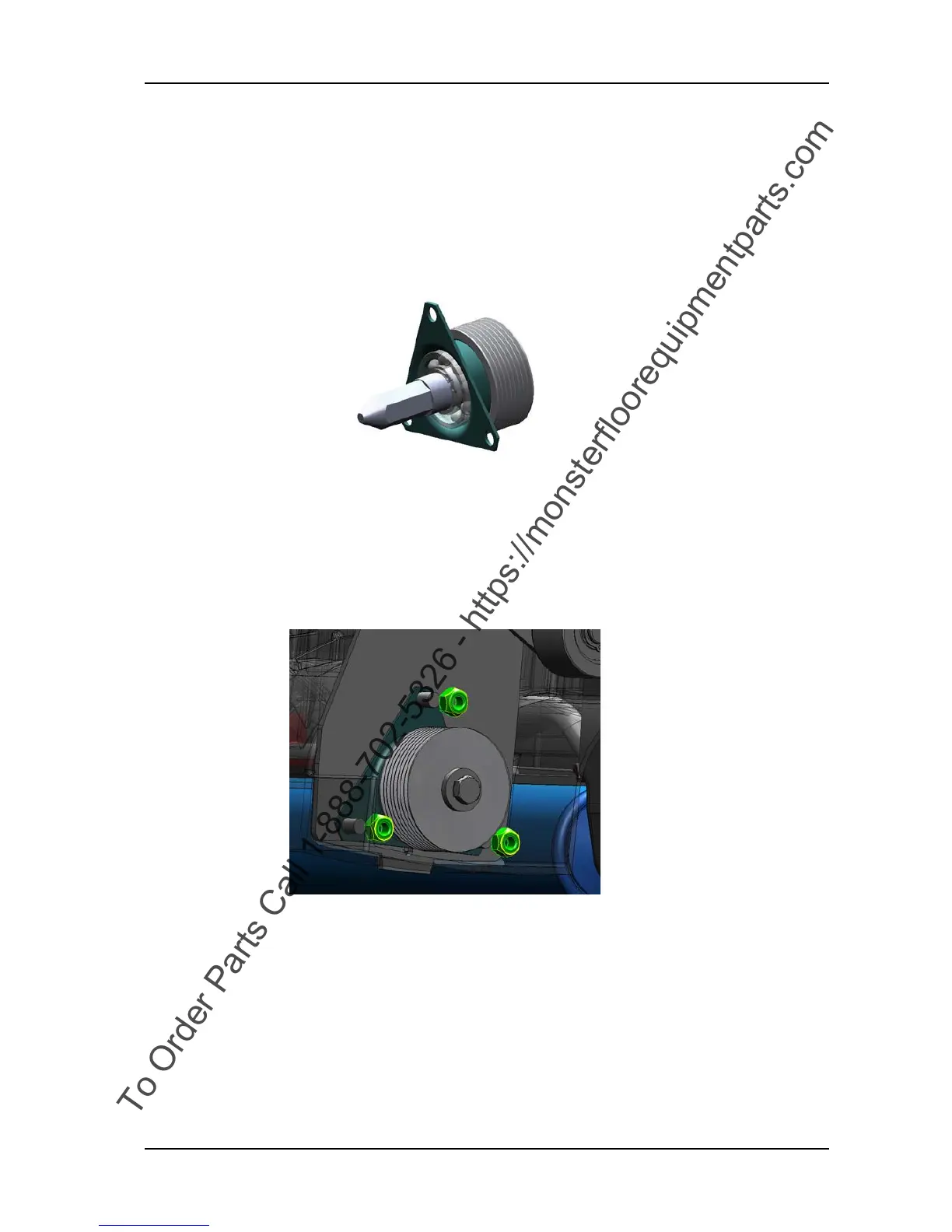

Picture 25: Brush pulley
• Open fresh water tank according to chapter REMOVING OF FRESH
WATER TANK ASSEMBLY.
• Remove brush motor belt according to chapter REMOVING OF
BRUSH MOTOR BELT.
• Remove the 3 self locking nuts (30:04/110, 45:05/110) with a
10mm fork spanner/socket.
Picture 26: Remove brush pulley
• Remove the whole brush pulley assembly.
• According to what you need to exchange, remove the existing
parts from the brush pulley assembly and place it on the new
one.
