6.2 Main cord & cable inlet inbox
6.2.2 Mounting of rockingswitch

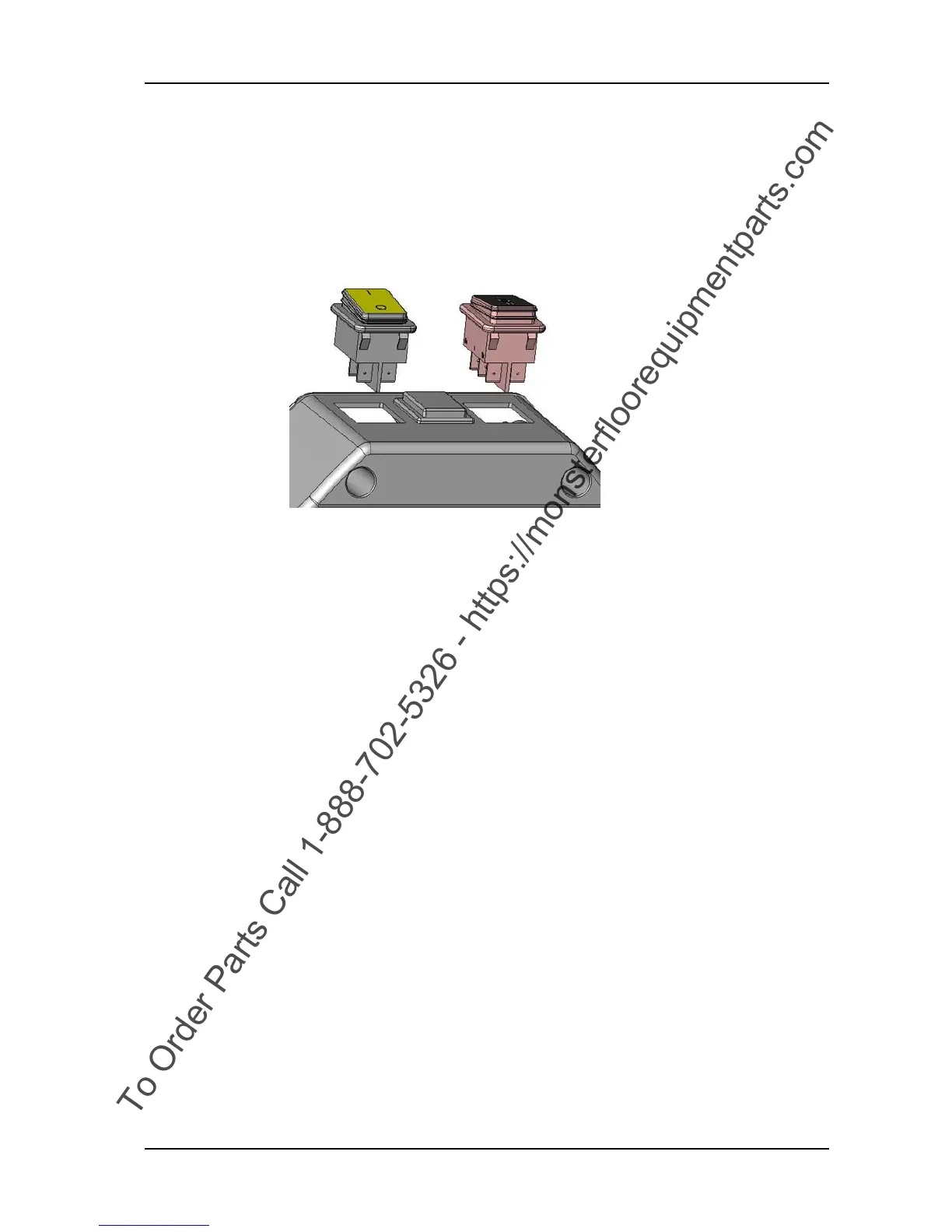

Picture 3: Rockingswitch
• Push the rockingswitch into the housing from the outer side.
Remarks
Make sure that the rockingswitch is correctly positioned and clicks
into the housing.
• Connect the electrical connections to the rockingswitch.
• Mount the housing according to chapter MOUNTING OF
HOUSING in the section mechanical.
