TC Electronic SYSTEM 6000 MKII Algorithm Manual

55
MDX 5.1

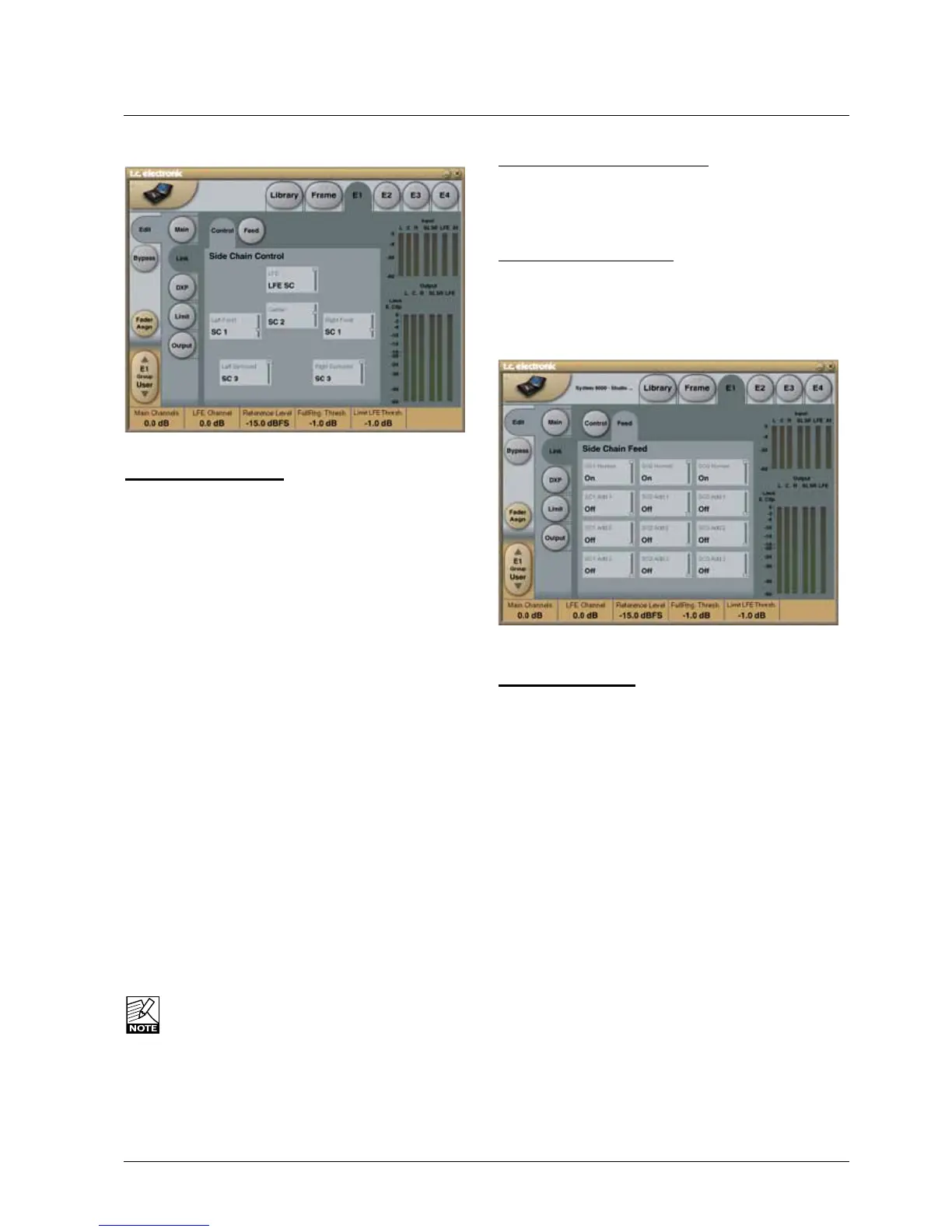

Link - Feed
Side Chain Feed
TheSetup/SCFeedpageholdsparametersspecifying
which Input channels should feed the three Sidechains.
Normal
Range: Off, On
Whenthisparameterissetto“On”theInputchannels
selected to be controlled by the respective sidechain will
also input to the sidechain.
SC1 Add1, SC 2 Add2, SC 3 Add3
Range:Off,LFrMax,RFrMax,CntMax,LSrMax,RSr
Max,ExternMax,LFrSum,RFrSum,CntSum,LSrSum,
RSrSum,ExternSum.
These parameters enable extra channels to be assigned to
the respective Sidechain Input. The extra Sidechain Input
channels will not be processed by the sidechain.
The Sum settings will add the Input to the sidechain,
whereas the Max settings only will contribute to the
sidechain if the level exceeds the other Input channel
levels.
Link - Control
Side Chain Control
(thisdescriptionisidenticaltotheMD5.1explanation)
TheSidechainassignmentpossibilitiesintheMDX5.1are
very comprehensive. Carefully selecting which channels
shouldbecontrolledbywhichSidechains,isjustas
essential as dialing in the correct Threshold and Ratio
values.
It is possible to freely select any or none of three
Sidechains to control each of the main-channels. This also
gives you the option of grouping the channels. In addition
tothis,theLFEchannelhasitsownSidechaincontrol.
Thisenablese.g.settinguptwoMDX5.1algorithmsin
serial setup, while having six individual Sidechains available,
enabling fully individual Sidechain controls of all channels.
AttheFeedpageitispossibletomakeadditionalSidechain
linkInputs,fore.g.havingtheCenter-channelcontributing
totheSidechainInputsofthetwoFrontchannels,tocreate
a more coherent sound from the front-channels.
The illustration above reflects the processing parameter set
toMDX5.1inNormalmode.
Basic operation
At the Control page it is possible to decide which
Sidechains should control which channels. Select any
of three Sidechains to be assigned to any of the five
Main-channels. You can also chose to pass the channels
unprocessedthroughthealgorithm.TheLFEchannel
can be assigned to its own separate Sidechain, or left
unprocessed.
Setting a channel to unprocessed will preserve the
processingdelaythroughthealgorithm,keepingthe
channel time-aligned to the other (processed)
channels.
Side Chain Control
Range - for the five main channels:
• Unprocessed
• SideChain1
• SideChain2
• SideChain3
Range-fortheLFEchannel:
• Unprocessed
• LFE
