TC Electronic SYSTEM 6000 MKII Algorithm Manual

56
MDX 5.1

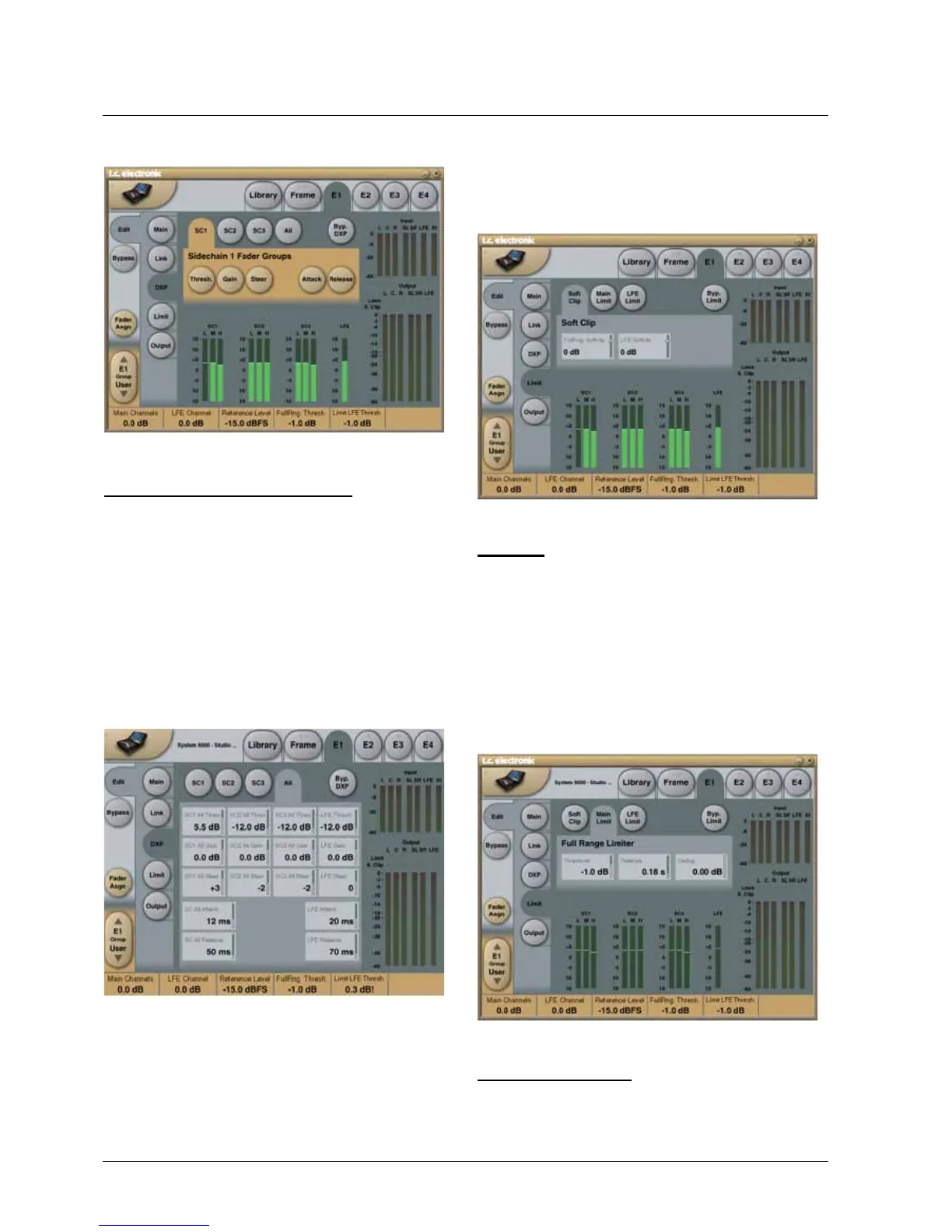

DXP - SC1
Sidechain Fader Groups 1/2/3
The DXP pages reveal separate controls for Sidechain 1-3
plusLFE.ThisallowsfordifferentsettingsfortheCenter
or Surround channels, where speech intelligibility or low
levelambiencetendtogetlost,likewhenafeaturefilmis
re-purposed for broadcast or DVD under domestic listening
conditions.
Ifitisrequiredtoprocessmoreaudiochannelsthan5.1,
Enginescanberuninparalleltocaterfor6.1,7.1,10.2,
12.2orevenhighernumberformats.ParallelEngines
attain perfect phase conservation and resolution, and do
not compromise audio in any way.
DXP - All
The“All”pagegivesandexcellentoverviewofthethree
SideChain parameters.
The All parameter grabs the Sidechain Mid value and
changes the Lo and Hi settings relative to this value. The
Sidechain All Threshold, Gain and Steer all parameter
isalsoperdefaultassignedtoFader4ontheSidechain
pages.
Bypass DXP
Bypass function for the entire DXP processing section
Limit - Soft Clip
SoftClip
Full Range SoftClip
Range:6dBto+3dBtoOff
Softclipper Threshold setting after the Compressor for the
five multiband channels. Threshold is always relative to
0dBFS(NottheReferenceLevel).
LFE SoftClip
Range:6dBto+3dBtoOff
SoftclipperThresholdsettingfortheLFEchannelonly.
Limit - Main Limit
Full Range Limiter
Threshold
Range: -12dB to Off
-6 to OdB in 0.1dB increments
-12to-6in0.5dBincrements
