6B.2 MAINTENANCE
6B.2.1 MAINTENANCE FOR ACTUATOR
(1) Replacing the motor

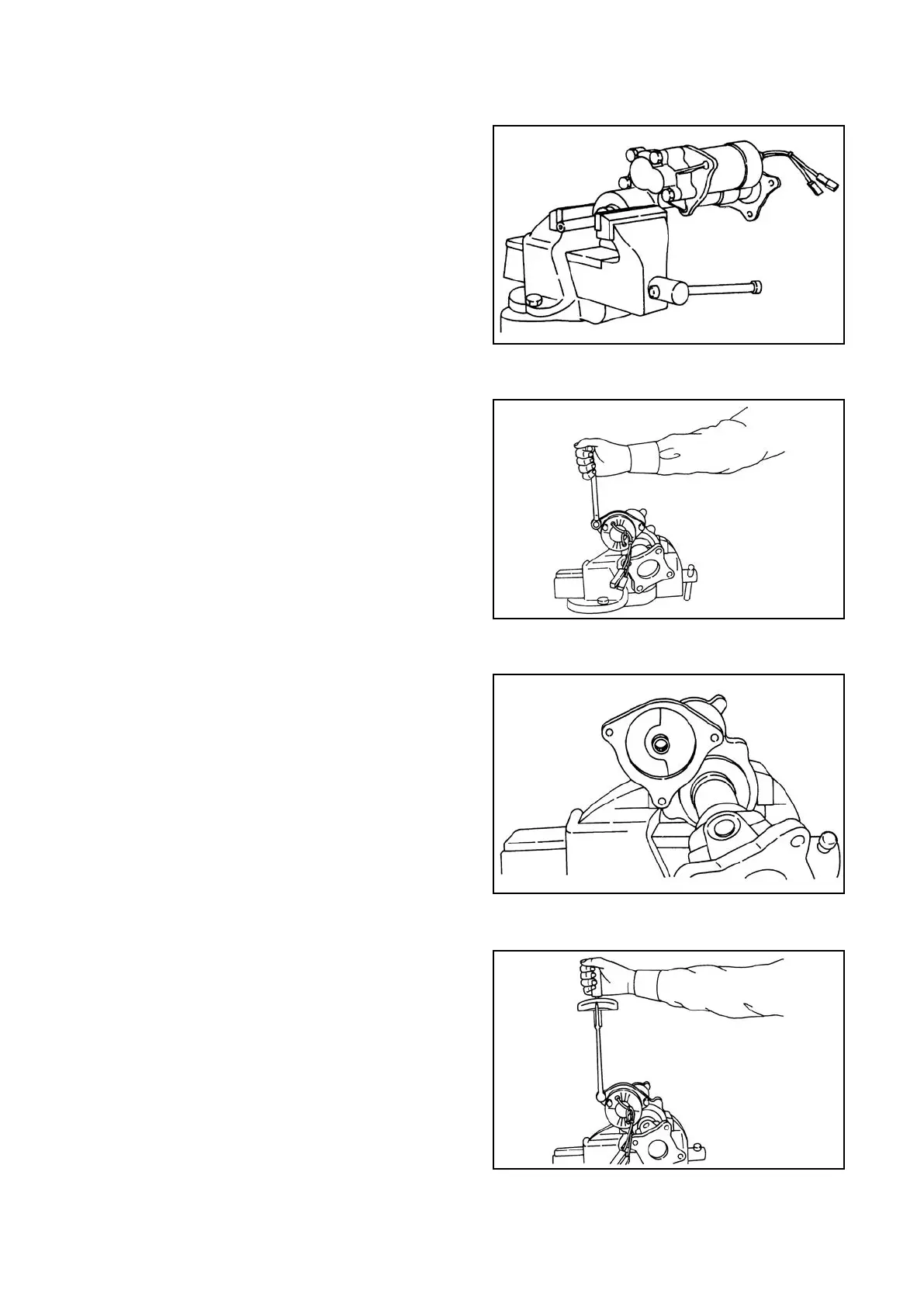

① As shown in Figure 6B.9, securely hold the
actuator assembly by a vise.
Note: Be sure to hold it in a lying position.
② Remove the motor securing bolts, then
remove the motor.
Note: Do not give a strong shock to the motor.
③ Remove the packing from the motor tting
surface.
④ Apply grease to the joint. Install the motor
with a new packing.
Tightening torque: 18.6 to 30.4 N-m
{1.9 to 3.1 kgf-m}
[13.7 to 22.4 lbf-ft]
Fig. 6B.12
Fig. 6B.11
Fig. 6B.10
Fig. 6B.9
6B. STEERING SYSTEM (EPS type)
