TCM FB30-8 - Disassembling Wheel Brake; Maintenance

- 47 -
5.2 MAINTENANCE
This section describes the procedure for disassembling, reassembling and adjusting the wheel
brake and the procedure for adjusting the brake pedal, with the wheel brake and hub removed.

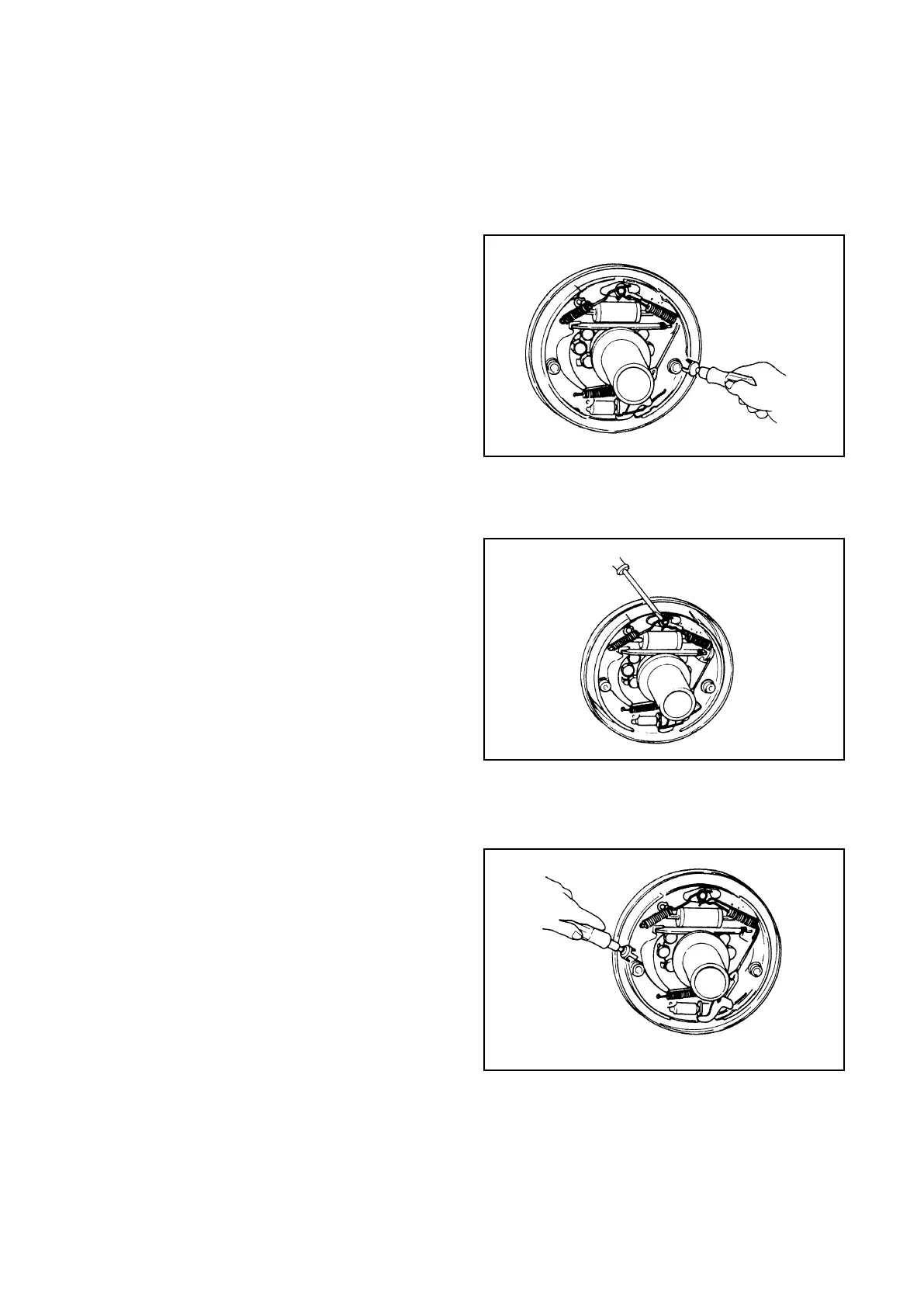

5.2.1 DISASSEMBLING WHEEL BRAKE
(1) Remove the shoe hold-down pin, adjuster
lever, adjuster and spring from the
secondary shoe.
Fig. 5.14
Fig. 5.13
Fig. 5.15
(2) Remove the shoe return spring.
(3) Remove the shoe hold-down spring from
the primary side.
5. BRAKE SYSTEM
