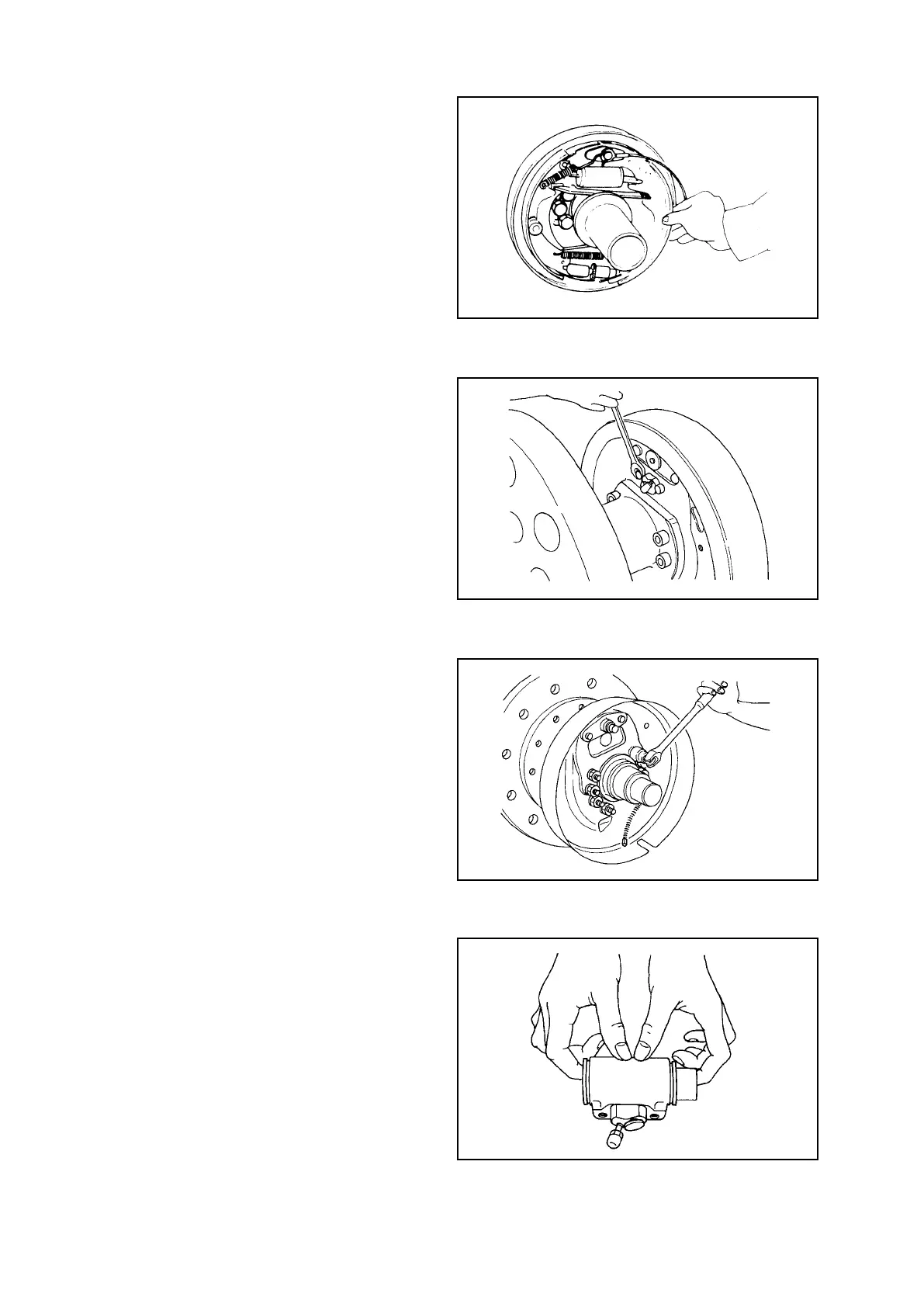

(4) Remove the primary and secondary shoes.
Also remove the adjuster and adjuster
spring at the same time.
Fig. 5.16
Fig. 5.17
Fig. 5.18
Fig. 5.19
(5) Remove the brake pipe from the wheel
cylinder. Remove the bolts securing the
wheel cylinder. Remove the wheel cylinder
from the backing plate.
(6) Remove the E retainer which secures the
parking brake cable to the backing plate.
After that, remove the bolt securing the
backing plate and remove the backing plate
from the axle.
(7) Remove the boot and insert the piston to
remove one of the two wheel cylinders.
Then remove the other wheel cylinder by
pushing with a finger from the opposite
side.
