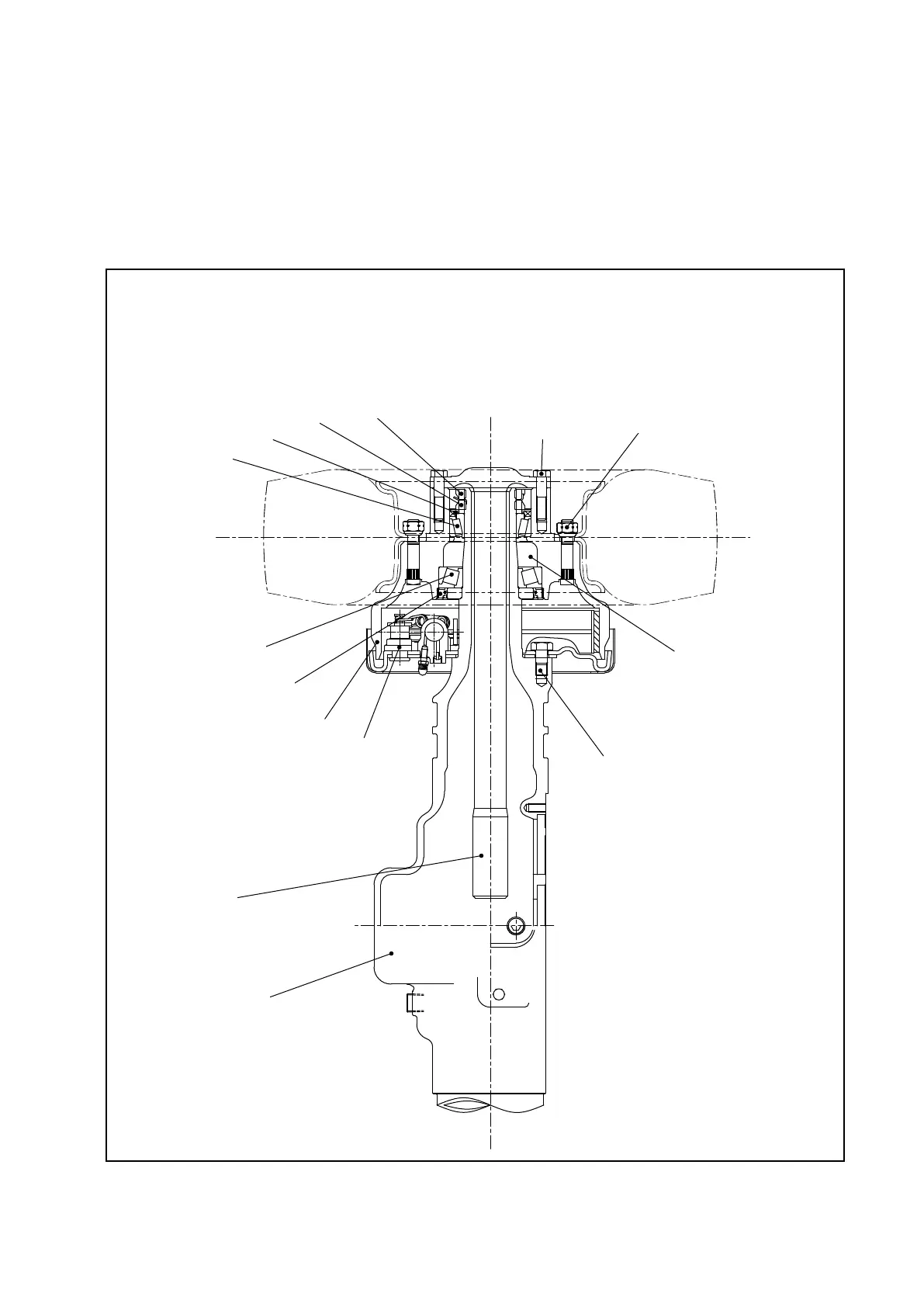

Fig. 4.4 Drive Axle (1- to 1.8-ton Trucks)
4.1.2 DRIVE AXLE
The drive axle is composed of an axle housing, wheel hub, and wheels. It is mounted at the
front side of the frame.
At each end of the axle housing are a wheel hub and a wheel brake.
The wheel hub is supported on the spindle by two tapered roller bearings, and is driven by the
axle shaft.
TAPERED ROLLER BEARING
OIL SEAL
ADJUSTMENT NUT
LOCK NUT
Tightening torque:
98 to 113 N-m
{1000 to 1150 kgf-cm}
[870 to 1000 lbf-in.]
(Apply LOCTITE#262)
Tightening torque:
150 to 175 N-m
{1530 to 1780 kgf-cm}
[1330 to 1550 lbf-in.]
TAPERED ROLLER
BEARING
OIL SEAL
HUB & BRAKE DRUM
WHEEL BRAKE
AXLE SHAFT
AXLE HOUSING
Tightening torque: 120 to 140 N-m
{1220 to 1430 kgf-cm}
[ 1060 to 1240 lbf-in.]
(Apply LOCTITE#270)
Fill 50% of the space with grease
(100 cm
3
at one side)
4. DRIVE UNIT AND DRIVE AXLE
