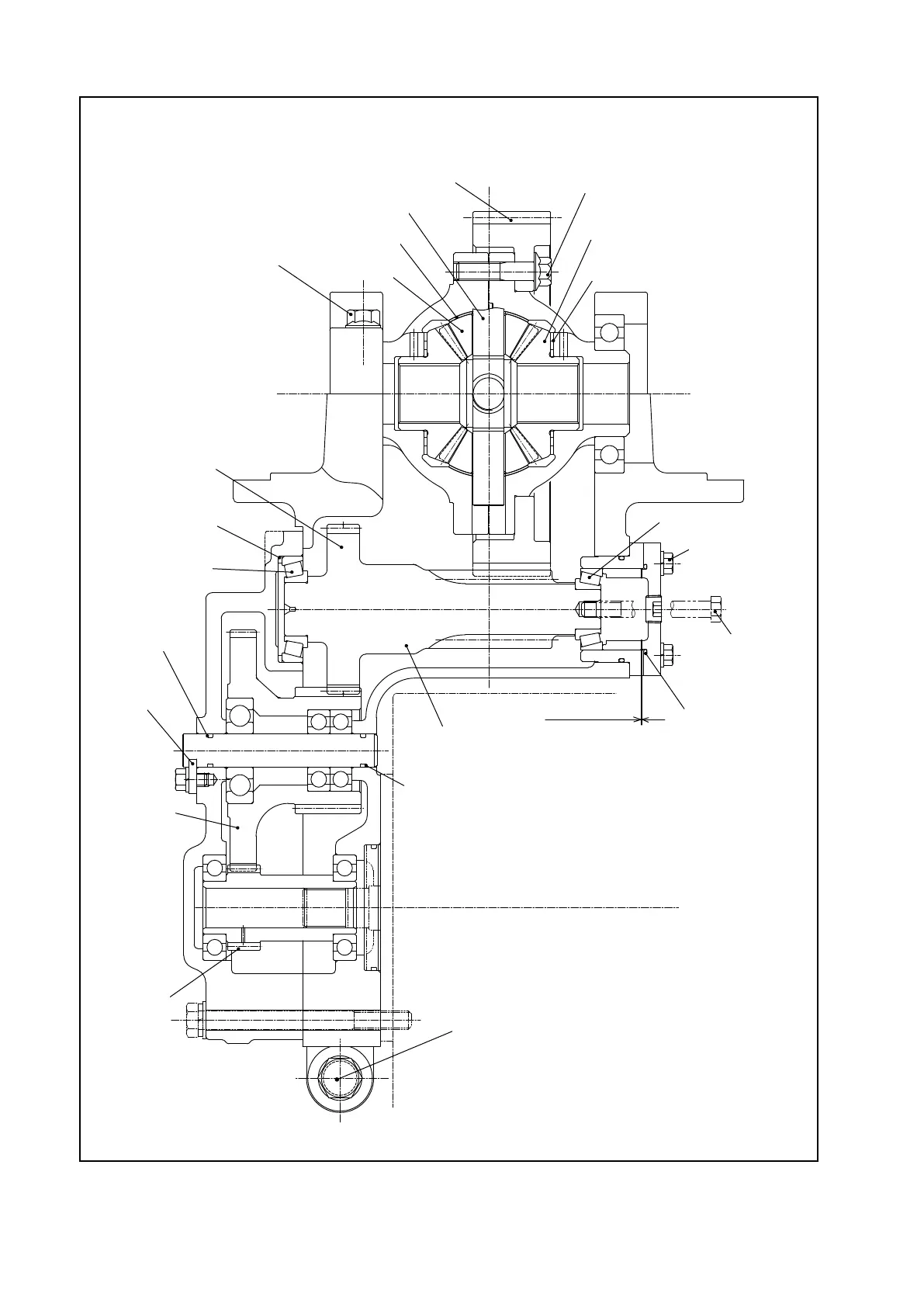

Fig. 4.3 Drive Unit (3.0- to 3.5-ton Trucks)
締付トルク：278～416 N・m
{2800～4200 kgf・cm}
スペーサ
テーパローラ
ベアリング
テーパローラベアリング
起動トルク測定用ボルト
(M12-1.25,長さ100mm)
シム標準：0.5
起動トルク：1.5～3.5 N・m
カウンタギヤ2
カウンタギヤ1
Tightening torque:
95 to 142 N-m
{970 to 1450 kgf-cm}
[840.8 to 1257 lbf-in.]
COUNTER GEAR 2
O-RING
SPACER
TAPERED ROLLER
BEARING
STOPPER
COUNTER
GEAR 1
DRIVE GEAR
RING GEAR
SPIDER
WASHER
PINION GEAR
SIDE GEAR
WASHER
TAPERED ROLLER
BEARING
Tightening torque:
34.3 to 44 N-m
{350 to 450 kgf-cm}
[303.6 to 389.4 lbf-in.]
O-RING
O-RING
MOTOR
Tightening torque: 278 to 416 N-m
{2800 to 4200 kgf-cm}
[2460.5 to 3681.9 lbf-in.]
STARTING TORQUE
MEASUREMENT
BOLT (M12-1.25,
LENGTH 100 mm
[3.9 in.])
Tightening torque:
137 to 177 N-m
{1400 to 1800 kgf-cm}
[1212.6 to 1566.6 lbf-in.]
Starting torque: 1.5 to 3.5 N-m
{15.3 to 35.7 kgf-cm}
[13.3 to 31.0 lbf-in.]
Shim: 0.5 [0.0197] (standard)
4. DRIVE UNIT AND DRIVE AXLE
