6A.1.2 STEERING WHEEL ASSEMBLY
The steering wheel assembly is arranged as shown in Figure 6A.5. The orbitrol is located at the
bottom of the assembly. At the center of the steering wheel is the horn button.
The steering shaft is connected to the drive shaft of the orbitrol. The steering wheel can be
moved to a certain extent back and forth to suit the driver’s physique.

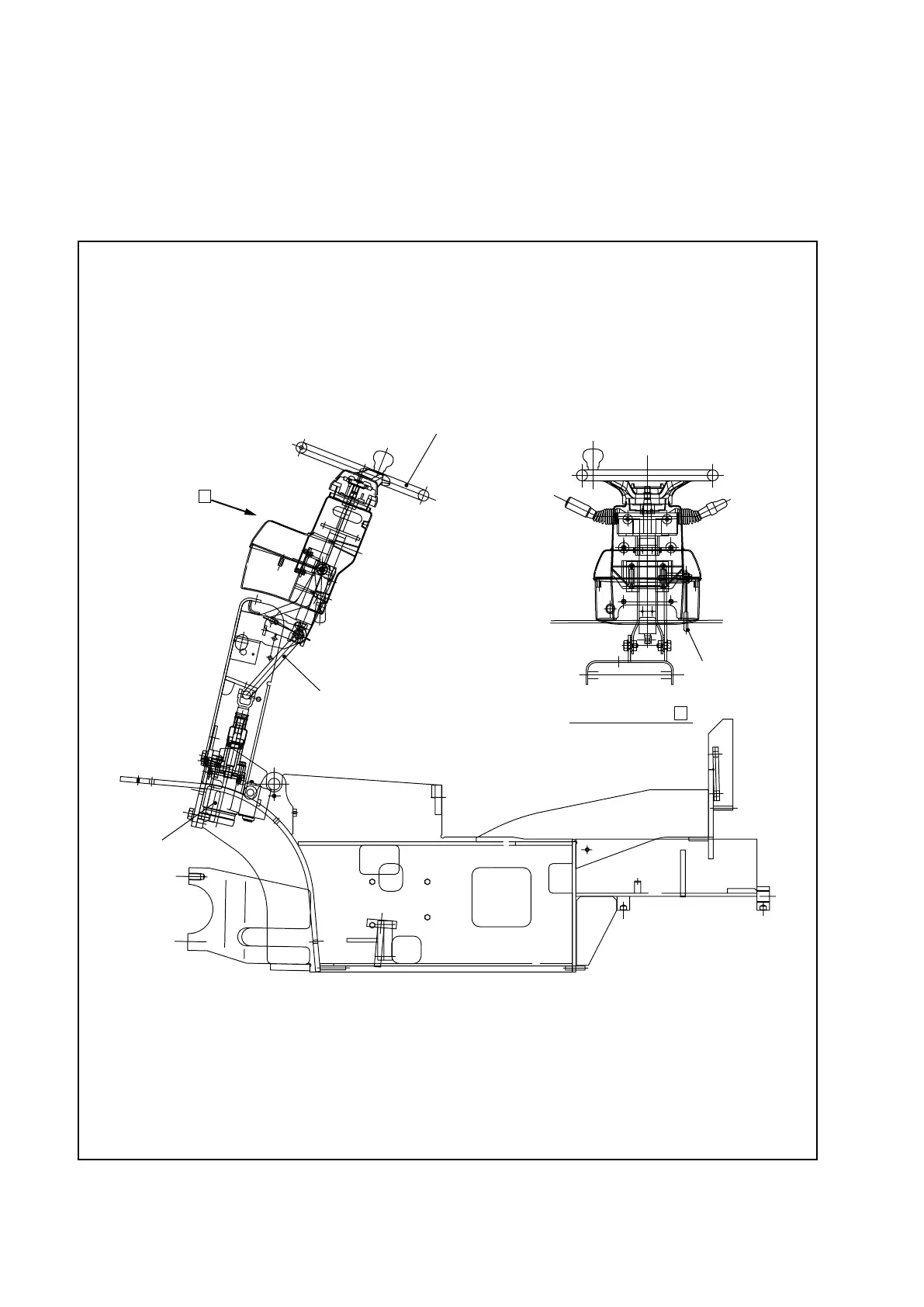

Fig. 6A.5 Steering Wheel Assembly
View looking from
A
STEERING WHEEL
ORBITROL
TILT LOCK LEVER
JOINT
