- 23 -
2. ELECTRICAL PARTS AND PROCEDURES FOR CHECKING

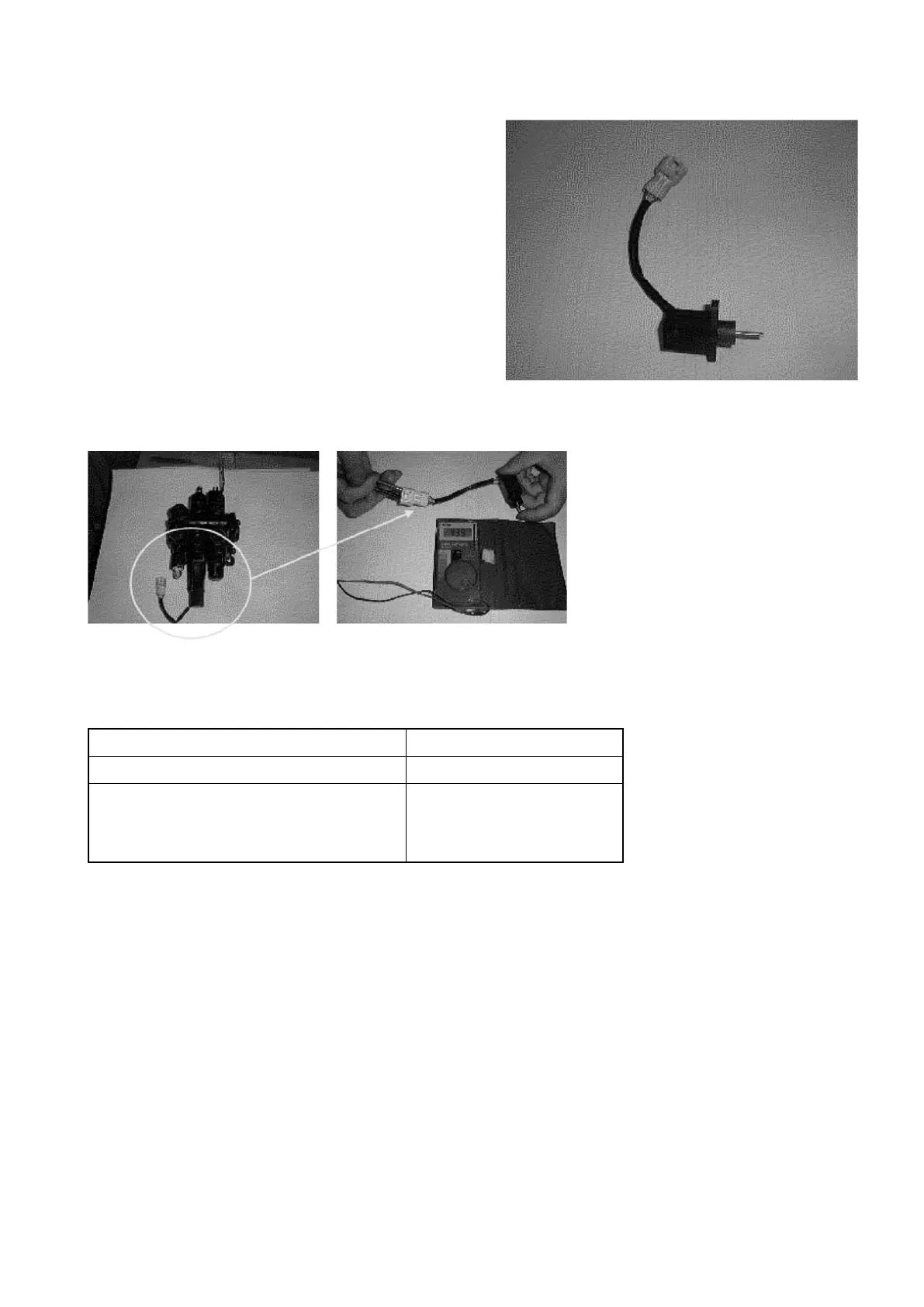

2.2.10 LIFT POTENTIOMETER
The lift potentiometer is used to control the lift
speed of the forks and outputs a signal according to
the tilt angle of the lift lever. The potentiometer is
located in the lift section of the control valve.
Checking procedure
Control valve
Resistance (using a digital multimeter)
Measurement point (within the coupler) Normal value
Between brown and red 4.7 kΩ ±0.3 kΩ
Between white and red
Shaft status:
Pushed in: 0.3 kΩ ±0.3 kΩ
Released: 4.7 kΩ ±0.3kΩ
