TCM FB30-8 - Supplementary Information about Level Setting

- 78 -
4. PARAMETER SETTING
4.5 SUPPLEMENTARY INFORMATION ABOUT LEVEL SETTING
(1) PARAMETER 1 - No. 4 “Lift inching level”
If the controller’s CN1P-20 terminal is turned ON, the upper limit of the conduction ratio during
lifting operations will be according to the setting of this parameter, thus slowing down the lifting speed.
Note: A standard harness does not have any wiring going to this terminal.
(2) PARAMETER 1 - No. 12 “Accelerator stage level”
You can specify the accelerator power curve to be used.
(3) PARAMETER 1 - No. 13 “Speed alarm output level” (option)
Sets the speed at which the speed alarm relay (RS) is turned on.
The output will be turned ON when the speed reaches the preset level and it is turned OFF when the
speed drops 0.5 km/h below that preset level.
If an additional RS relay is installed (inside the right side frame), 48 V can be output at Y99 (under
the oorboard).
60
80
100
ﾚﾍﾞﾙ0
ﾚﾍﾞﾙ1
ﾚﾍﾞﾙ2
ﾚﾍﾞﾙ3
ﾚﾍﾞﾙ4､5､6
0
20
40
60
0.00 1.00 2.00 3.00 4.00 5.00
ﾚﾍﾞﾙ3
ﾚﾍﾞﾙ4､5､6
ﾚﾍﾞﾙ7､8
ﾚﾍﾞﾙ9､10
アクセルステージ特性
アクセル電圧 [Ｖ]
速度指令 [％]

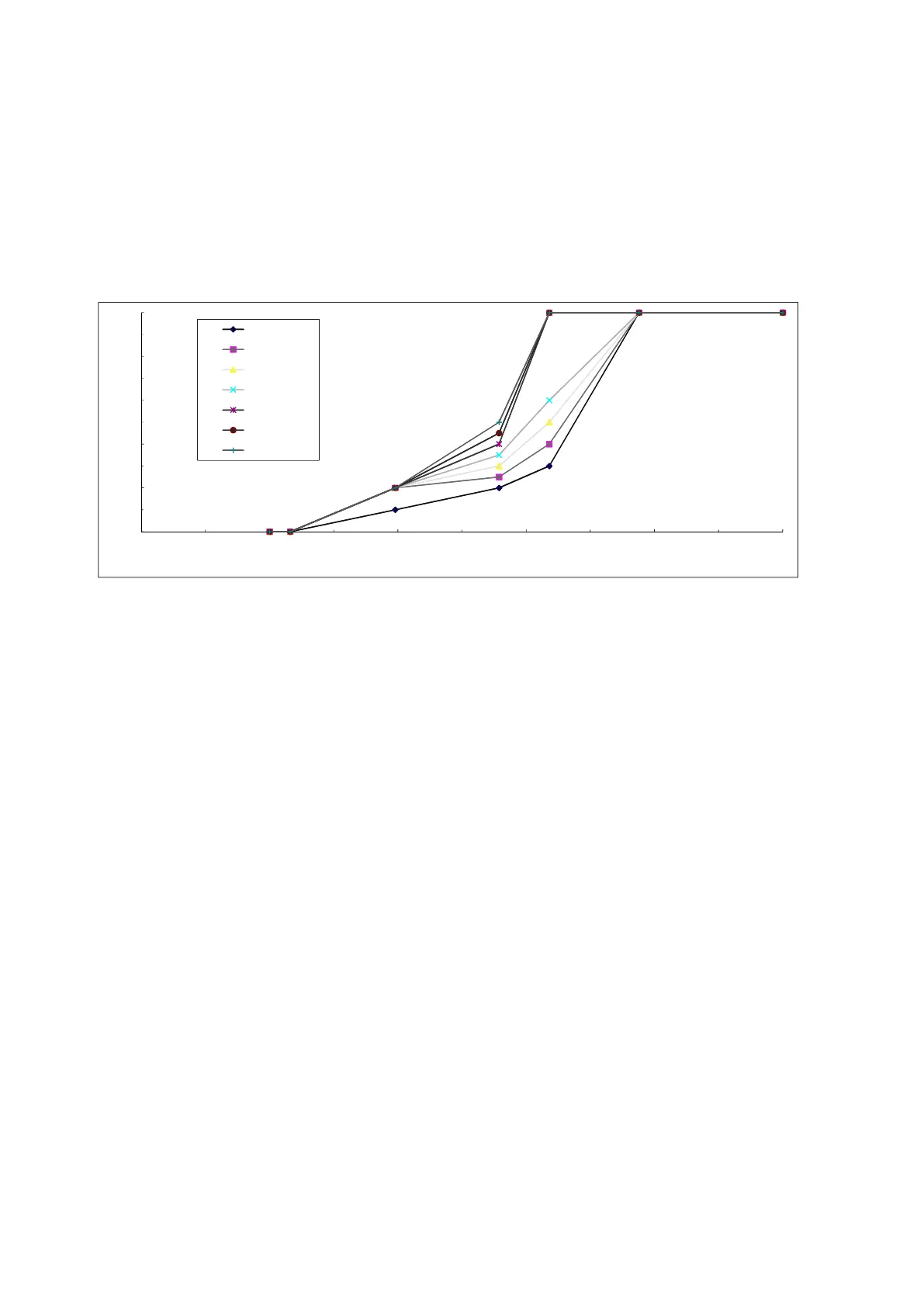

Accelerator power curve
Speed command [%]
Accelerator voltage
Level 0
Level 1
Level 2
Level 3
Level 4,5,6
Level 7,8
Level 9,10
