8. LOAD HANDLING SYSTEM
Truck model
Item
FB10-8
FB18-8
FB15-8 FB20-8
FB25-8
FB25-8LB
FB25-8V
F30-8
FB30-8V
FB35-8S
Name VM-7P1 VM-7P4 VM-7P5 VM-7P7 VM-7P9
Type Roller type 2-step telescopic mast with free lift
Max. standard
lifting height
3000 mm
[118.1 in.]
← ← ←
Fork lifting system Hydraulic
← ← ←
Mast tilting system Hydraulic
← ← ←
Lift chain Leaf chain
BL534
Leaf chain
BL634
Leaf chain
BL823
Leaf chain
BL834

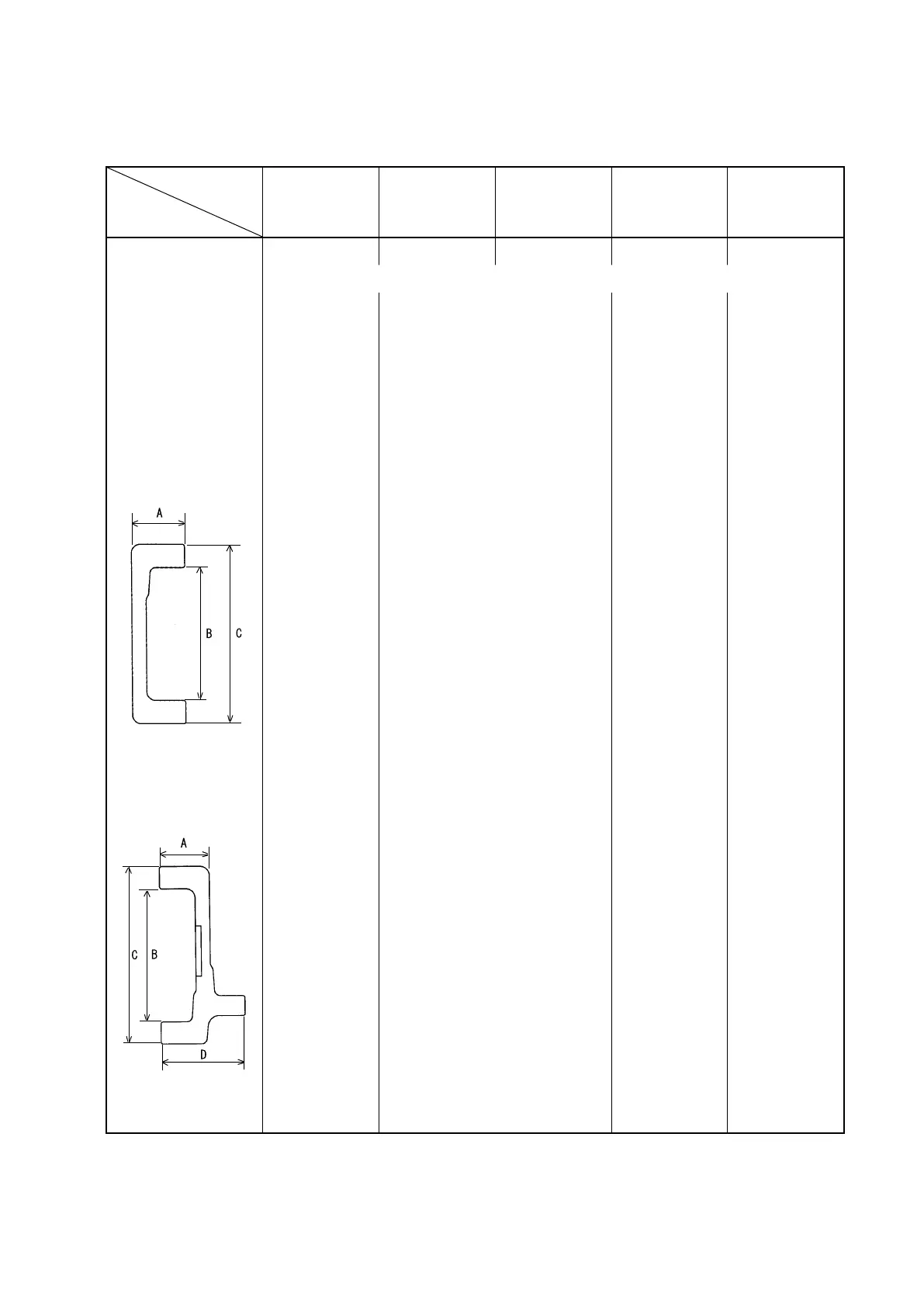

Mast cross section
Outer mast
A: 44 mm
[1.73 in.]
B: 102.5 mm
[4.04 in.]
C: 134.5 mm
[5.30 in.]
A: 48 mm
[1.89 in.]
B: 119.5 mm
[4.71 in.]
C: 161.5 mm
[6.36 in.]
←
←
←
A: 60 mm
[2.36 in.]
B: 124 mm
[4.88 in.]
C: 170 mm
[6.69 in.]
Inner mast
A: 43 mm
[1.69 in.]
B: 102.5 mm
[4.04 in.]
C: 134.5 mm
[5.30 in.]
D: 72 mm
[2.83 in.]
A: 45 mm
[1.77 in.]
B: 119.5 mm
[4.71 in.]
C: 159.5 mm
[6.28 in.]
D: 76 mm
[2.99 in.]
←
←
←
←
←
←
←
←
