(3) Make sure that the clearance between the
carriage and the inner channel stoppers
is 0 mm when the fork is raised to the
maximum lifting height
Note 1: When the mast lifting height is over
4000 mm [157.5 in.], the dimension
B
is +50 mm [1.97 in.].
(4) Adjust the tension of the right and left
chains to the same value with the chain
anchor pin at the mast side when the fork is
at the bottom position and the mast is tilted
back all the way.

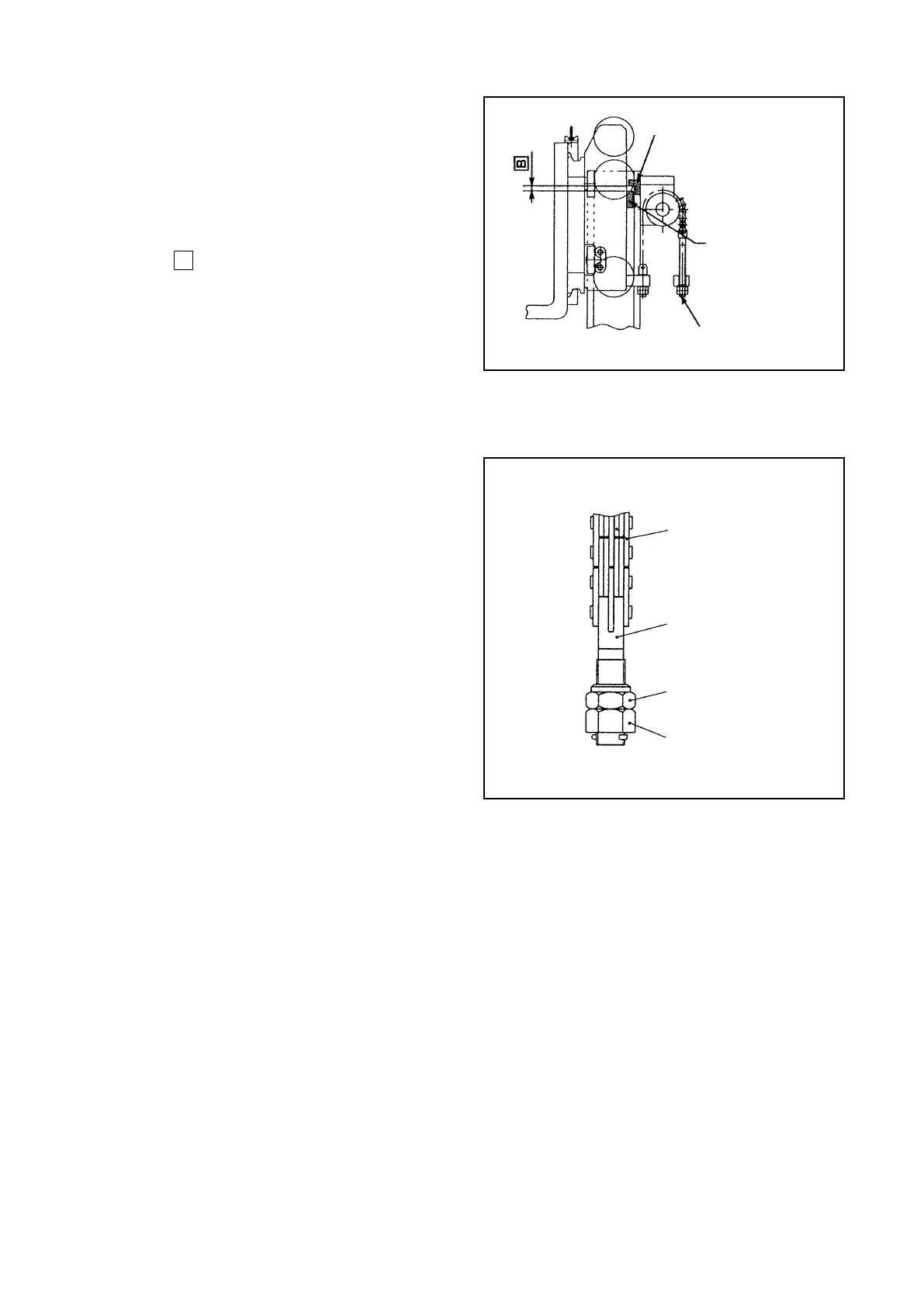

Fig. 8.10
LOCK NUT
CHAIN
ANCHOR PIN
ADJUST NUT
Fig. 8.9
CHAIN ANCHOR
PIN at mast side
INNER CHANNEL
STOPPER
CARRIAGE
STOPPER
