(8) Extend the lift cylinder rods so that the
inner channel bottom projects the upper
section of the carriage.
(9) Bring the truck close to the carriage side
so that each roller enters inside of the outer
channel.
(10) Contract the lift cylinder rods to lower the
inner channels gradually. Place each roller
of the carriage into the inner channel.
(11) Engage the chain with the sheave and
connect the chain and anchor through the
joint link.
(12) Adjust the height of the carriage. (See
8.2.2.)

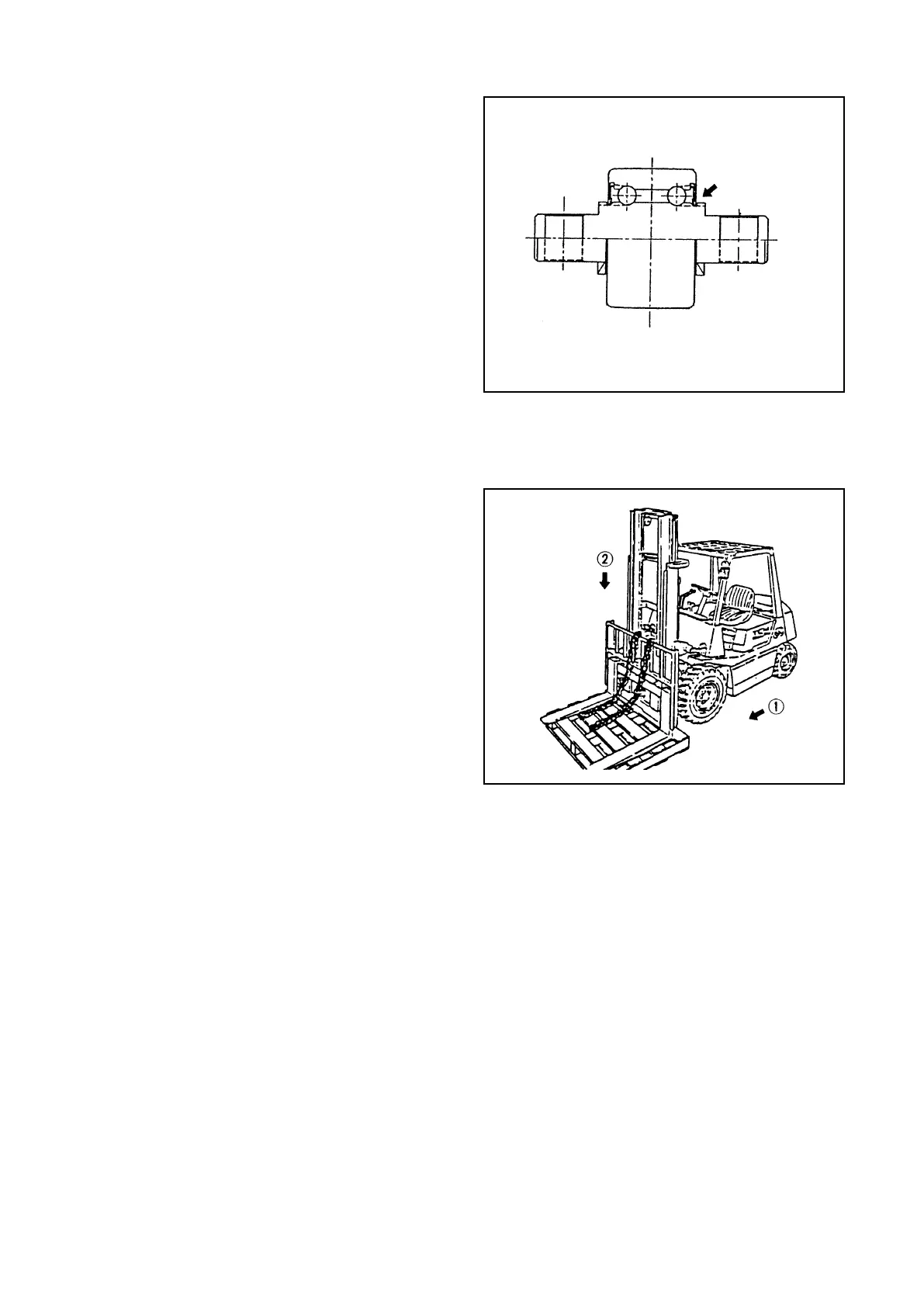

Fig. 8.15
Fig. 8.14 Side Roller
Groove for balls
To Next Page
