TCM FB30-8 - Page 174

- 12 -
2. ELECTRICAL PARTS AND PROCEDURES FOR CHECKING

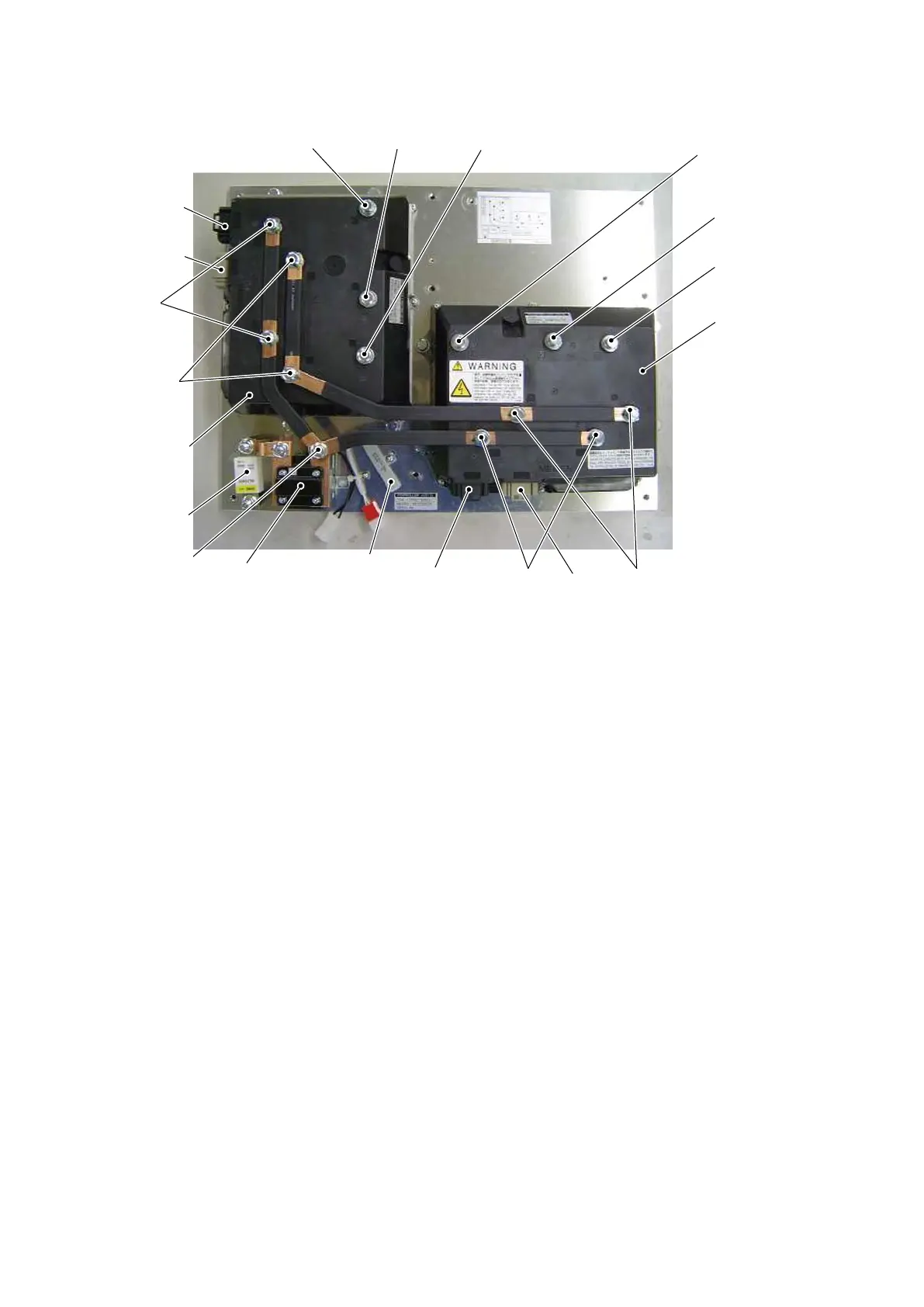

■ 1- to 3.5-ton trucks (Excluding those with an Orbitrol steering system.)
Positive terminal
Negative terminal
Inverter unit (pump
motor)
Fuse (F1)
Positive terminal
Main contactor
Fast charge resistance
(RCH)
Positive terminal
Negative terminal
PW motor terminal
PV motor terminal PU motor terminal
DW motor terminal
DV motor terminal
DU motor terminal
Inverter unit
(drive motor)
CN2P
CN1P
CN1D
CN2D
