TCM FB30-8 - Page 64

- 38 -

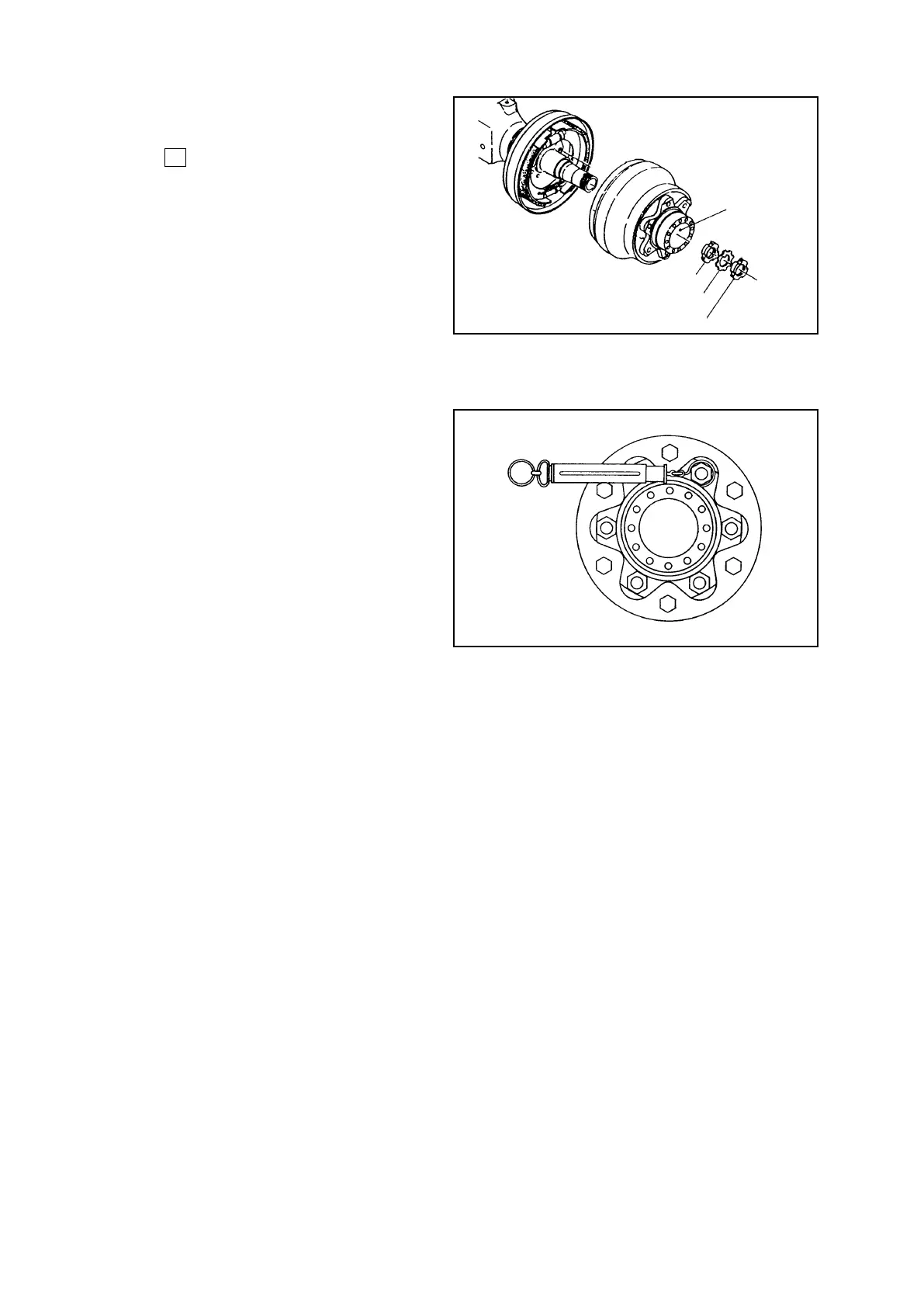

Fig. 4.8 Measuring Starting Force
■ Procedure for installing the wheel hub
(1) Put the specied amount of grease into the
space
A
of the wheel hub and install it
onto the spindle.
(2) Tighten the adjustment nut to approx. 98
N-m {1 kgf-m} [7.23 lbf-ft] torque and
loosen it by 1/2 turn.
(3) Set the spring balancer to the stud bolt.
Adjust the starting force of the hub while
tightening the adjustment nut gradually.
Starting force: 4.9 to 6.9 N
{0.5 to 0.7 kgf}
[43.4 to 61.1 lbf]
(4) Install the lock washers and the lock nuts,
and secure the lock nuts with the claws of
the lock washers.
Fig. 4.7 Filling Grease
LOCK NUT
ADJUSTMENT NUT
LOCK WASHER
A
4. DRIVE UNIT AND DRIVE AXLE
