TCS 3000 Installation Manual

17
TCS 3000 Installation
www.tcsmeters.com
Total Control Systems

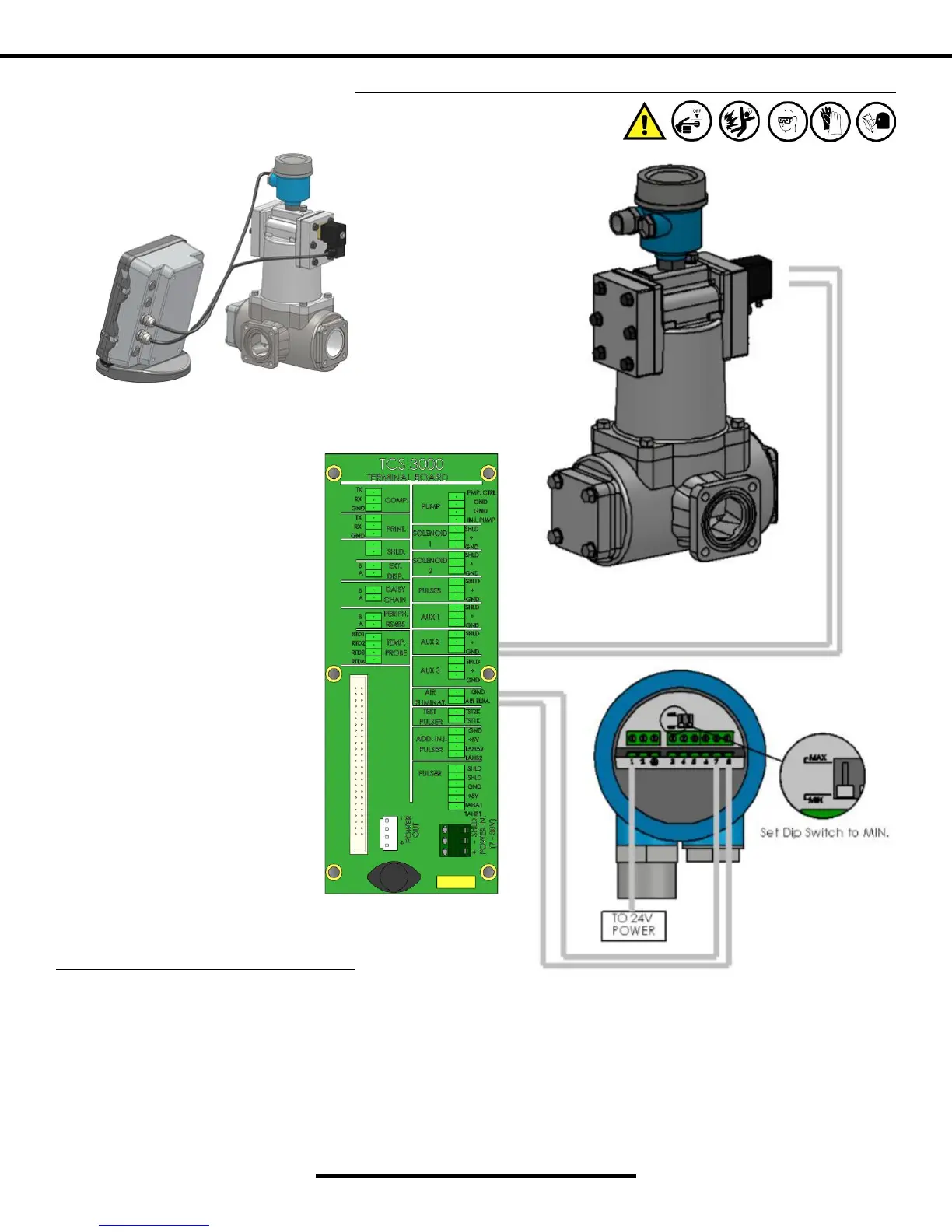

Installaon Procedure — Vibronic Electronic Air Eliminator
Installaon Procedure:
1. Connect Independent +24VDC to Terminal Block L1 in the Vibronic Sensor
2. Connect Terminal Block 7 to “GND” and Terminal Block 8 to “Air Elim.” under Air Eliminator Secon of the TCS
3000 register.
3. Set the Dip Switch on the Vibronic Sensor to the MIN Posion.
4. Wire Air Eliminator Solenoid as normal.
