TCS 3000 Installation
www.tcsmeters.com Total Control Systems
The USB0 and USB1 ports are for maintenance only. To access these connectors, power to the unit must be
disconnected and the area known to be free of ignitable gas or equivalent.
COMMUNICATION
Four (4) RS 485 output, 2-wire half duplex, custom protocol; 9600 baud, 8 bit, no parity, 1 stop bit
One (1) RS 232 output, 9600 baud; 8 bit, no parity, 1 stop bit

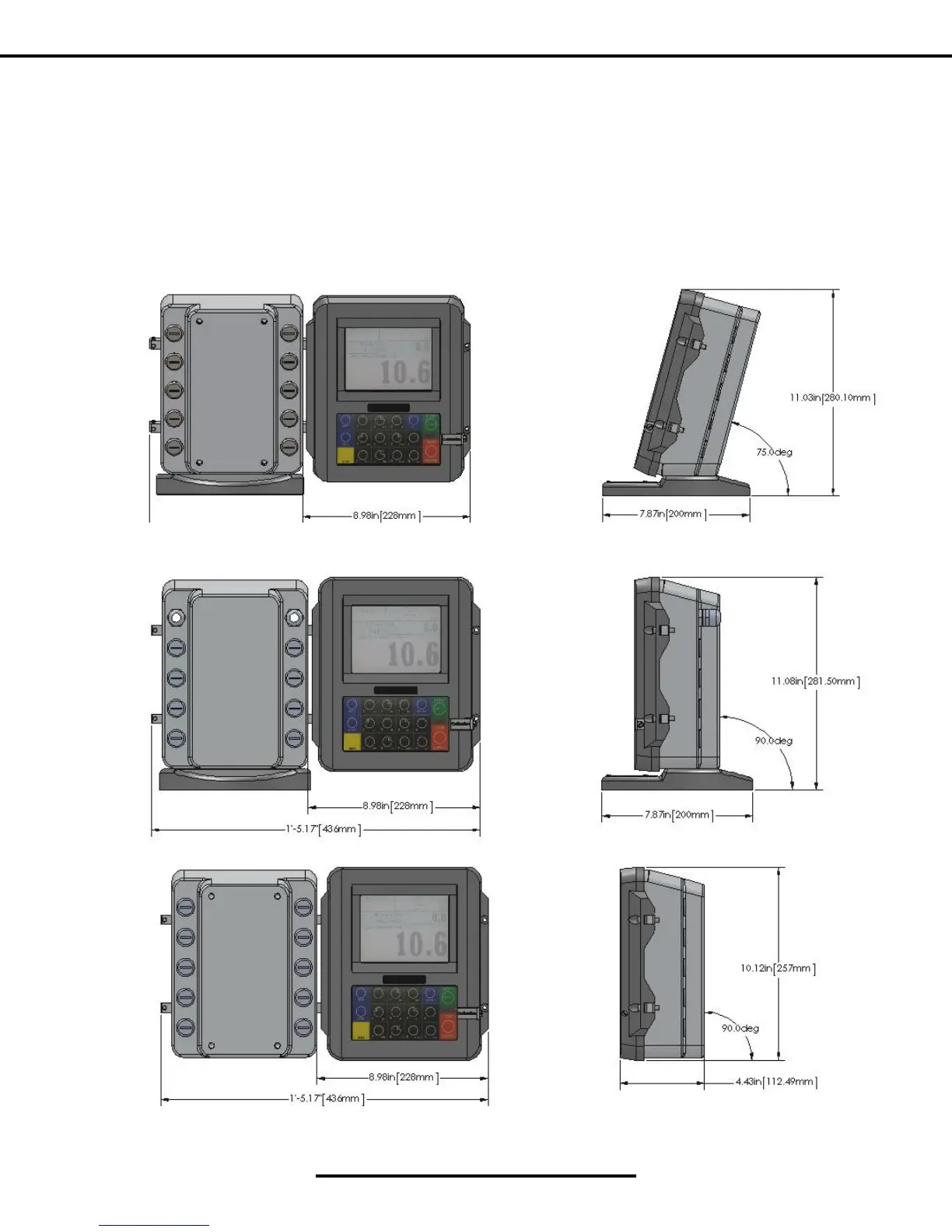

DIMENSIONS — INCHES (MILLIMETERS)
To Next Page
