www.tcsmeters.com Total Control Systems 8
TCS 3000 Installation
Installaon Procedure — 3000 Remote Mount
Before beginning the installaon of the TCS 3000 register, unpack the enre contents of the packaging in a safe loca-
on where you will not misplace any of the parts. Lay out the parts as they would be installed. This will ensure that
you have all the correct parts for the installaon. Verifying all the necessary parts were included in the shipment in
advance will reduce downme and avoid any wasted preparaon work.
Installaon Procedure:
1. Use the Remove Mount Kit to mount the TCS3000 register in your desired locaon.
2. Follow the direcons in the Direct Mount Pulser Manual (TCS900030) to install the Pulser on the meter.
3. Once the Pulser is wired, run the corresponding wire cable into the back of the TCS 3000 register.
4. Insert the pulser wiring through the cable gland. Wire the pulser into the correct pulser locaon on the terminal
board. Leave a small amount of slack on the wiring. Be careful not to leave any bare exposed wiring.
5. Compress the cable gland on the TCS3000 register unl it is snug on the pulser wire.

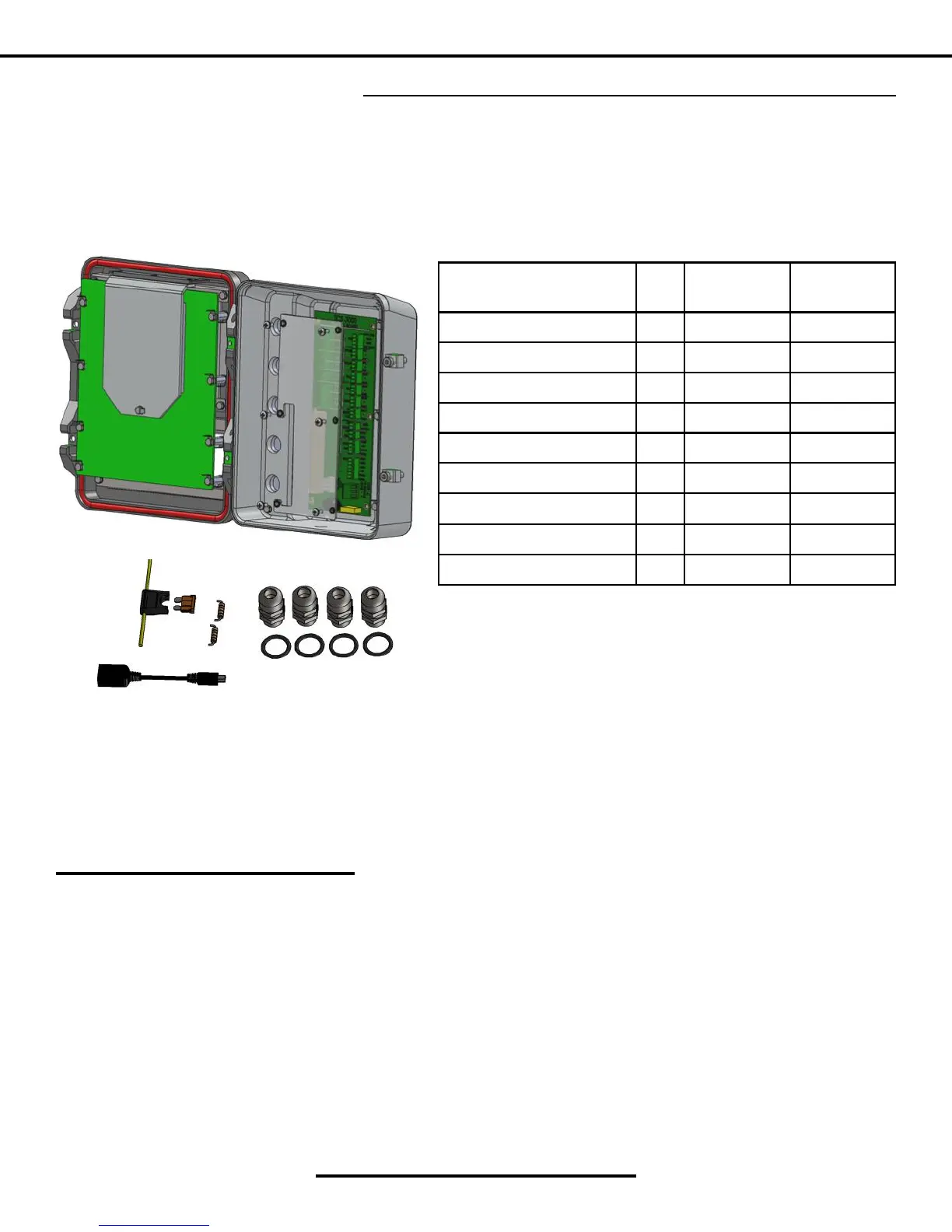

Item Qty
TCS 300877
Metric
TCS 300977
NPT
Phillips Pan 6 TCS300137 TCS300137
Spring Washer 6 TCS300138 TCS300138
Terminal Cover 1 TCS300164 TCS300164
7.5 AMP Fuse 1 TCS300192 TCS300192
Fuse Holder 1 TCS300193 TCS300193
Cable Gland 4 TCS300249 TCS300133
O-Ring, Cable Gland 4 TCS300245 TCS300245
USB Fem/Mini Male Cable 1 TCS300705 TCS300705
Resistor 1K OHM 2 TCS300753 TCS300753
USB Adapter
Fuse Holder
Fuse
Resistors
Cable Glands
To Next Page
