Total Control Systems

TCS 3000 Installation

Installaon Procedure — LPG 1-Stage Security Valve

Installaon Procedure:

1. Using the bolts and gasket provided, install the 757 LPG valve on the outlet (downstream) side of the meter.

2. Follow the instrucons provided with the valve for wiring the solenoid.

3. Mount the 3 Way Valve and threaded ng directly to the TCS 3000 register and follow the instrucons provided

with the Valve. *Note: Use Correct Thread Sealant*

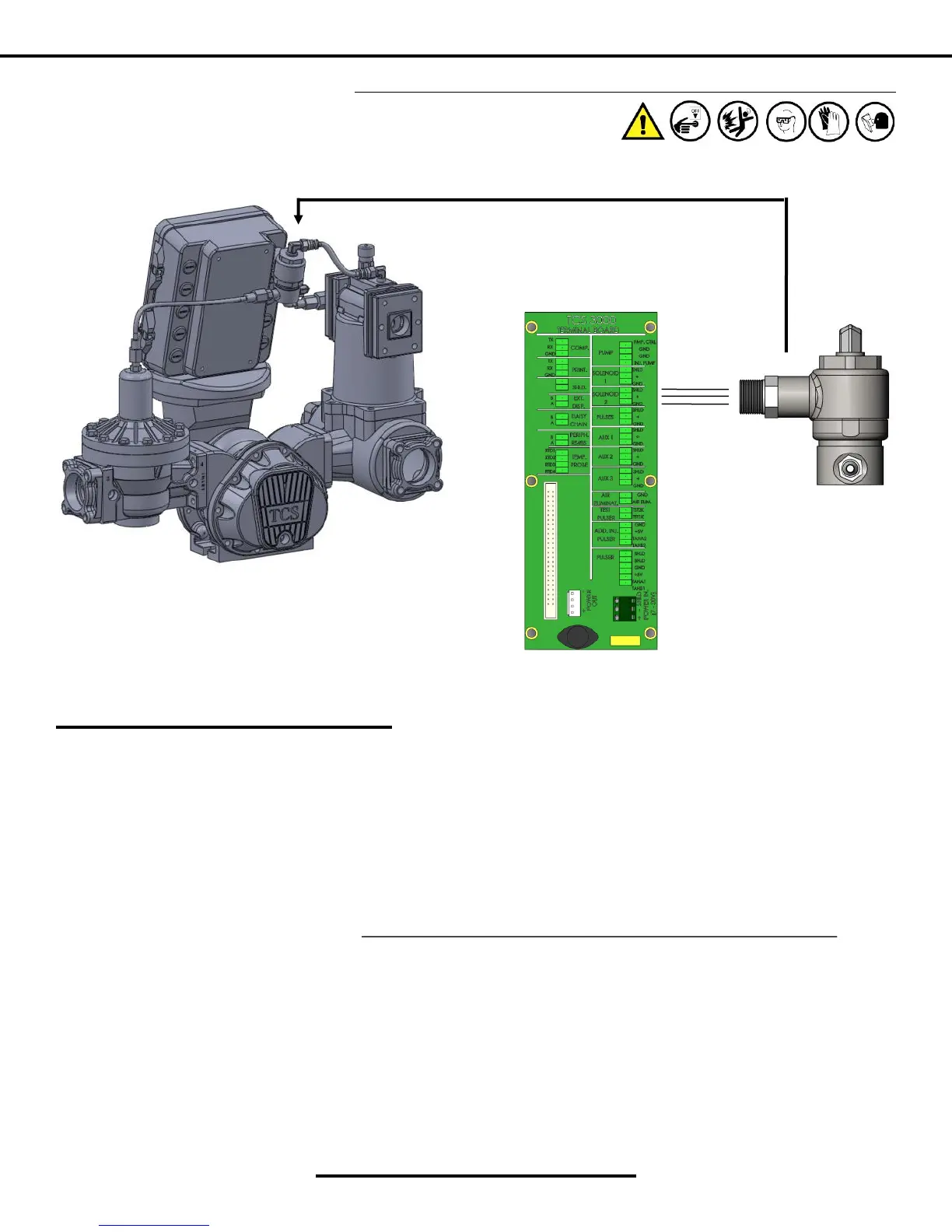

4. Once the solenoid is wired, run the corresponding wire as pictured using a minimum of 18 gauge shielded cable

into the back of the TCS 3000 register. The 3 Way valve will be wired into Solenoid 2 on the terminal board.

5. TCS 3000 register product programming for Valve Type should be set to Single Stage.

*When Calibrang the Unit Set Up Valve Type as 1001*

GREEN

BLACK

S2 – Fast Flow

Solenoid Valve
