TDK-Lambda G10-500 - 7.3 GEN Language Status Registers; 7.3.1 GEN Register Tree Diagram

159
7.3 GEN Language
7.3.1 GEN Register Tree

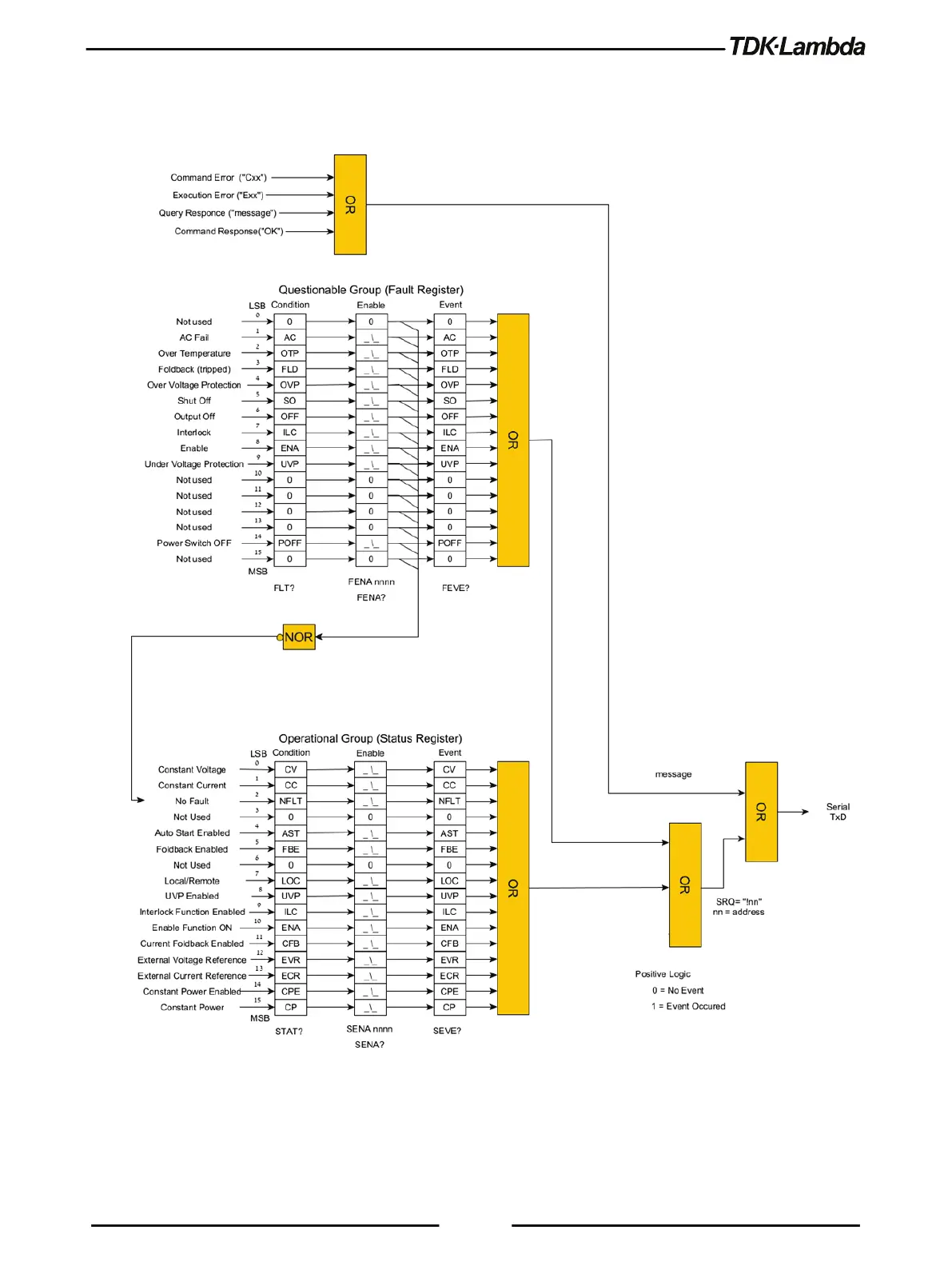

Figure 7–2: GEN Registers Tree Diagram
GEN register tree shown in Figure 7–2 describes the structure of the status, faults, messaging and
service request registers. Condition registers hold a snapshot of the actual state. Enable registers
