2.4 Rear Panel Connections and Controls
Refer to Figure 2–3 and Table 2-3 for description of the Rear Panel connections and controls.

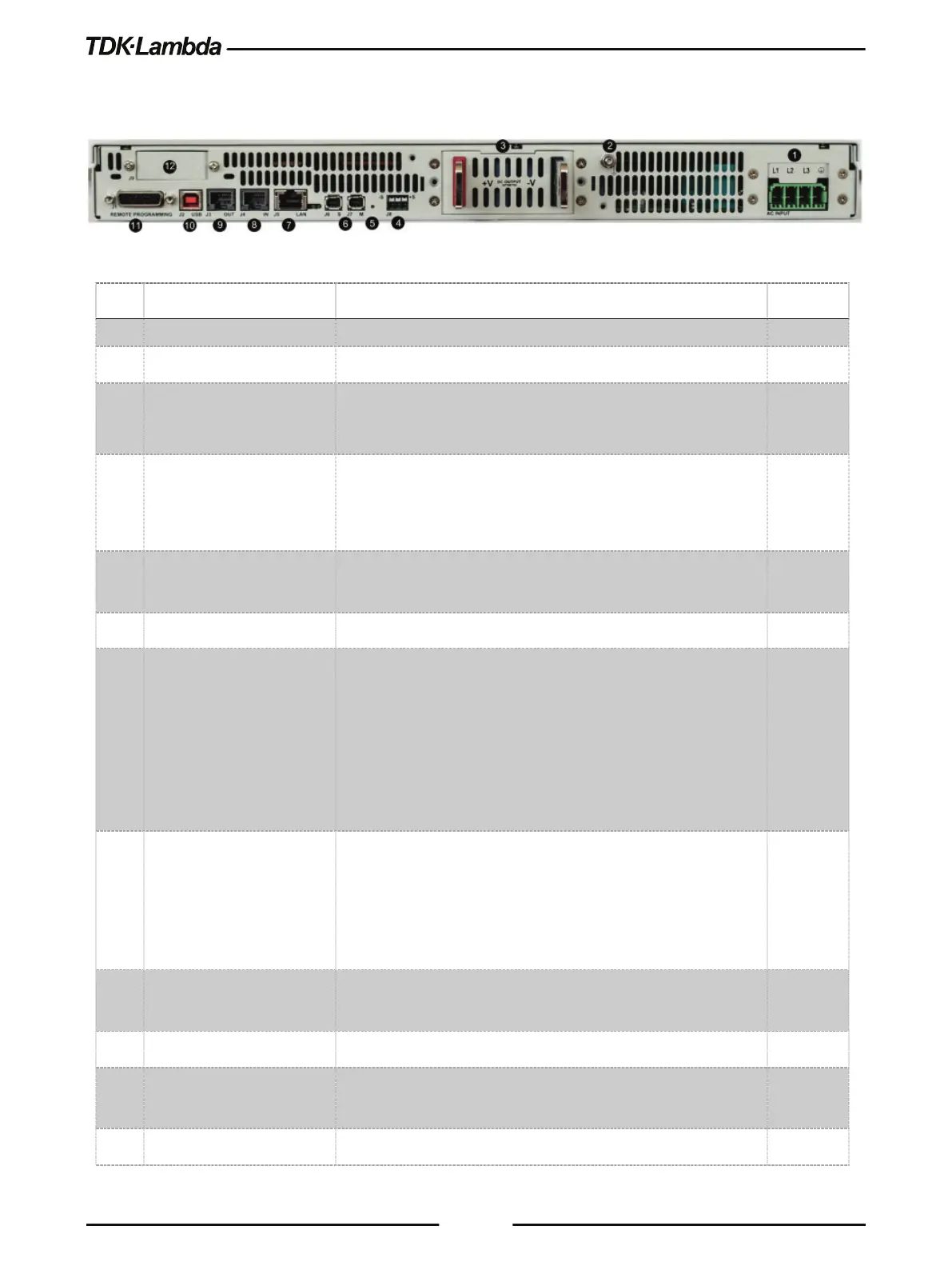

Figure 2–3: Rear Panel Connection and Controls
No.
Connection
Description
Section
1 AC Input Connector Connector type: PC 5/ 4-G-7,62.
2
Ground Stud
Functional Ground connection M4x8 Stud.
3 DC Output Bus-Bar /
Connector
Bus-bars for 10V to 100V models,
IPC 5/ 4-GF-7,62 for 150V to 600V models.
4 Remote Sense Connector A Connector for remote sensing connections.
Connect to the load for regulation of the load voltage and
compensation of load wire drop.
5 Reset Button Set default power supply settings (Factory Reset). Press Reset
Button between 5 to 10 sec. Refer to Table 3-5 & Table 3-6.
6
Paralleling Connectors
Master/Slave connectors, mini I/O type
7 LAN Connector +
Indicators *
LAN interface connector, RJ-45 type + LAN status indicators.
Green LED on RJ45 connector – Link / Activity.
Amber LED on RJ45 connector – Speed. Lit – 100Mbps,
otherwise 10Mbps.
Green status indicator (close to RJ45) – Connection active.
Red status indicator (close to RJ45) – LAN fault / Not connected.
8 Serial In Connector RJ-45 type connector, used for connecting power supplies to
RS232 or RS485 port of a computer for remote control
purposes. When using several power supplies in a power
system, the first unit Serial-In is connected to the computer and
the remaining units are chained, Remote-Out to Remote-In.
9 Serial Out Connector RJ-45 type connector, used for chaining power supplies to/from
a serial communication bus.
10
USB Connector
USB interface connector, type B.
11 Isolated control and
signals
Isolated analog Control and monitoring signals, isolated from
the output potential.
12
Optional Interface
Position for optional communication interface.
Table 2-3: Rear Panel Connections and Controls
