5.7.6.3 The Home Page
The following page appears when the web page is opened for the first time or when it is refreshed:

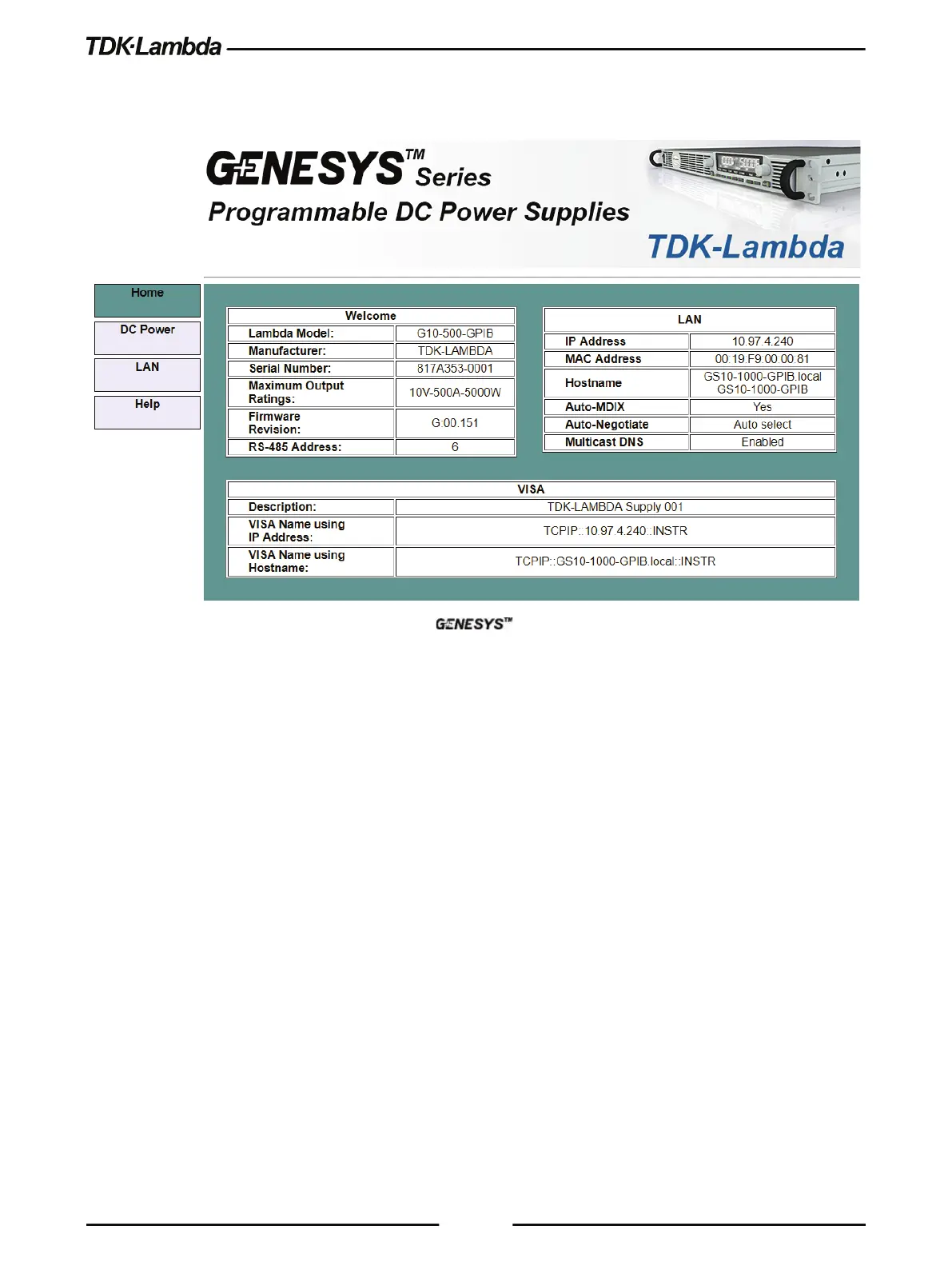

Figure 5–9: Home Page
VISA Name Using IP Address
For automation programming, VISA is a type of communication driver.
For LAN instruments, the IP address may be used in the VISA resource descriptor. Refer to section
5.7.4.4.
VISA Name Using Hostname
An alternate VISA resource descriptor may be the hostname. Refer to section 5.7.4.5.
RS-485 Address
This address applies to a multi-drop chain of power supplies only.
The RS-485 address of the LAN supply is also called the Master Supply.
Hostname
A unique name for a device on a network. The default hostname is described in section 5.7.4.5.
It is configured as described in section 5.7.6.6.
Auto-MDIX
Power Supply LAN automatically detects if a patch or crossover LAN cable is used.
Auto-Negotiate
Power Supply LAN automatically adjusts its speed to the fastest speed available.
