83-517-000 Rev. A
7.8 STATUS, ERROR AND SRQ REGISTERS
General 7.8.1
This Section describes the various status errors and SRQ registers structure. The registers can be read or set
via the RS-232/RS-485 serial communication commands. When using the LAN, IEEE or USB Interface option,
refer to the specific User’s Manual. Refer to Figure 7-7 for the Status and Error Registers Diagram.

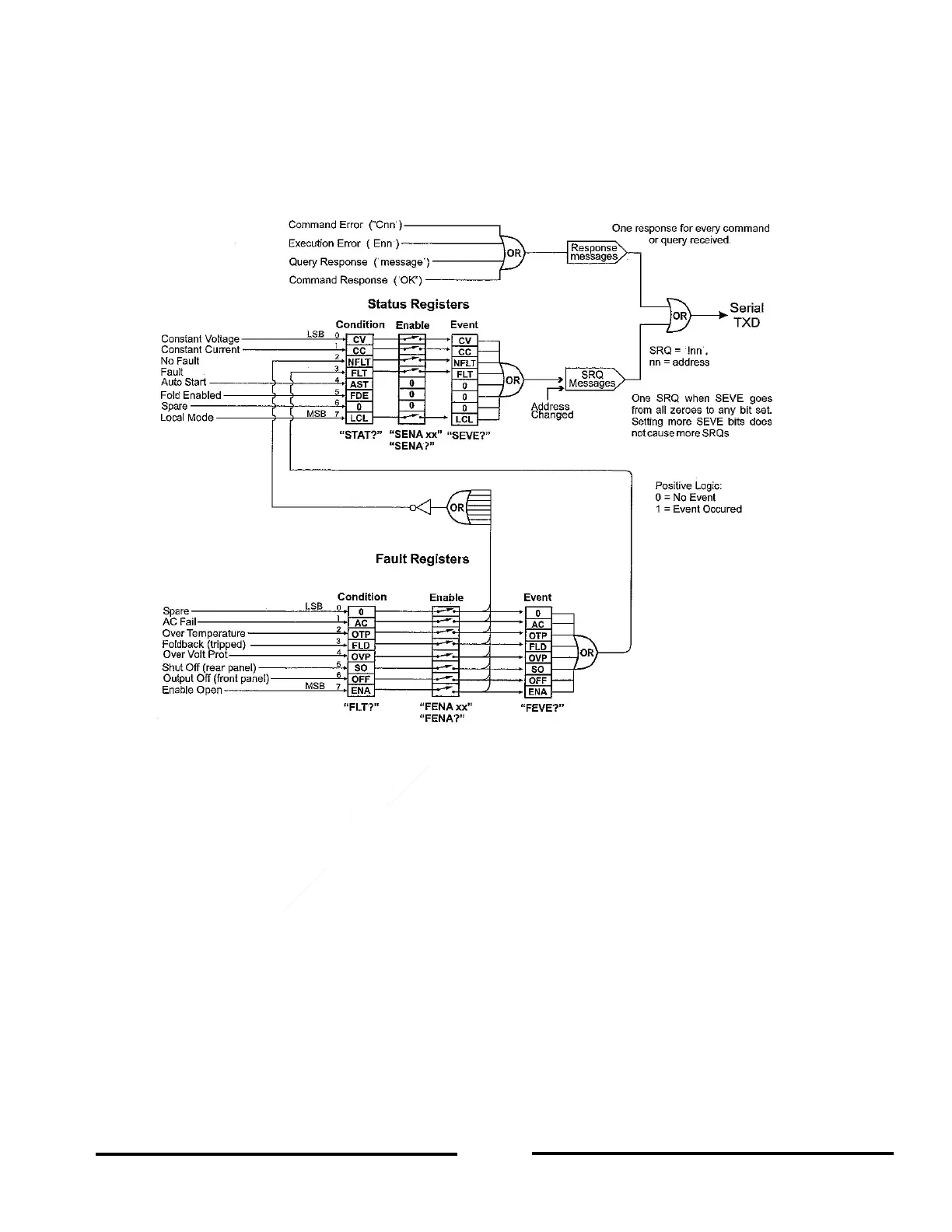

Figure 7-7 Status and Error Registers Diagram
To Next Page
