CHAPTER 4 FRONT AND REAR PANEL CONTROLS AND CONNECTORS
4.1 INTRODUCTION
The Genesys
TM
Power Supply series has a full set of controls, indicators and connectors that allow the user to
easily setup and operate the unit. Before starting to operate the unit, please read the following Sections for
explanation of the function of the controls and connector terminals.
-Section 4.2: Front Panel Controls and Indicators.
-Section 4.3: Rear Panel Controls and Connectors.
4.2 FRONT PANEL CONTROLS AND INDICATORS
See Figure4-1 to review the controls, indicators and meters located on the power supply front panel.

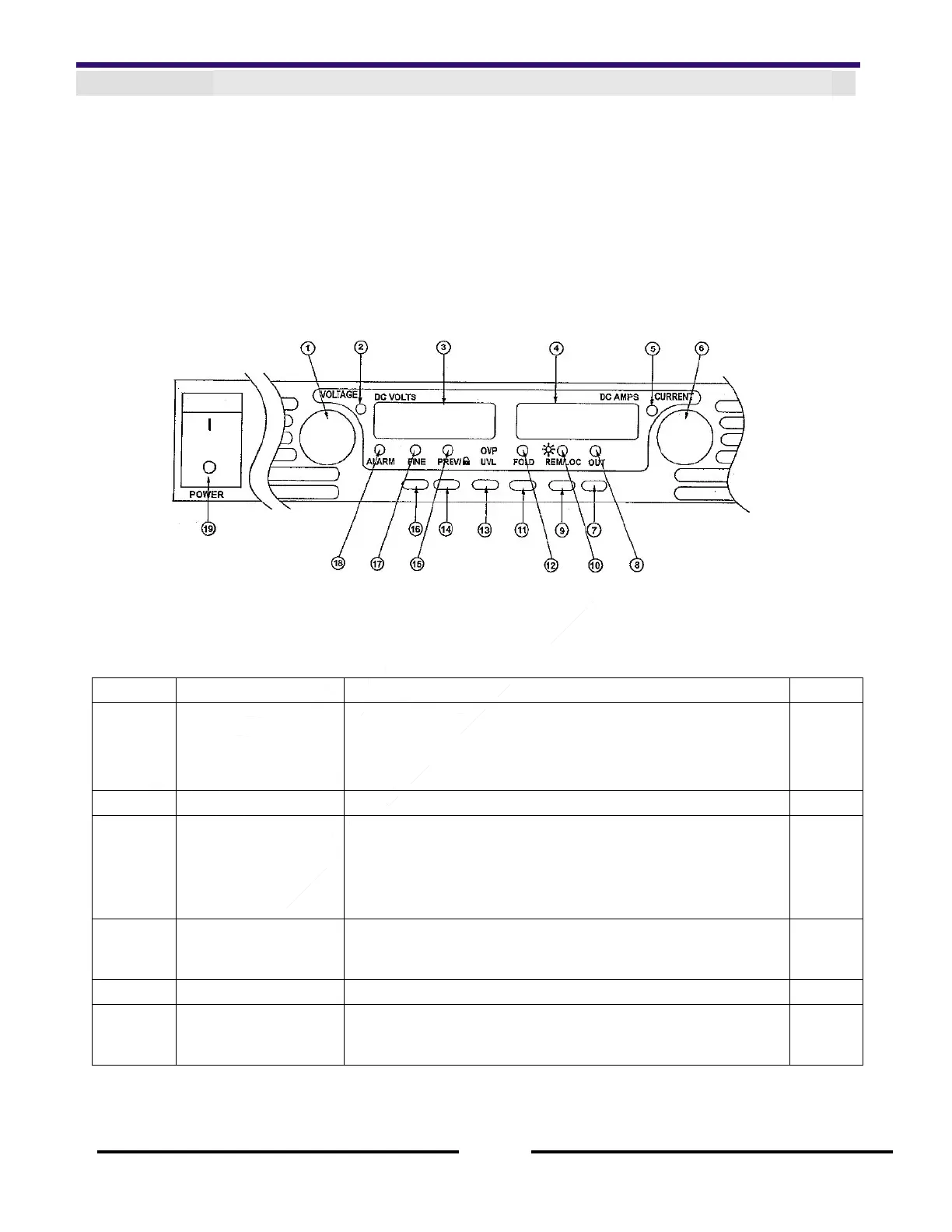

Figure 4-1: Front Panel Controls and Indicators
Table 4-1: Front Panel Controls and Indicators
Number
Control/Indicator
Description
Section
1
VOLTAGE control
High resolution rotary encoder for adjusting the Output
voltage. Also adjusts the OVP/UVL levels and selects the unit
Address (for digital communication).
5.2.1
5.3.1
5.4.1
7.2.2
2
VOLTAGE indicator
Green LED, lights for Constant-Voltage mode operation.
3
VOLTAGE display
4 digit, 7-segment LED display. Normally displays the Output
voltage. When the PREV button is pressed, the VOLTAGE
display indicates the programmed setting of the Output
voltage. When the OVP/UVL button is pressed, the
VOLTAGE display indicates the OVP/UVL setting.
4
CURRENT display
4 digit, 7 segment LED display. Normally displays the output
Current. When the PREV button is pressed, the display
indicates the programmed setting of Output Current.
5
CURRENT indicator
Green LED, lights for Constant-Current mode operation
6
CURRENT control
High resolution rotary encoder for adjusting the Output
current. Also selects the Baud-Rate of the serial (RS-232/RS-
485) communication port.
5.2.2
7.2.4
