Technica CM 100 High User Manual

CM 100 High User Manual

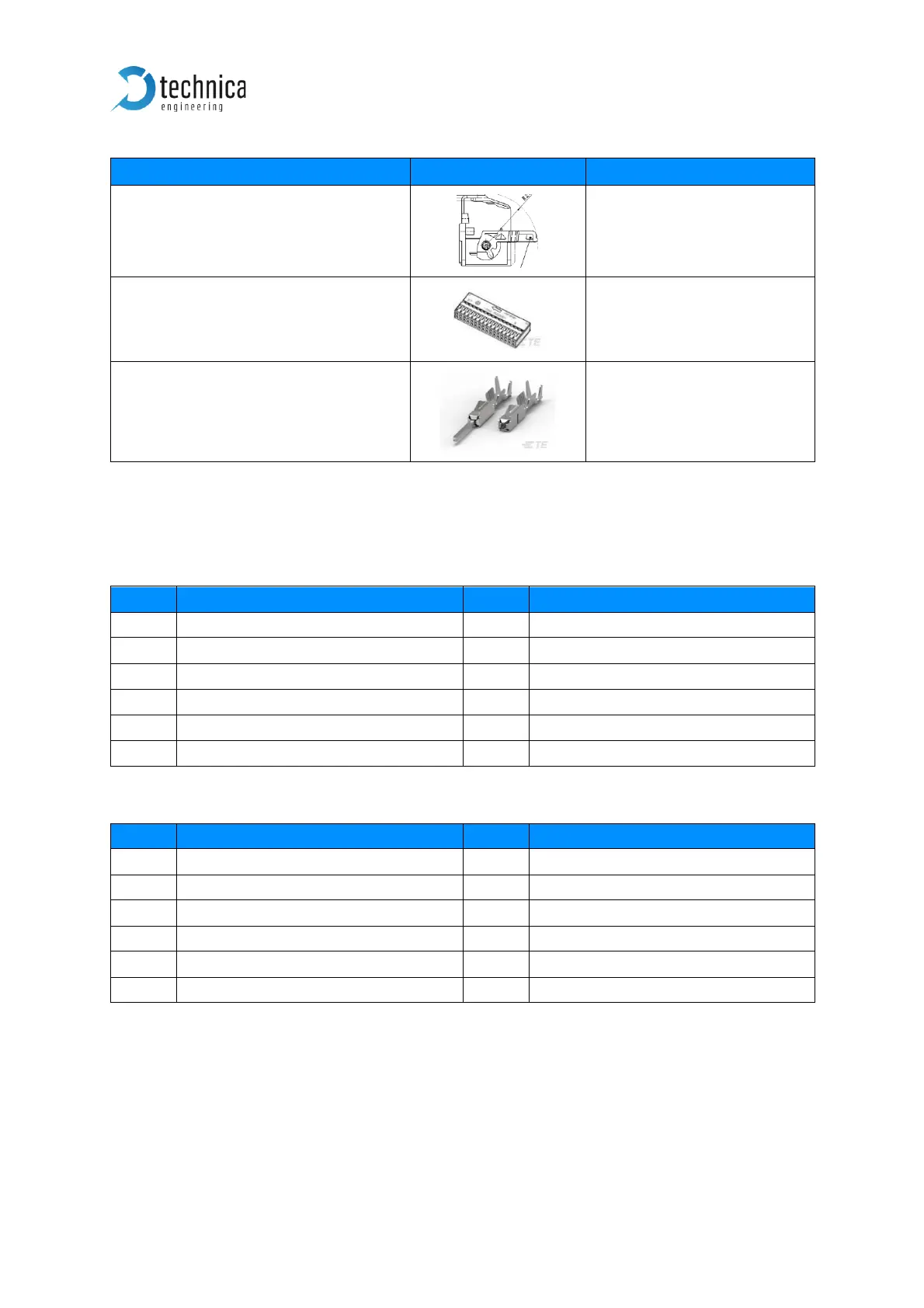

12
Name
Part Number
Tyco, MQS Abdeckkappe 2x6 Pol,
White
2-967415-1
Tyco, MQS Buchsengehäuse 2x6 Pol,
Black
965776-1
Tyco crimp contact
928999-1
Table 2-3: Parts of Tyco MQS Connector
Note: You can use the official Tyco tool for these crimp contacts. A cheap variant is
the crimp tool for “PSK” contacts.
Pin
Function
Pin
Function
1
100 BASE-T1 2B Minus
7
100 BASE-T1 2A Plus
2
100 BASE-T1 2B Plus
8
100 BASE-T1 2A Minus
3
n.c.
9
n.c.
4
n.c.
10
n.c.
5
100 BASE-T1 1A Minus
11
100 BASE-T1 1B Plus
6
100 BASE-T1 1A Plus
12
100 BASE-T1 1B Minus
Table 2-4: Pinning of Tyco MQS Connector left
Pin
Function
Pin
Function
1
100 BASE-T1 4B Minus
7
100 BASE-T1 4A Plus
2
100 BASE-T1 4B Plus
8
100 BASE-T1 4A Minus
3
n.c.
9
n.c.
4
n.c.
10
n.c.
5
100 BASE-T1 3A Minus
11
100 BASE-T1 3B Plus
6
100 BASE-T1 3A Plus
12
100 BASE-T1 3B Minus
Table 2-5: Pinning of Tyco MQS Connector middle
