4.4.4 WakeUp Lines and Actuator

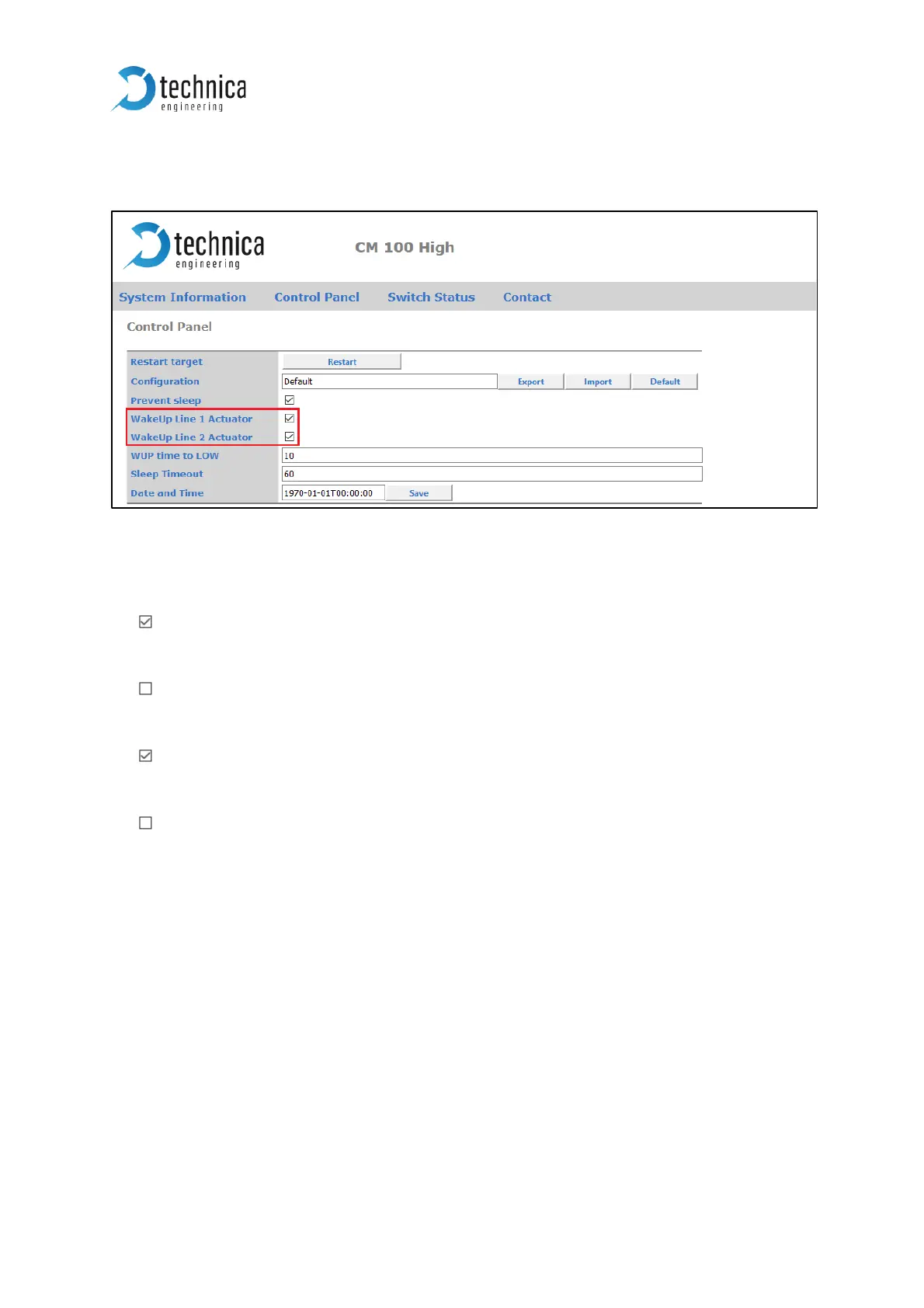

Figure 4-10: WakeUp lines
There are two WakeUp Lines. Both WakeUp lines can be input and output.
WakeUp Line 1 Actuator: If this box is checked, this wakeup line provides the
same voltage as the voltage on WakeUp line 2. (kind of loop through). But it
provides only if there is no input.
WakeUp Line 1 Actuator: If this box is unchecked, this wakeup line is only input
and wakes up the device when supplied.
WakeUp Line 2 Actuator: If this box is checked, this wakeup line provides the
same voltage as the voltage on WakeUp Line 1. (kind of loop through). But it
provides only power if there is no input.
WakeUp Line 2 Actuator: If this box is unchecked, this wakeup line is only input
and wakes up the device when supplied.
