4.5.2 Host Port
This is the 100BASE-T1 Port in MQS-Connector on the frontside of the device.

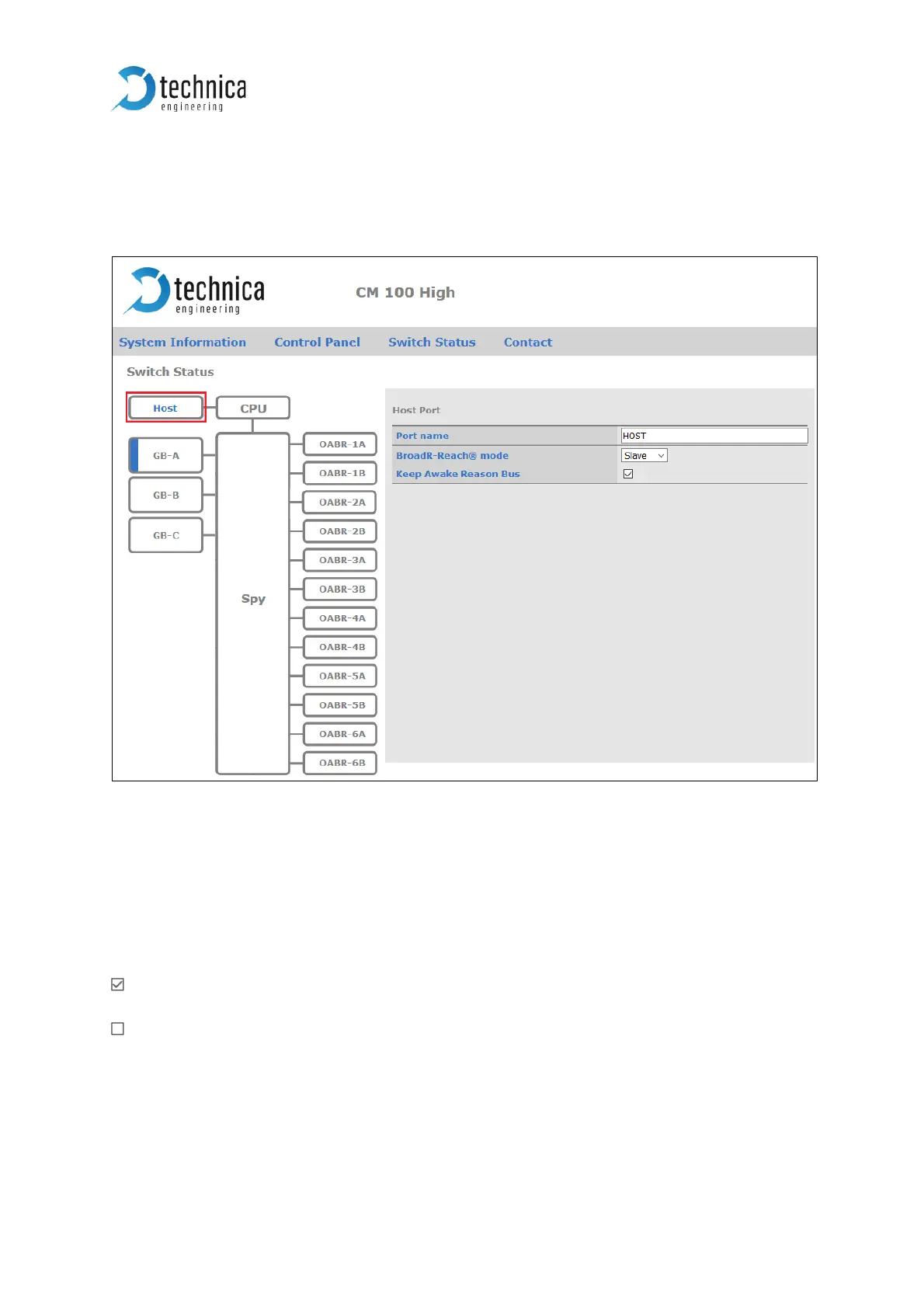

Figure 4-19: Host Port
Port name: Port name can be changed here
BroadR-Reach® mode: You can change here the Master/Slave Configuration of Host
Port
Keep Awake Reason Bus:
This port is supervised. If on this port is communication, CM_100_High can’t go
asleep.
This port is not supervised. The Capture Module can fall asleep even there is
communication on this port.
