CM 100 High User Manual
43
be sent to the „Time-aware system i+1“. In the new generated packets, a field called
correction field” will be changed and this parameter will be used on reception side to
adjust the reference time of the system considering the delay of the switch and the
delay in the path „Time-aware system i-1“ to „Time-aware system i“.
4.6.2 Propagation delay measurement
For the correction adjust of the time reference transmitted by the Sync and Follow Up
Packets, the delay between the initiator of the protocol „Time-aware system i-1“ and
the first slave port of CaptureModule „Time-aware system i“, should be measured

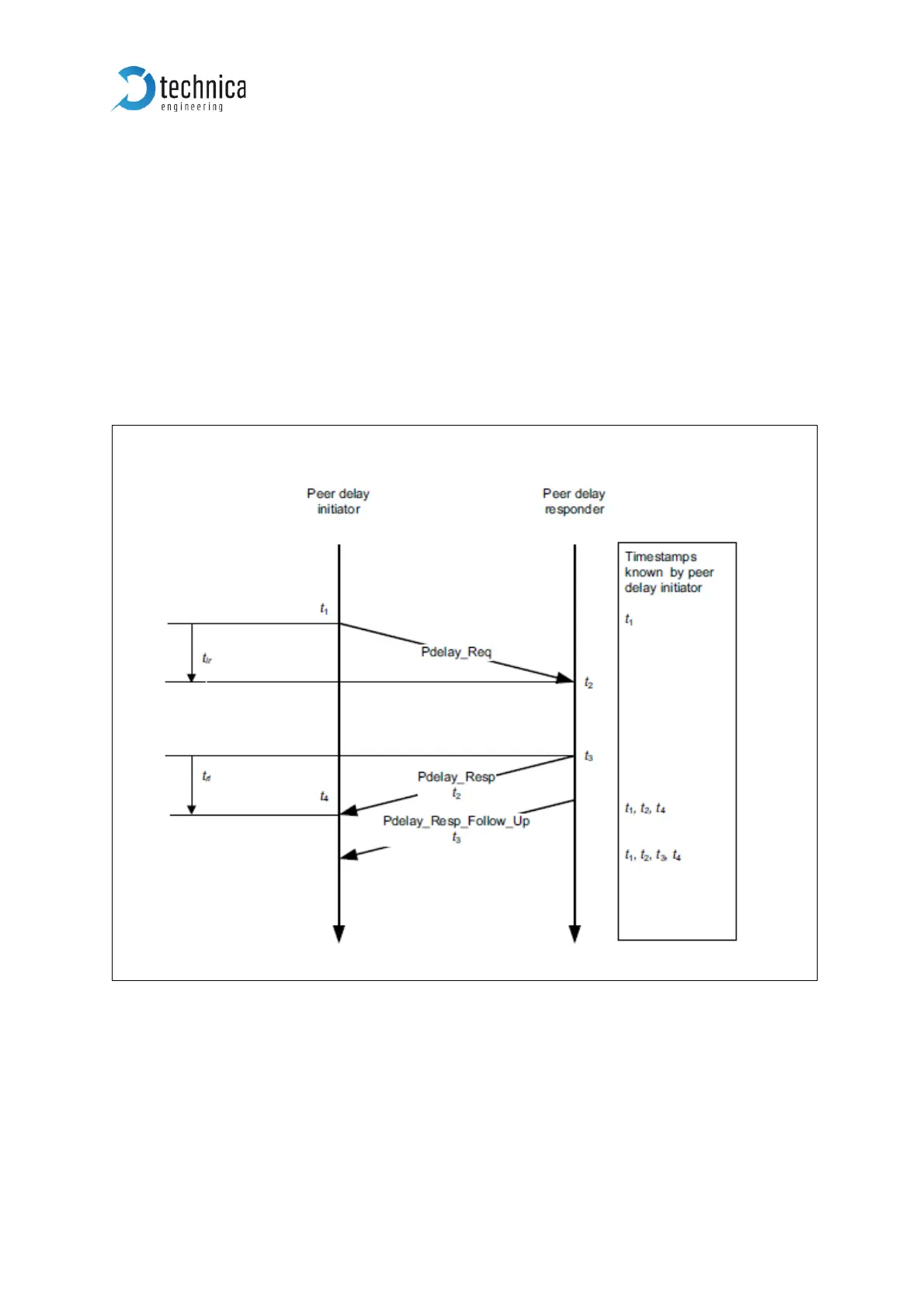

Figure 4-23: P-Delay
The measures of the propagation delay are performed by each attached link of an
802.1as communication, it means each side of the link will generate and response to
these packets, called:
Pdelay_Request,
Pdelay_Response and
