CM 100 High User Manual
5
1 GENERAL INFORMATION
1.1 Functionality and Features of the CM_100_High

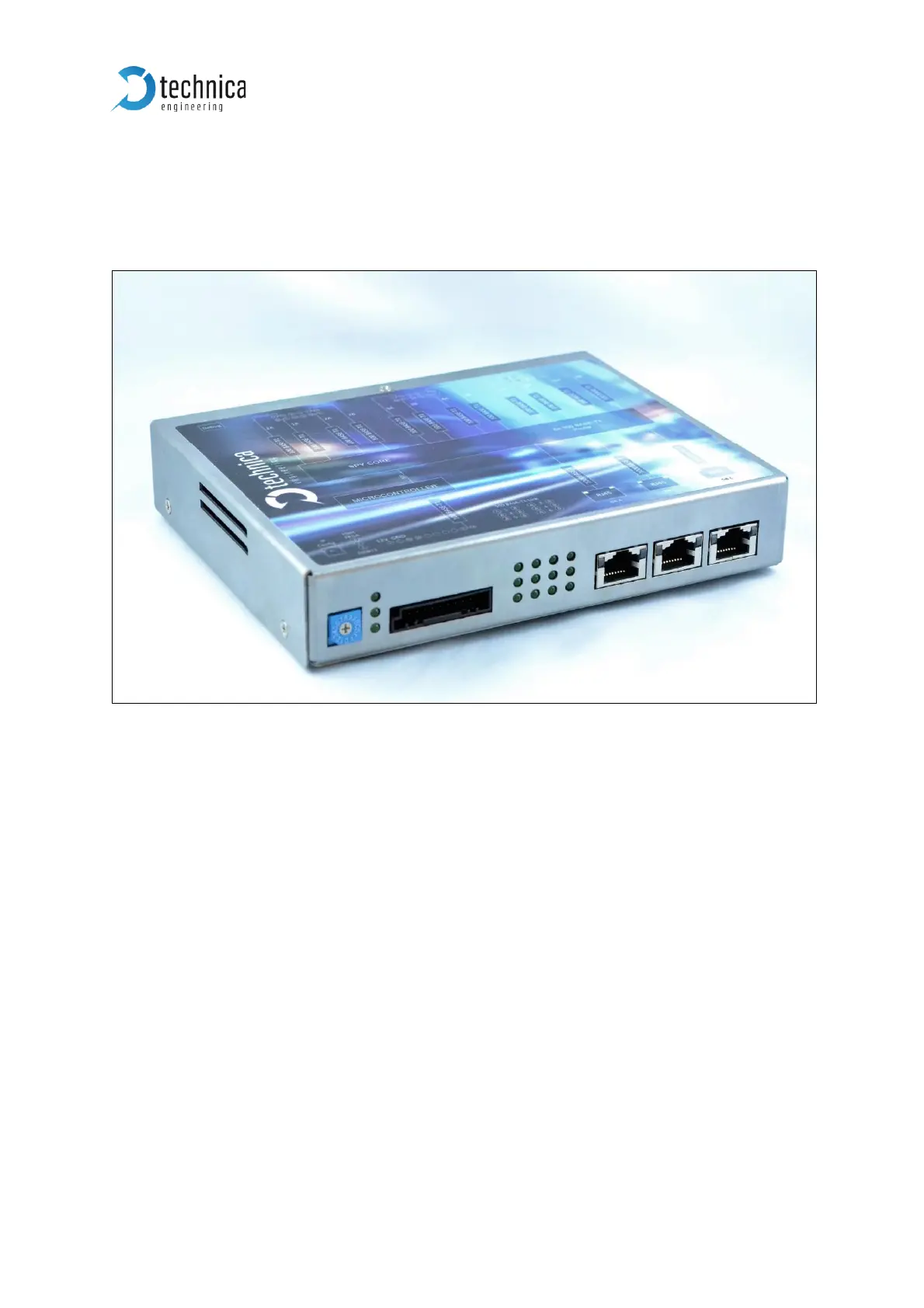

Figure 1-1: Chapture_Module_100_High
The Technica Engineering Capture_Module_100_High from Technica Engineering
GmbH is used to capture the traffic from 1 x 1000BASE-T1 line (between two DUTs)
and 2 x 100BASE-T1 lines, correspondingly. The traffic is captured without causing
interference on the network and delivered with a 40 ns resolution hardware time stamp,
thus making the analysis of AVB/TSN traffic possible.
Several devices can be used on the same setup, whenever more T1 ports are needed,
and when other IVN technologies are present, the in-built-synchronization using
802.1AS allows for simultaneous use with the other “IVN2Eth Capture Modules”.
