4.5 Switch Status tab

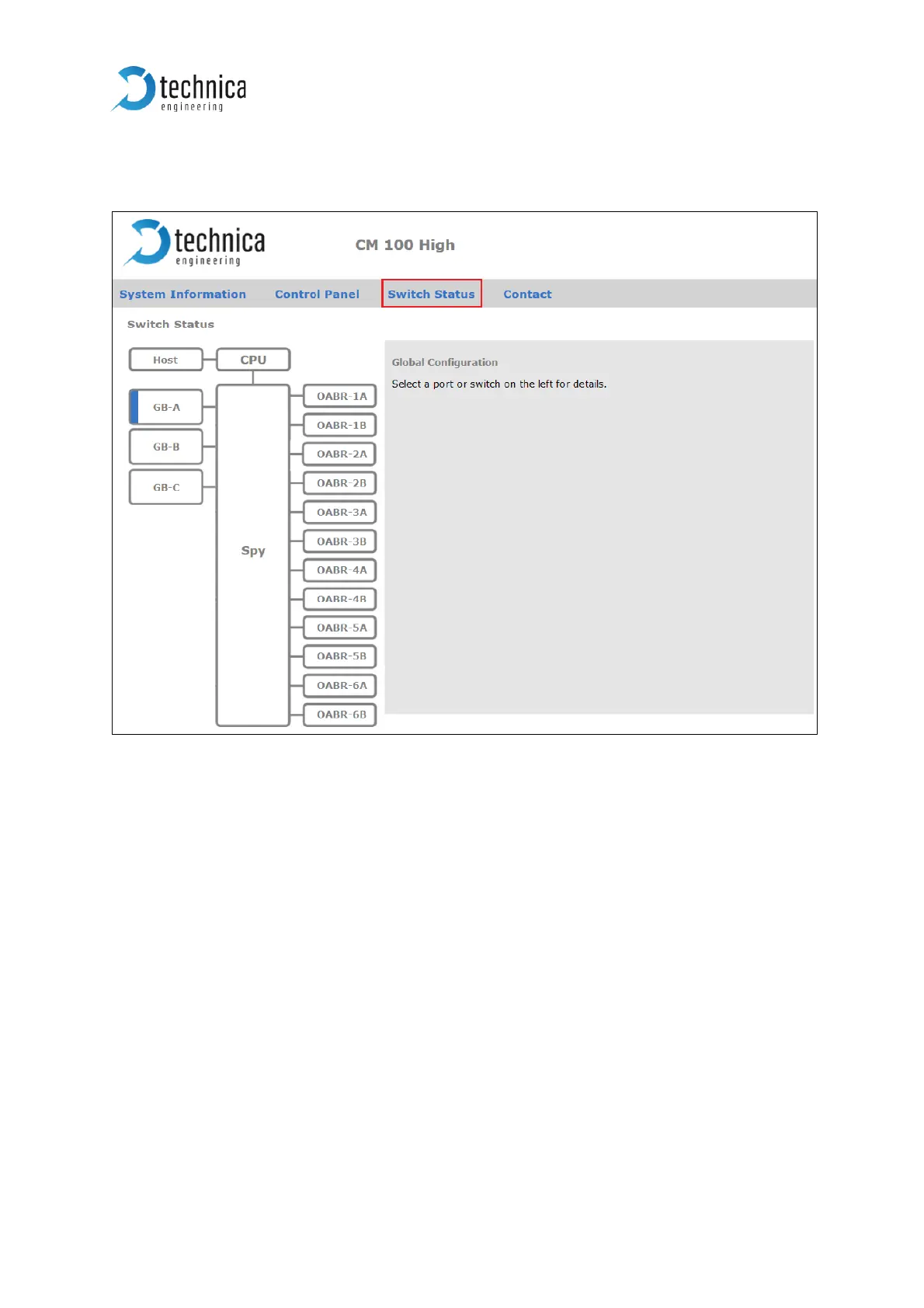

Figure 4-14: Switch Status tab
This is an overview of all ports. A blue bar indicates the linkup status on this port. If
you select a port or any other part of the CM_100_High, it is shown by blue text of the
selected part.
