CM 100 High User Manual
45
Doing: Navigate to rule number by the buttons and press button
press the button select the Port BR1B select the action Drop select the
open bracket choose in Field Outer VLAN press the button type the Value
123” and press ENTER select the close bracket press the button select the
open bracket choose in Field IP-Msg Dest IPv4 press the button type the
value 160.48.199.125 and press ENTER select the close bracket press the button
save the changes. finished
4.8 Inject
If you want to get access to a DUT on the 100BASE-T1 port by a device on the logging
port, a few preconditions are necessary:
Only one device can inject on one GB Port
For the Inject, the DUT on the 100BASE-T1 port has to be connected directly on
the 100BASE-T1 port, no switches in between.
Traffic can be injected only to one DUT per 100BASE-T1 port.
The communication between device and DUT must be an IP-based protocol
The following example shows how to configure the CaptureModule for inject:
The test setup of the example is shown in the
FIGURE 4-25:
The PC has the IP 160.48.199.125.
The DUT_2 has the IP 160.48.199.55.
We want to establish a TCP connection
between PC an DUT_2.
The Communication between all devices has
innerVLAN-tag.
The GB-A-Port is configured as follows:
The important point here is the field IP for
Injection. Here must be the IP-Address of the
injecting device.
Also Working as DLT-port must be activated.

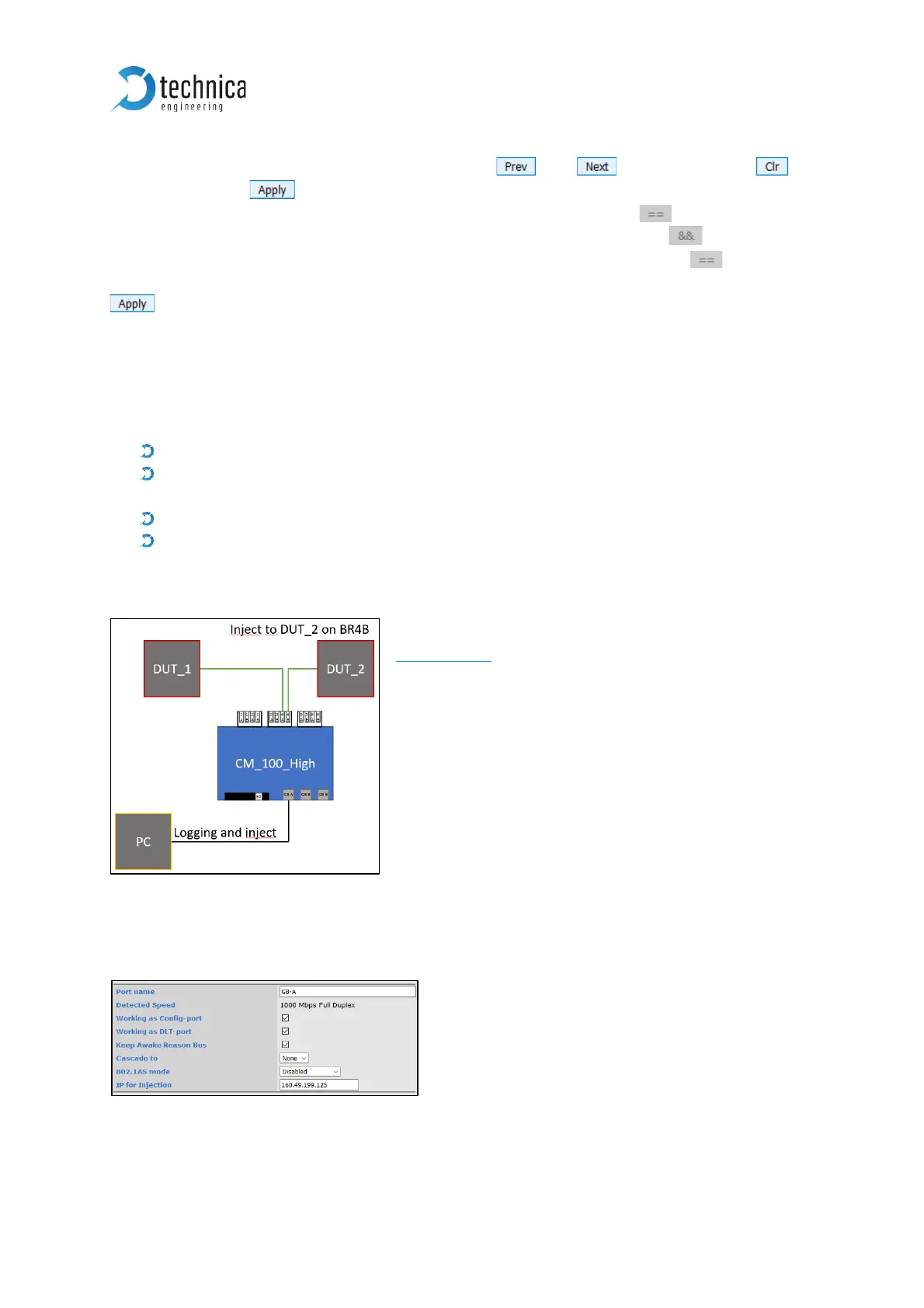

Figure 4-25: Example test setup for inject
Figure 4-26: Example for IP Injection
