46

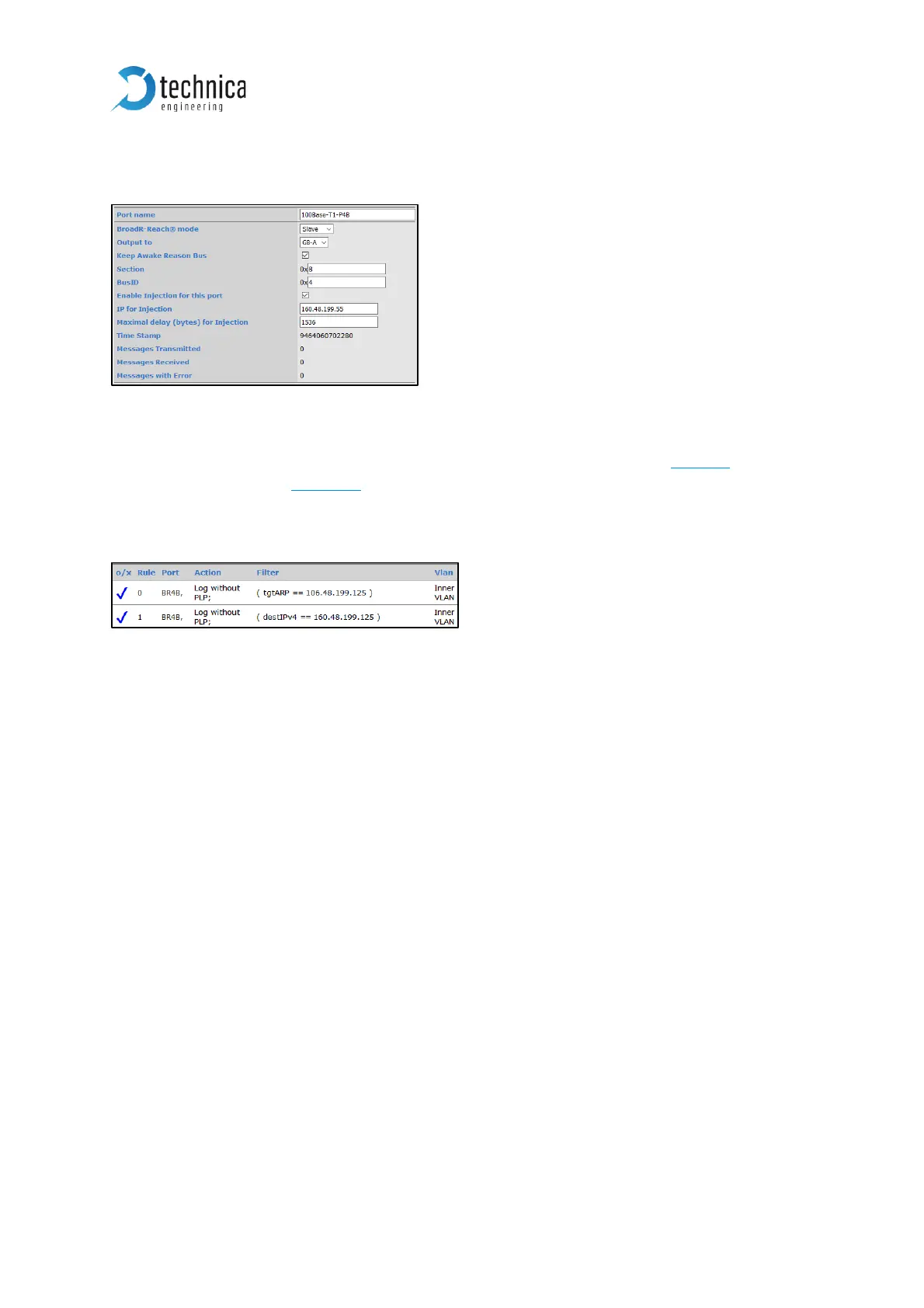

The BR4B-port is configured as follows:
Here, the important point is the field IP for
Injection. It must be the IP-Address of the
DUT_2. Of course the Box Enable Injection for
this port must be checked and the Maximal
delay (bytes) for Injection must be filled out
(512, 1024 or max. 1536).
If you have enabled the PLP Header for logging ports (see CHAPTER 4.5.1.1) a filter is
needed (see CHAPTER 4.5.1.11):
For this example, the filter looks like this:
The Filter must remove the PLP-header, if
the used protocol is bidirectional like for
example TCP.
Figure 4-28: Filter of our example for IP
Injection
Figure 4-27: Example for IP Injection
