5.2 Update via GB-A Port
1. Make sure your networkadapter is configured with an IP-
address in the same range as the HW-IP address of the
CaptureModule (10.104.3.96)
2. Apply “0” to the rotary switch
3. Power up the device
4. Connect a Windows PC with a RJ45 cable directly
to the GB-A-Port of the CM_100_High and make sure
there is a link by checking the LEDs blinking. Do not
connect a switch in between.
5. Start “Flash ALL_10.104.3.96.bat” from the same
folder as the firmware files are stored.
6. Wait until “Press any key ...“ appears in cmd-window.
7. Press any key
8. Do a power reset
9. Check the Host-LED if blinking in normal mode.
10. YES => Please check the version on webserver the System Information tab by
browser
NO => redo from point 4.
➔ Finished

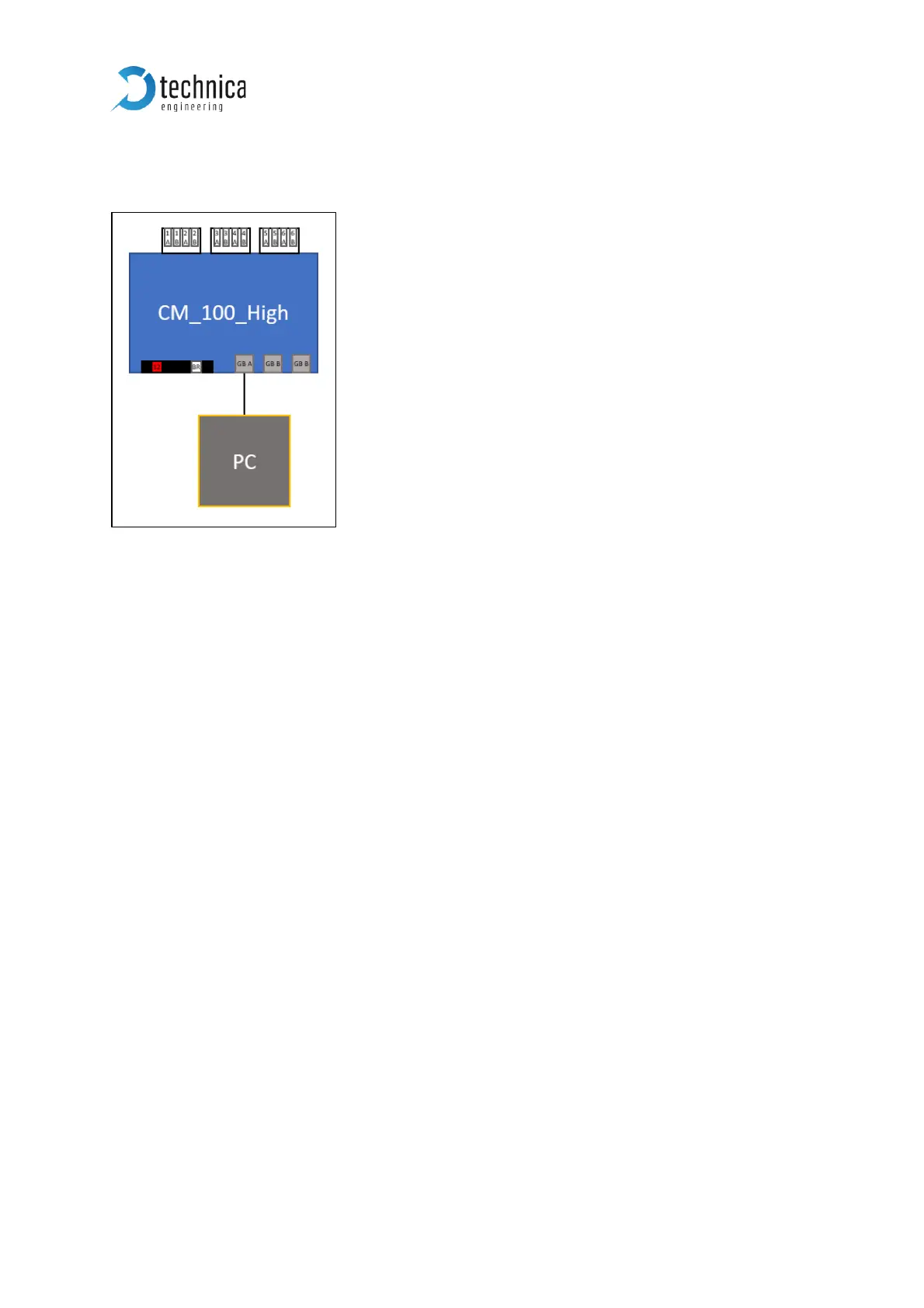

Figure 5-1: Update on GB-Port
