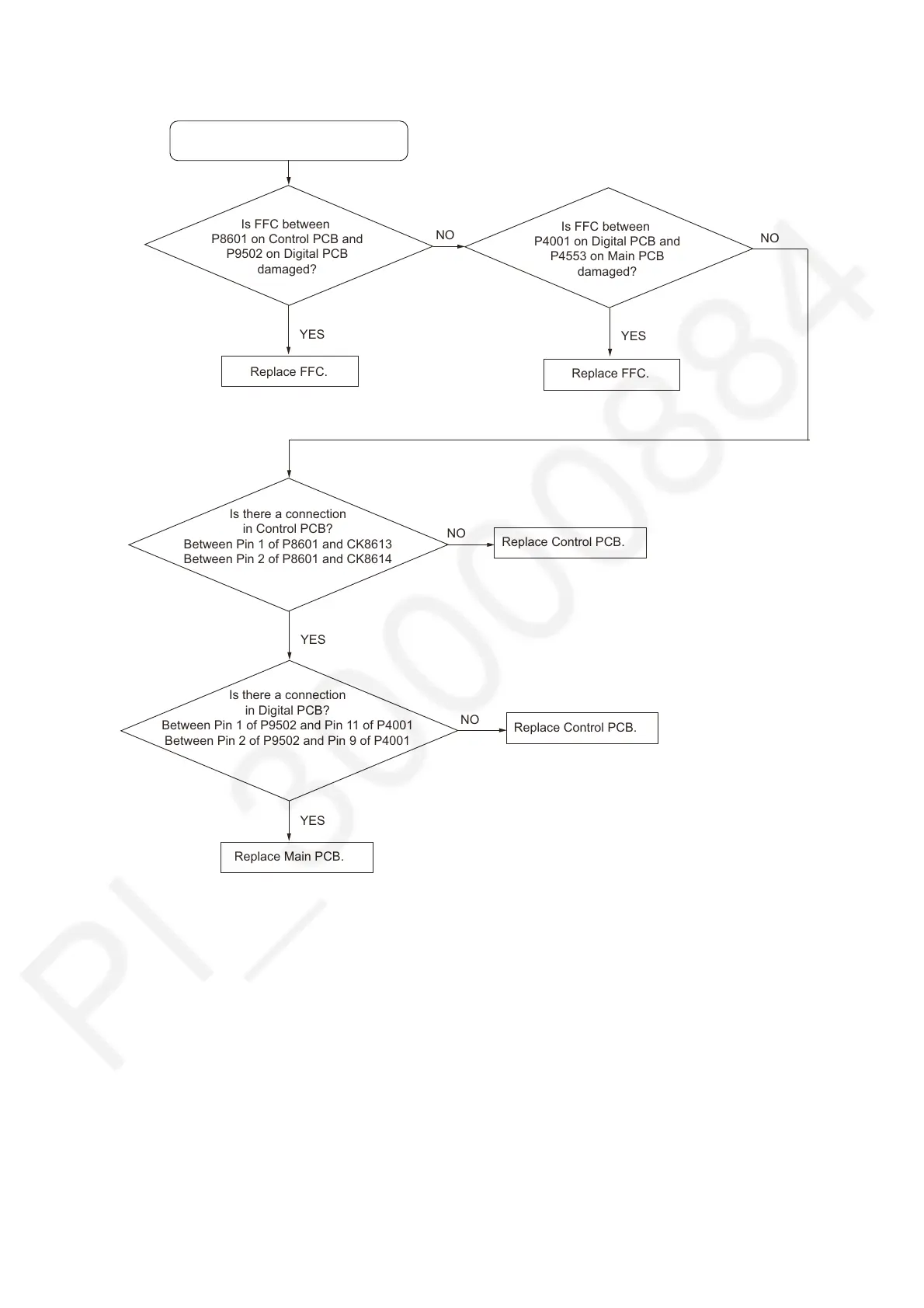

7.16. No System Control (Control Terminal)
No System Control
YES
NO
Is FFC between
P8601 on Control PCB and
P9502 on Digital PCB
damaged?
Replace Control PCB.
Replace FFC.
Is FFC between
P4001 on Digital PCB and
P4553 on Main PCB
damaged?
YES
Replace FFC.
NO
Is there a connection
in Control PCB?
Between Pin 1 of P8601 and CK8613
Between Pin 2 of P8601 and CK8614
NO
YES
Replace Control PCB.
Is there a connection
in Digital PCB?
Between Pin 1 of P9502 and Pin 11 of P4001
Between Pin 2 of P9502 and Pin 9 of P4001
NO
YES
Replace Main PCB.
