5
1.3. Protection Circuitry
The protection circuitry may have operated if either of the following conditions are noticed:
• No sound is heard when the power is turned on.
• Sound stops during a performance.
The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are
“shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.
If this occurs, follow the procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once again after one minute.
Note:
When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again.

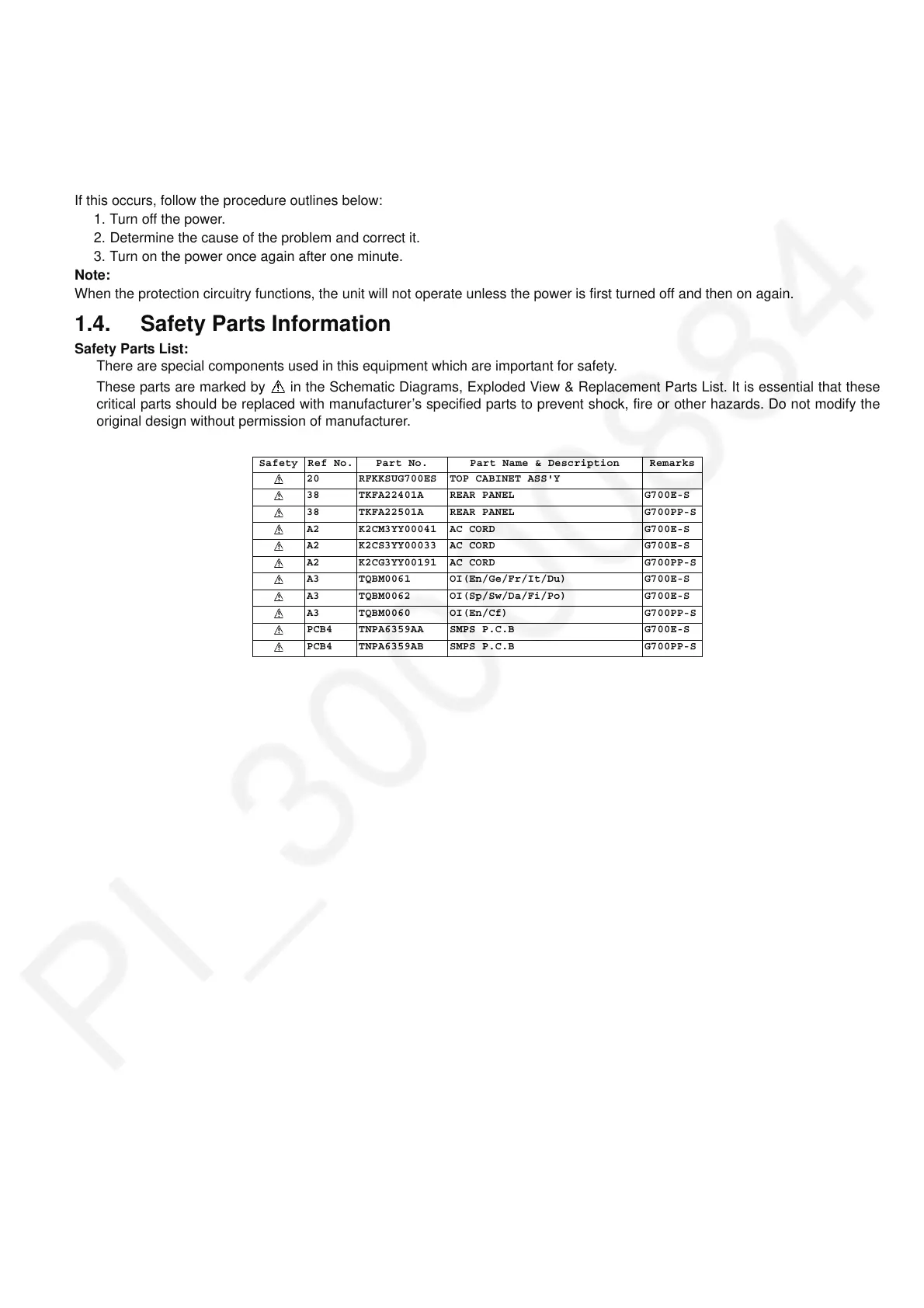

1.4. Safety Parts Information
Safety Parts List:
There are special components used in this equipment which are important for safety.
These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these
critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the
original design without permission of manufacturer.
Safety Ref No. Part No. Part Name & Description Remarks
20 RFKKSUG700ES TOP CABINET ASS'Y
38 TKFA22401A REAR PANEL G700E-S
38 TKFA22501A REAR PANEL G700PP-S
A2 K2CM3YY00041 AC CORD G700E-S
A2 K2CS3YY00033 AC CORD G700E-S
A2 K2CG3YY00191 AC CORD G700PP-S
A3 TQBM0061 OI(En/Ge/Fr/It/Du) G700E-S
A3 TQBM0062 OI(Sp/Sw/Da/Fi/Po) G700E-S
A3 TQBM0060 OI(En/Cf) G700PP-S
PCB4 TNPA6359AA SMPS P.C.B G700E-S
PCB4 TNPA6359AB SMPS P.C.B G700PP-S
To Next Page
