Technics SU-G700E - 8.4 Disassembly of Top Cabinet Assy; 8.5 Disassembly of SMPS P.C.В.

40

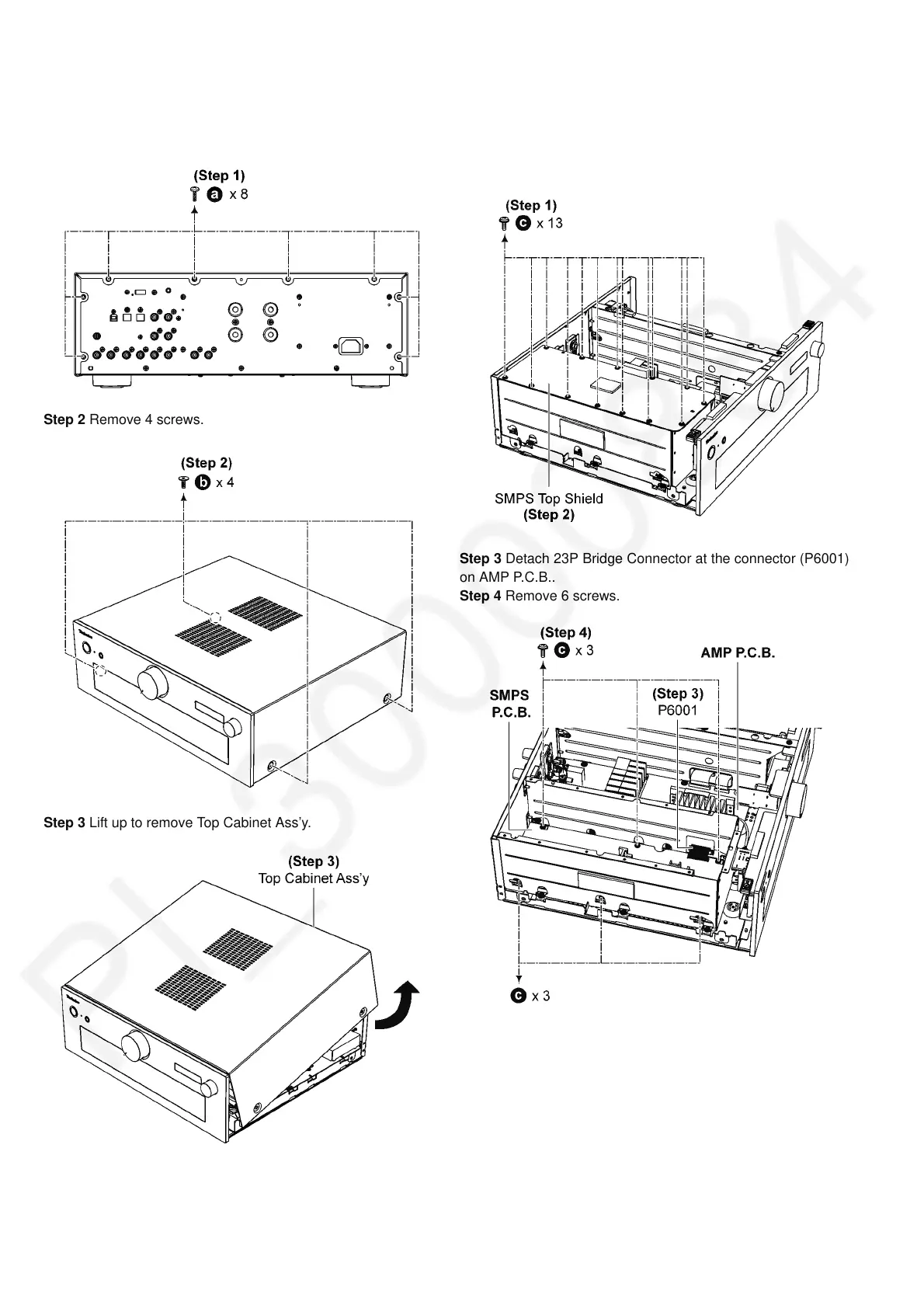

8.4. Disassembly of Top Cabinet
Ass’y
Step 1 Remove 8 screws.
Step 2 Remove 4 screws.
Step 3 Lift up to remove Top Cabinet Ass’y.
8.5. Disassembly of SMPS P.C.B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
Step 1 Remove 13 screws.
Step 2 Remove SMPS Top Shield.
Step 3 Detach 23P Bridge Connector at the connector (P6001)
on AMP P.C.B..
Step 4 Remove 6 screws.
