43
Step 3 Detach 8P Cable at the connector (P8601) on Control
P.C .B..
Step 4 Remove Control P.C.B..

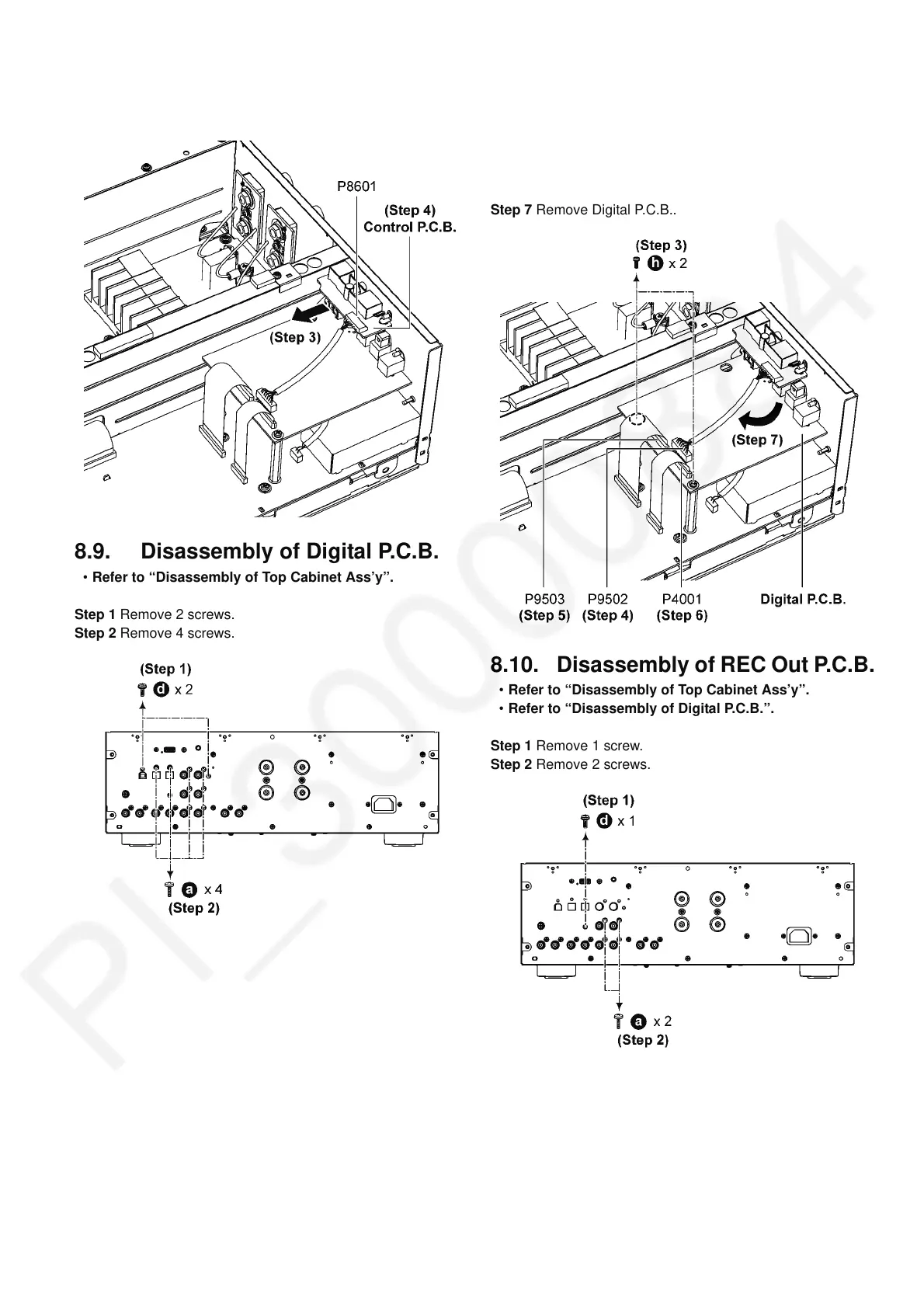

8.9. Disassembly of Digital P.C.B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
Step 1 Remove 2 screws.
Step 2 Remove 4 screws.
Step 3 Remove 2 screws.
Step 4 Detach 8P Cable at the connector (P9502) on Digital
P. C .B ..
Step 5 Detach 30P FFC at the connector (P9503) on Digital
P. C .B ..
Step 6 Detach 15P FFC at the connector (P4001) on Digital
P. C .B ..
Step 7 Remove Digital P.C.B..
8.10. Disassembly of REC Out P.C.B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
• Refer to “Disassembly of Digital P.C.B.”.
Step 1 Remove 1 screw.
Step 2 Remove 2 screws.
To Next Page
