41

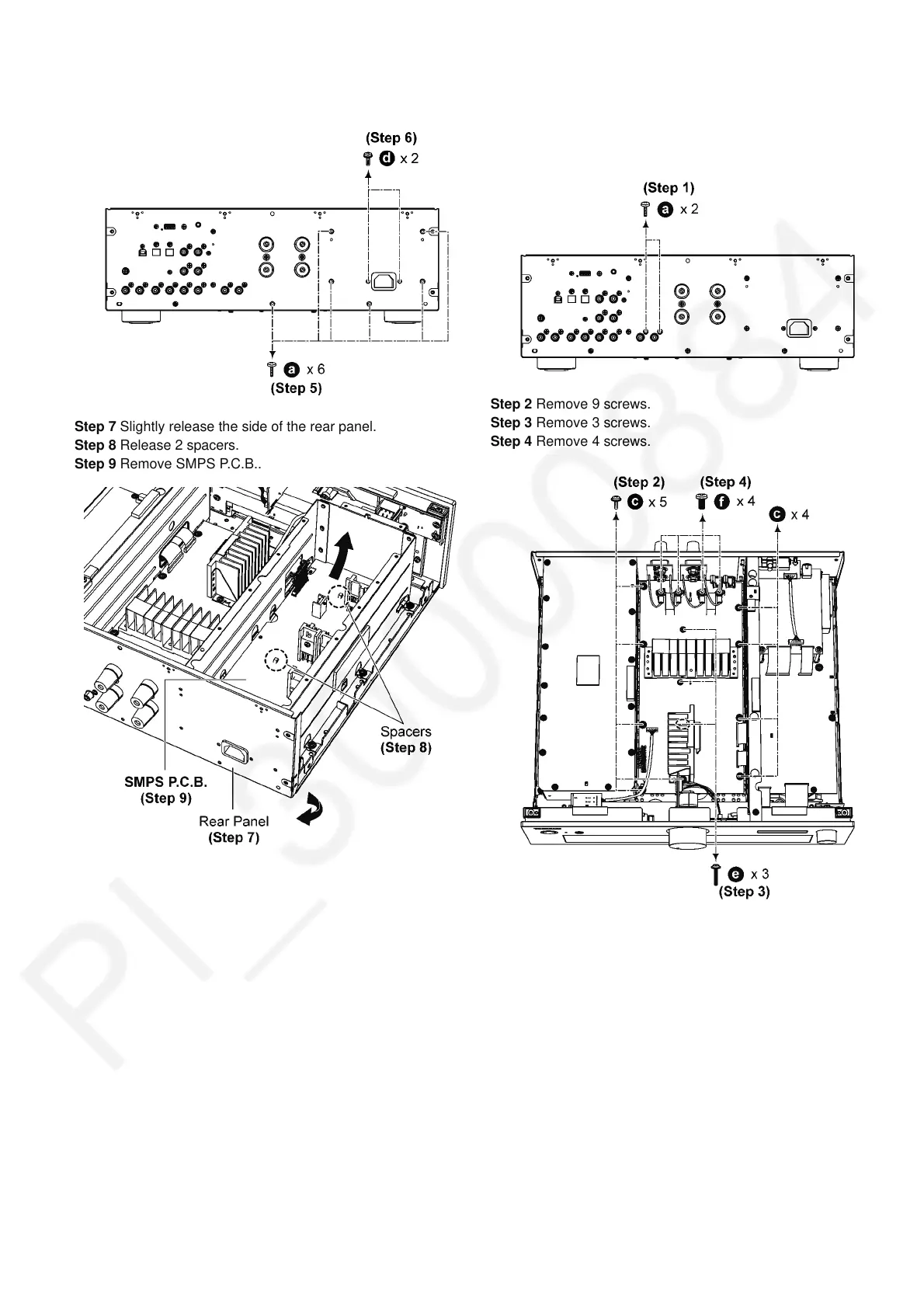

Step 5 Remove 6 screws.
Step 6 Remove 2 screws.
Step 7 Slightly release the side of the rear panel.
Step 8 Release 2 spacers.
Step 9 Remove SMPS P.C.B..
8.6. Disassembly of AMP P.C.B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
Step 1 Remove 2 screws.
Step 2 Remove 9 screws.
Step 3 Remove 3 screws.
Step 4 Remove 4 screws.
