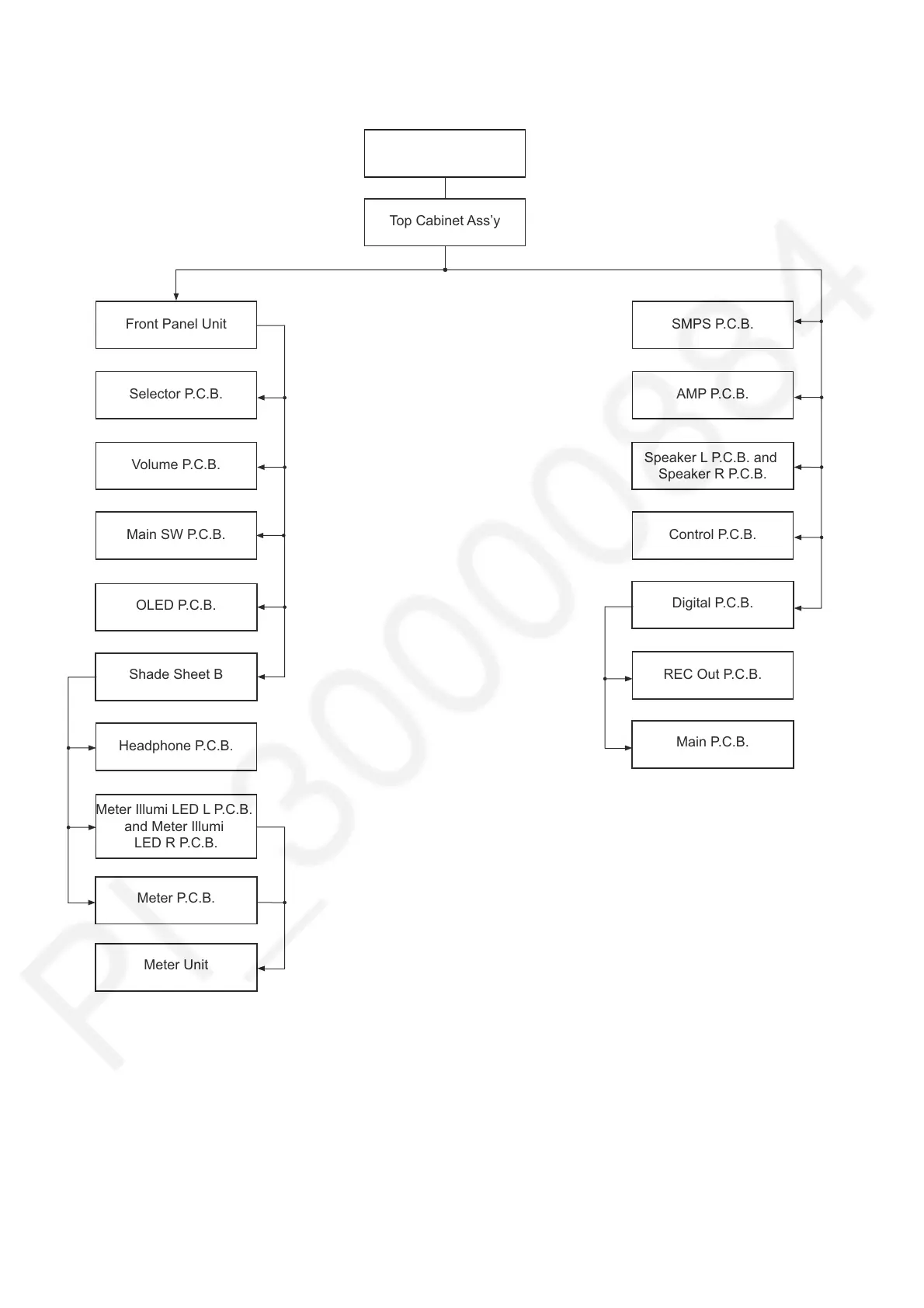

8.2. Disassembly Flow Chart
Main Unit
Top Cabinet Ass’y
Front Panel Unit
Selector P.C.B.
Volume P.C.B.
Main SW P.C.B.
Headphone P.C.B.
Meter Illumi LED L P.C.B.
and Meter Illumi
LED R P.C.B.
Meter P.C.B.
OLED P.C.B.
Shade Sheet B
Meter Unit
AMP P.C.B.
Control P.C.B.
Digital P.C.B.
SMPS P.C.B.
REC Out P.C.B.
Main P.C.B.
Speaker L P.C.B. and
Speaker R P.C.B.

Technics SU-G700E Specifications

General

Brand	Technics
Model	SU-G700E
Category	Amplifier
Language	English
