Step 3 Detach 4P Cable at the connector (P2801) on REC Out
P.C .B..
Step 4 Remove REC Out P.C.B..

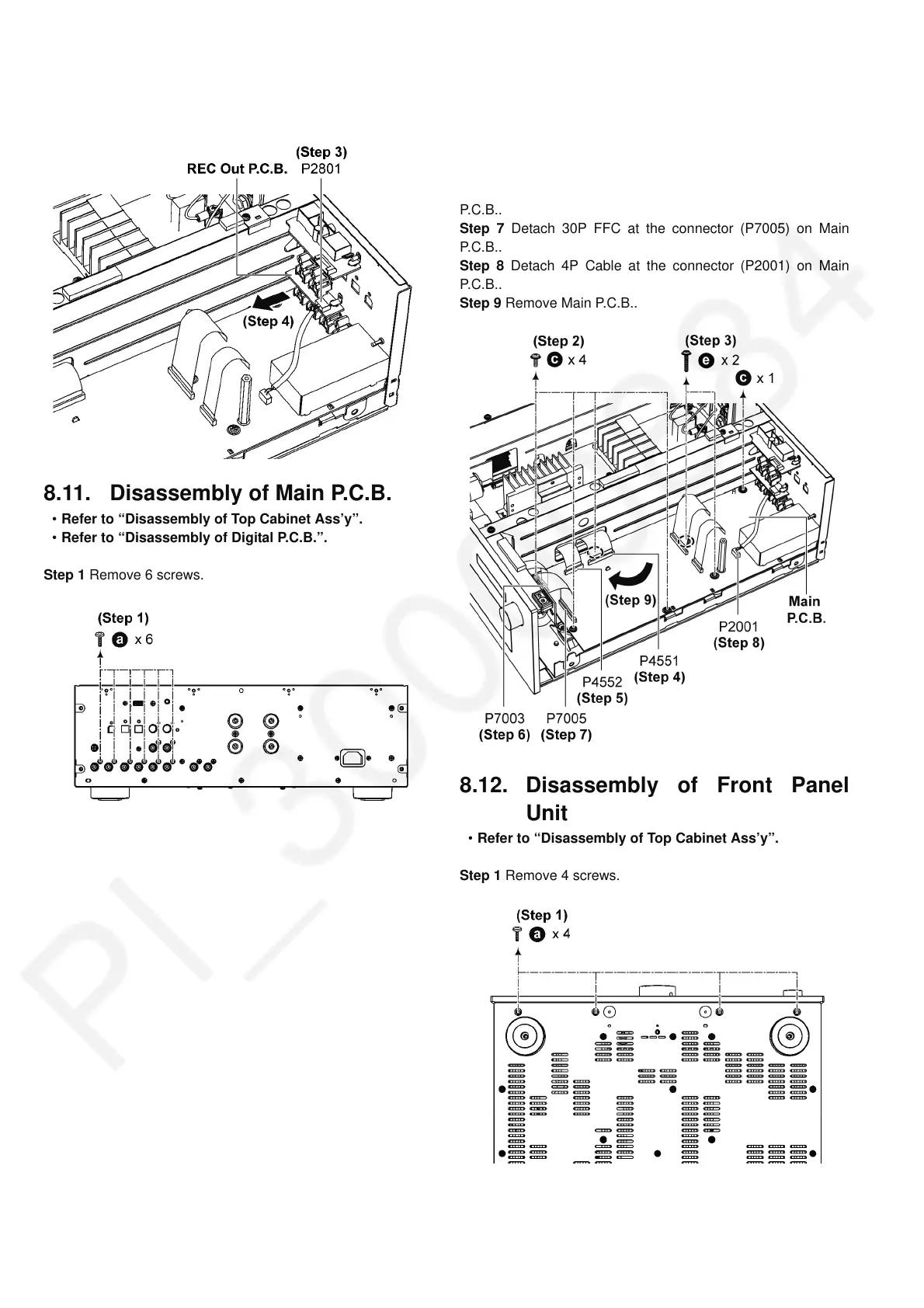

8.11. Disassembly of Main P.C.B.
• Refer to “Disassembly of Top Cabinet Ass’y”.
• Refer to “Disassembly of Digital P.C.B.”.
Step 1 Remove 6 screws.
Step 2 Remove 5 screws.
Step 3 Remove 2 screws.
Step 4 Detach 30P FFC at the connector (P4551) on Main
P.C .B..
Step 5 Detach 40P FFC at the connector (P4552) on Main
P.C .B..
Step 6 Detach 14P FFC at the connector (P7003) on Main
P.C .B..
Step 7 Detach 30P FFC at the connector (P7005) on Main
P.C .B..
Step 8 Detach 4P Cable at the connector (P2001) on Main
P.C .B..
Step 9 Remove Main P.C.B..
8.12. Disassembly of Front Panel
Unit
• Refer to “Disassembly of Top Cabinet Ass’y”.
Step 1 Remove 4 screws.
To Next Page
