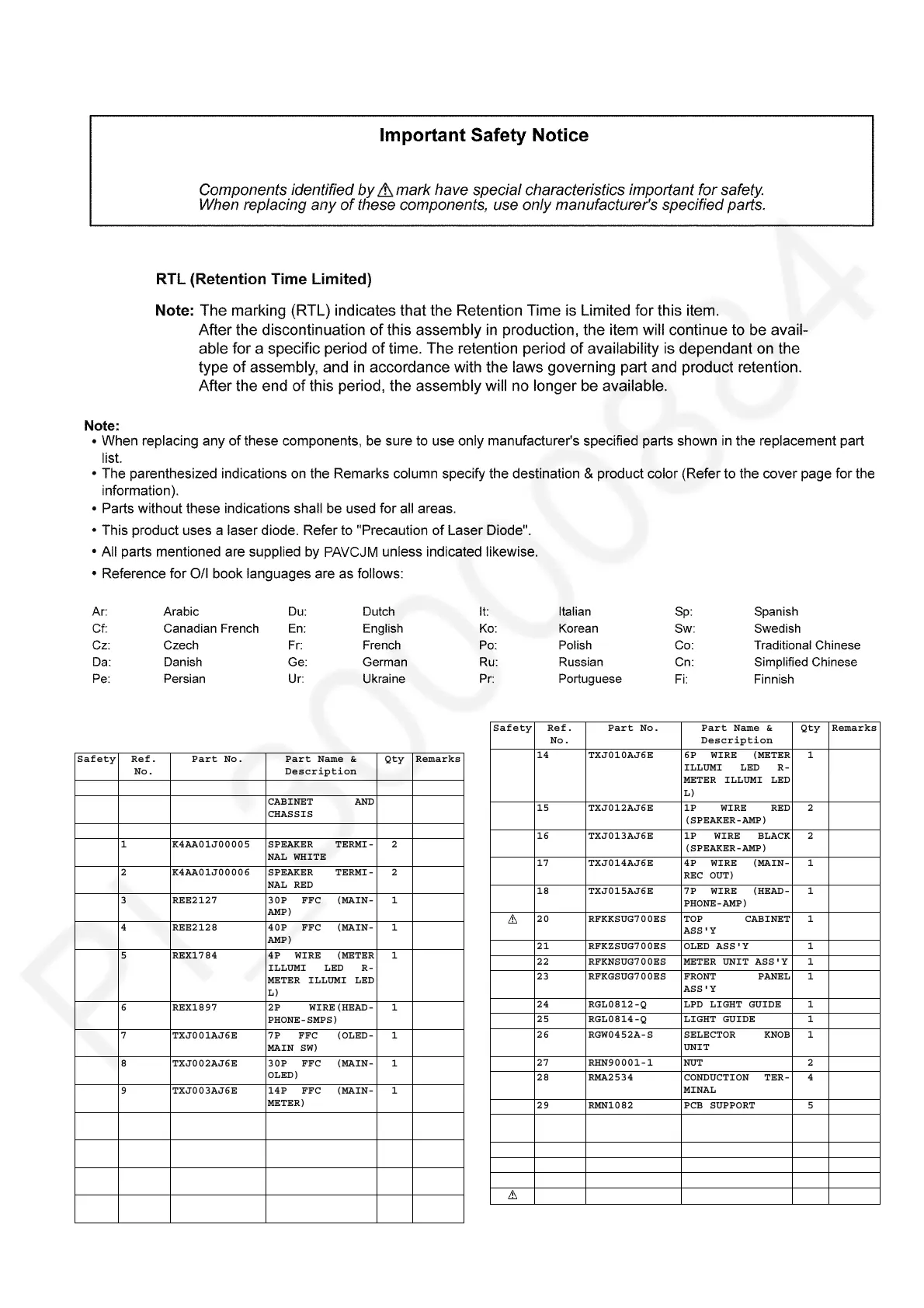

13.5. Mechanical Replacement Part List
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 K4AA01J00005 SPEAKER TERMI-
NAL WHITE
2
2 K4AA01J00006 SPEAKER TERMI-
NAL RED
2
3 REE2127 30P FFC (MAIN-
AMP)
1
4 REE2128 40P FFC (MAIN-
AMP)
1
5 REX1784 4P WIRE (METER
ILLUMI LED R-
METER ILLUMI LED
L)
1
6 REX1897 2P WIRE(HEAD-
PHONE-SMPS)
1
7 TXJ001AJ6E 7P FFC (OLED-
MAIN SW)
1
8 TXJ002AJ6E 30P FFC (MAIN-
OLED)
1
9 TXJ003AJ6E 14P FFC (MAIN-
METER)
1
10 TXJ006AJ6E 30P FFC (MAIN-
DIGITAL)
1
11 TXJ007AJ6E 15P FFC (MAIN-
DIGITAL)
1
12 TXJ008AJ6E 6P FFC (OLED-
SELECTOR)
1
13 TXJ009AJ6E 8P WIRE (CON-
TROL-DIGITAL )
1
14 TXJ010AJ6E 6P WIRE (METER
ILLUMI LED R-
METER ILLUMI LED
L)
1
15 TXJ012AJ6E 1P WIRE RED
(SPEAKER-AMP)
2
16 TXJ013AJ6E 1P WIRE BLACK
(SPEAKER-AMP)
2
17 TXJ014AJ6E 4P WIRE (MAIN-
REC OUT)
1
18 TXJ015AJ6E 7P WIRE (HEAD-
PHONE-AMP)
1
20 RFKKSUG700ES TOP CABINET
ASS'Y
1
21 RFKZSUG700ES OLED ASS'Y 1
22 RFKNSUG700ES METER UNIT ASS'Y 1
23 RFKGSUG700ES FRONT PANEL
ASS'Y
1
24 RGL0812-Q LPD LIGHT GUIDE 1
25 RGL0814-Q LIGHT GUIDE 1
26 RGW0452A-S SELECTOR KNOB
UNIT
1
27 RHN90001-1 NUT 2
28 RMA2534 CONDUCTION TER-
MINAL
4
29 RMN1082 PCB SUPPORT 5
33 RMR2182-K SPEAKER TERMI-
NAL HOLDER
2
34 RMX0536 LPD SHEET 1
36 TBXA60901 VOLUME KNOB 1
37 THNA037J NUT 4
38 TKFA22401A REAR PANEL 1 G700E-S
Safety Ref.
No.
Part No. Part Name &
Description
Qty Remarks
